38051 (522) - Toro 22" Snow Thrower (SN: 210000001 - 210999999) (2001) Engine Tecumseh Model Hssk50-67401s (continued) Parts Diagram

22" Snow Thrower

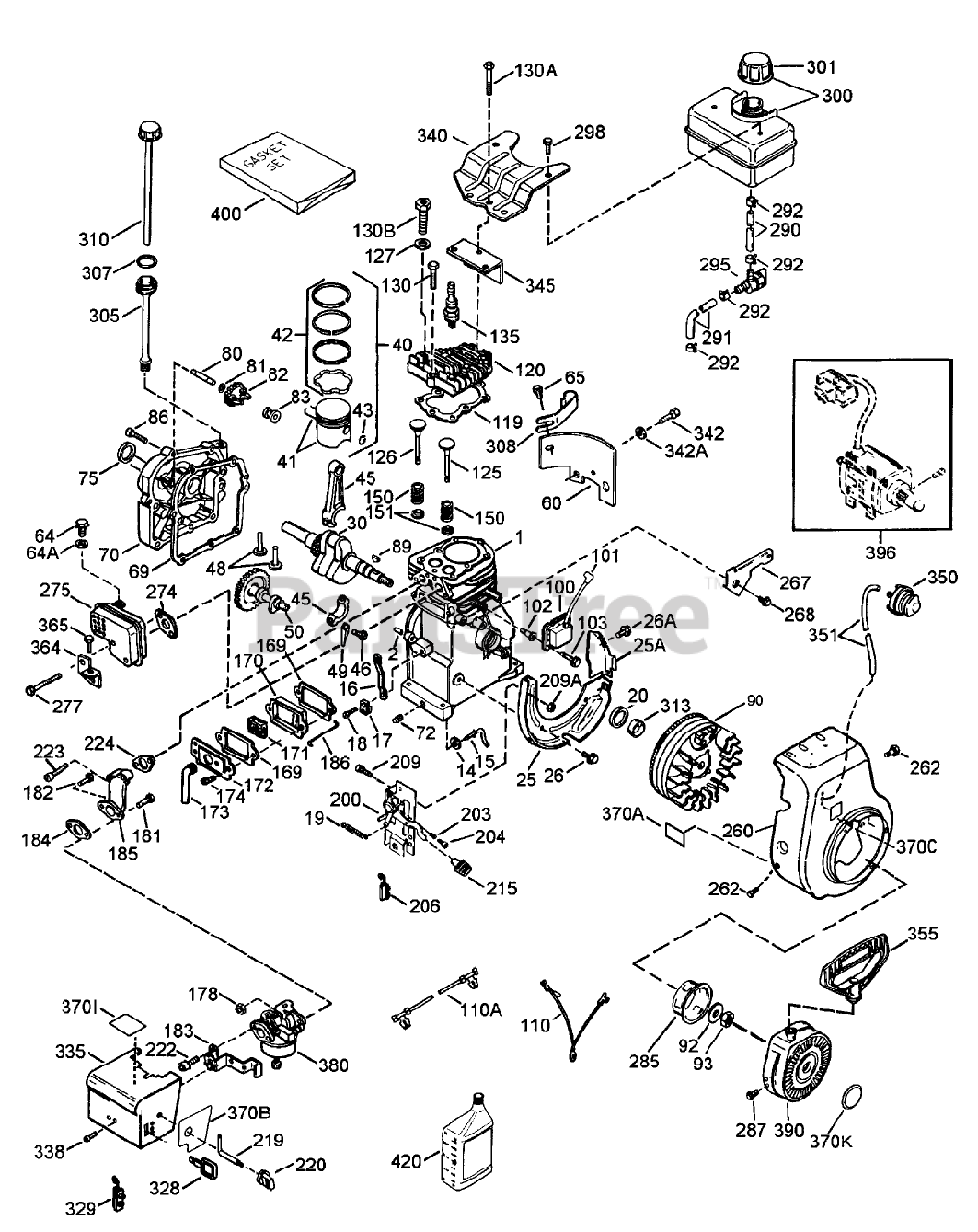

Engine Tecumseh Model Hssk50-67401s (continued) Parts Diagram

  • Title

1

Toro 36469A

Cylinder Assembly (Incl. Ref. #2, 20, 72

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

14

Toro 28277

Washer-Flat

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

15

Toro 31334

Rod-Governor
(Superseded to 742339)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

16

Toro 31510

Lever-Governor

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

17

Toro 31335

Clamp-Lever, Governor

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

18

Toro 651018

Screw (T-15, 8-32 x 19/64)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

19

Toro 31426

Spring-Extension

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

20

Toro 32600

Seal-Oil

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

25

Toro 36552

Baffle-Housing, Blower

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

25A

Toro 35883

Extension-Baffle

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

26

Toro 650802

Screw (1/2-20x5/8)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

26A

Toro 650926

Screw (8-32 x 21/64)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

30

Toro 34740

Crankshaft ASM

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

40

Toro 36073

Set-Piston, Pin Ring (Std)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

Toro 36074

Piston, Pin Ring Set (.010" OS)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

Toro 36075

Piston, Pin and Ring Set (.020 O S)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

41

Toro 36070

Piston Pin Ass-y.(Std.)(Incl. 43)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

Toro 36071

Piston Pin Ass-y.(.010 OS)(Incl.43)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

Toro 36072

Piston Pin Assembly .020" oversize (Incl. Ref. #43)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

42

Toro 36076

Ring Set (STD)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

Toro 36077

51105/51105Z GIL RO

Note: Note: Order individual parts from your local Tecumseh dealer.

$3.23

$

Usually ships in 3-6 days

0

Toro 36078

Ring Set (.020 O S)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

43

Toro 20381

Ring-Retaining, Piston Pin

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

45

Toro 32875A

Connecting Rod Assembly (Incl. Ref. #46 49)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

46

Toro 32610A

Bolt-Rod, Connecting

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

48

Toro 27241

Lifter-Valve

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

49

Toro 32654

Dipper-Oil

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

50

Toro 33158

Camshaft

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

60

Toro 29745

Extension-Blower

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

64

Toro 30063

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

64A

Toro 8345

Washer

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

65

Toro 650128

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

69

Toro 27677A

Gasket-Cover, Cylinder

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

69

Toro 27677A

Gasket-Cover, Cylinder

Note: Indicated Parts included in Gasket Set Ref. Num 400

$

$

Currently unavailable

70

Toro 34674C

Cover-Cylinder (Incl. Ref. #75 80)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

72

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

75

Toro 27897

Seal-Oil

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

80

Toro 30574A

Shaft-Governor

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

81

Toro 30590A

Washer-Flat

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

82

Toro 30591

Governor Gear ASM

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

83

Toro 30588A

Spool-Governor

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

86

Toro 650488

Screw (1/4-20 x 1-1/4)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

89

Toro 610961

Key-Flywheel

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

90

Toro 611199

Flywheel

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

92

Toro 650815

Washer-Belleville

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

93

Toro 650816

Nut-Flywheel

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

100

Toro 34443B

Solid State Ignition (Incl. 101)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

101

Toro 610118

Cover-Spark Plug

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

102

Toro 651024

Stud-Mounting, Solid State

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

103

Toro 651007

Screw (T-15, 10-24 x 15/16)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

110

Toro 35182

Wire-Ground

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

110A

Toro 36874

Wire-Ground (Green, 5.5)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

119

Toro 36443

Gasket-Head, Cylinder

Note: Indicated Parts included in Gasket Set Ref. Num 400

$

$

Currently unavailable

119

Toro 36443

Gasket-Head, Cylinder

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

120

Toro 36441

Head-Cylinder (Incl. Ref. #131)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

125

Toro 36471

Exhaust Valve (Std.)(Incl. 151)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

Toro 36472

Valve-Exhaust (1/32 O S)
(Superseded to 742719)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

126

Toro 32644A

Valve-Intake Standard (Incl. Ref. #151)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

Toro 32645A

Valve-Intake 1/32" oversize (Incl. Ref. #151)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

127

Toro 650691

Washer-Flat

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

130

Toro 6021A

Screw (5/16-18x1-1/2)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

130A

Toro 650694A

Screw (5/16-18 X 2)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

130B

Toro 650818

Screw ( 5/16-18 x 1-1/2)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

135

Toro 35395

Spark Plug-Resistor (R J19 L M)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

150

Toro 31672

Spring-Valve

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

151

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

169

Toro 27234A

Gasket-Cover, Valve

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

169

Toro 27234A

Gasket-Cover, Valve

Note: Indicated Parts included in Gasket Set Ref. Num 400

$

$

Currently unavailable

170

Toro 27666

Body-Breather
(Superseded to 704563)

Note: Note: Order individual parts from your local Tecumseh dealer.

$179.99

$

Usually ships in 3-6 days

0

171

Toro 31410

Element-Breather

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

172

Toro 34146

Cover-Breather

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

173

Toro 35350

Tube-Breather

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

174

Toro 650783

Screw (10-24 x 3/4)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

178

Toro 29752

Nut and Lock Washer (1/4-28)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

181

Toro 650870

Screw (1/4-28 x 1-11/16)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

182

Toro 6201

See Supercession: 111-1250
(Superseded to 111-1250)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

183

Toro 34583A

Bracket-Choke

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

184

Toro 26756

Gasket

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

184

Toro 26756

Gasket

Note: Indicated Parts included in Gasket Set Ref. Num 400

$

$

Currently unavailable

185

Toro 33691

Pipe-Intake

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

186

Toro 32698

Link-Governor to Throttle

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

200

Toro 36677

Control Assembly (Incl. Ref.# 203, 204, 206, 209 209A)
(Superseded to 742507)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

203

Toro 31342

Spring-Compression

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

204

Toro 651029

Screw (T-10, 5-40x7/16)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

206

Toro 610973

Terminal

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

209

Toro 650139

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

209A

Toro 30322

Nut-Lock

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

215

Toro 35440

Knob-Control

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

219

Toro 34582

Rod-Choke

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

220

Toro 35438

Knob-Control
(Superseded to 742440)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

222

Toro 28820

Screw (10-32 x 1/2)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

223

Toro 650664

Screw (1/4-20 x 1-19/32)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

224

Toro 33673A

Gasket-Intake

Note: Indicated Parts included in Gasket Set Ref. Num 400

$

$

Currently unavailable

224

Toro 33673A

Gasket-Intake

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

260

Toro 35656A

Housing-Blower

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

262

Toro 650737

Screw (1/4-20 x 1/2)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

267

Toro 34212

Bracket-Hold Down

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

268

Toro 30200

Screw (10-24 x 9/16)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

274

Toro 33670A

Gasket-Exhaust

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

274

Toro 33670A

Gasket-Exhaust

Note: Indicated Parts included in Gasket Set Ref. Num 400

$

$

Currently unavailable

275

Toro 35771

MANUAL

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

277

Toro 650327

Screw-Fil. Hd.

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

285

Toro 36467A

Cup-Starter

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

287

Toro 650926

Screw (8-32 x 21/64)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

290

Toro 30705

Line-Fuel

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

291

Toro 29774

Line-Fuel (8.62)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

292

Toro 26460

Clamp-Line, Fuel

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

295

Toro 35857

Valve-Shut Off, Fuel

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

298

Toro 650665

Screw (1/4-15x7/8)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

300

Toro 35584

Tank Assembly-Fuel (Incl. Ref. #250 253)
(Superseded to 704775)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

301

Toro 36246

Cap-Fuel

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

305

Toro 35554

Tube-Fill, Oil

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

307

Toro 35499

O-Ring

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

308

Toro 35539

Clip-Tube, Fill

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

310

Toro 35556

Dipstick

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

313

Toro 34080

Spacer

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

328

Toro 35062

Key-Ignition

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

329

Toro 610973

Terminal

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

335

Toro 35072

Cover-Carburetor

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

338

Toro 650257

Screw (8-32 X 5/16)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

340

Toro 36247

Plate-Fuel Tank

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

342

Toro 30063

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

342A

Toro 650675

Washer

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

345

Toro 33344

Baffle-Heat

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

350

Toro 570682A

Primer ASM

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

351

Toro 32180C

Line-Primer

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

355

Toro 590574

Handle-Starter, Mitten Grip

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

364

Toro 33333

Bracket-Cover, Carburetor
(Superseded to 740348)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

365

Toro 650735

Screw (10-24 x 3/8)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

370A

Toro 36261

Decal-Lubrication

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

370B

Toro 35282

Decal-Control

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

370C

Toro 36501

Decal-Primer, International Symbol

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

370I

Toro 37119

Decal-Warning (Bilingual)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

370K

Toro 36695

Decal-Tecumseh Logo for Top of Recoil Starter
(Superseded to 704857)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

380

Toro 640084A

Carburetor (Incl. Ref. #1-48)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

390

Toro 590742

Starter-Rewind

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

396

Toro 33290E

Starter-Electric (110 Volt)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

400

Toro 36444

Gasket Set (Incl. Parts Marked *)(26756 (1), 27234A (2), 27272A (1), 27677A (1) 29673 (1), 36443 (1), 33670A (1), 33673A (1)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

400

Toro 36444

Gasket Set (Incl. Parts Marked *)(26756 (1), 27234A (2), 27272A (1), 27677A (1) 29673 (1), 36443 (1), 33670A (1), 33673A (1)

Note: Indicated Parts included in Gasket Set Ref. Num 400

$

$

Currently unavailable

420

Toro 730226

Oil-Engine (SAE 5W30)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable
