38051 (522) - Toro 22" Snow Thrower (SN: 210000001 - 210999999) (2001) Starter Motor No. 33290e (optional) Parts Diagram

22" Snow Thrower

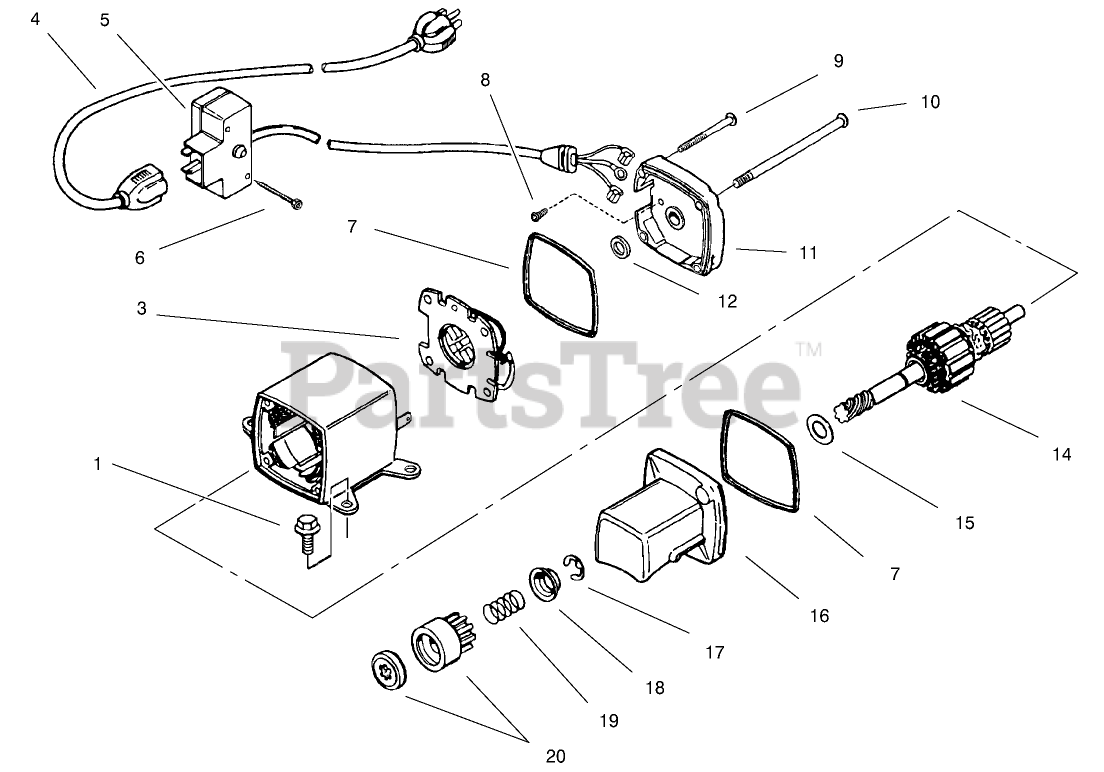

Starter Motor No. 33290e (optional) Parts Diagram

  • Title

1

Toro 650759

Screw (T-30, 1/4-20 x 23/32)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

3

Toro 35452A

Brush Card ASM

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

4

Toro 32450B

Cord-Extension (10-6)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

5

Toro 35454

Box Assembly-Switch (Incl. Ref. #26)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

6

Toro 650819

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

7

Toro 35450

O-Ring

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

8

Toro 33441

Screw-Ground

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

9

Toro 35456

Screw-Ground

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

10

Toro 35462

Bolt-Case

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

11

Toro 35453

Cap Assembly (Incl. Ref. #7)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

12

Toro 590500

Washer-Thrust

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

14

Toro 35912

Armature

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

15

Toro 35911

Washer-Thrust

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

16

Toro 35461

Cap Assembly (Incl. Ref. #7)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

17

Toro 31749

Retainer-Ring

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

18

Toro 33522

Retainer-Spring

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

19

Toro 33769

Spring-Anti Drift

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

20

Toro 33524

Nut Gear

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

Toro 33290E

Starter-Electric (110 Volt)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

Toro 33290E

Starter-Electric (110 Volt)

Note: Not illustrated

$

$

Currently unavailable

Toro 730623

Switch Repair Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 730623

Switch Repair Kit

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable
