38052 (521) - Toro 21" Snow Thrower (SN: 004000001 - 004999999) (1984) Engine Tecumseh Model Hs50-67223e Parts Diagram

21" Snow Thrower

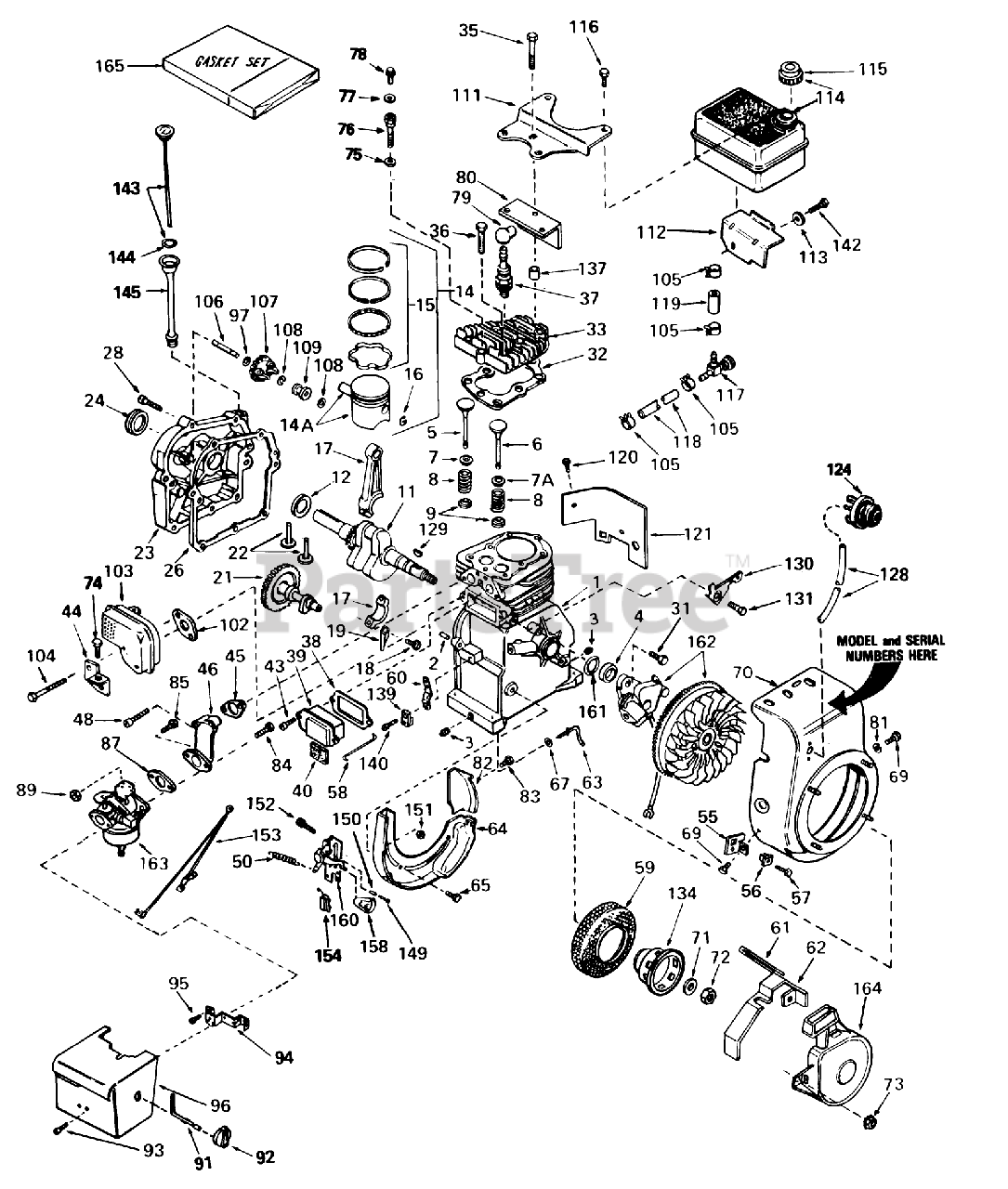

Engine Tecumseh Model Hs50-67223e Parts Diagram

  • Title

1

Toro 33674

Cylinder Assy. (Incl. Nos.2, 34)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

3

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

4

Toro 32600

Seal-Oil

$

$

Currently unavailable

5

Toro 32644A

Valve-Intake Standard (Incl. Ref. #151)

$

$

Currently unavailable

5

Toro 32645A

Valve-Intake 1/32" oversize (Incl. Ref. #151)

$

$

Currently unavailable

6

Toro 29313C

Valve, Exhaust (Std.)(Incl. No. 40)

$

$

Currently unavailable

6

Toro 29315C

Valve, Intake (1/32" oversize)(Incl. No. 40)

$

$

Currently unavailable

7

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

7A

Toro 33678

Cap, Upper Valve Spg (Exhaust)

$

$

Currently unavailable

8

Toro 31672

Spring-Valve

$

$

Currently unavailable

9

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 34740

Crankshaft ASM

$

$

Currently unavailable

12

Toro 32323

Washer-Thrust

$

$

Currently unavailable

14

Toro 34535

Piston, Pin Ring Assy., (Incl. Ref. #15 16) (Std.)

$

$

Currently unavailable

14

Toro 34536

Piston, Pin Ring Assy., (Incl. Ref. #15 16) (.010 Oversize)

$

$

Currently unavailable

14

Toro 34537

Piston, Pin Ring Assy., (Incl. Ref. #15 16) (.020 Oversize)

$

$

Currently unavailable

14A

Toro 33562B

Piston Pin Assy. (Incl. Ref. #16) (Std.)

$

$

Currently unavailable

14A

Toro 33563B

Piston Pin Assy., (Incl. Ref. #16) (.010 Oversize)

$

$

Currently unavailable

14A

Toro 33564B

Piston Pin Assy. (Incl. Ref. #16) (.020 Oversize)

$

$

Currently unavailable

15

Toro 33567

Ring Set-Piston Std.

$

$

Currently unavailable

15

Toro 33568

Ring Set-Piston .010 oversize

$

$

Currently unavailable

15

Toro 33569

Ring Set-Piston .020 oversize

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 33661

Rod Assy., Connecting (Incl. Nos. 18 19)

$

$

Currently unavailable

18

Toro 32610A

Bolt-Rod, Connecting

$

$

Currently unavailable

19

Toro 32654

Dipper-Oil

$

$

Currently unavailable

21

Toro 33158

Camshaft

$

$

Currently unavailable

22

Toro 27241

Lifter-Valve

$

$

Currently unavailable

23

Toro 34674

Cover, Cylinder (Incl. Ref. #24 106)

$

$

Currently unavailable

24

Toro 27897

Seal-Oil

$

$

Currently unavailable

26

Toro 27677

Gasket-Cylinder Cover

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$

$

Currently unavailable

28

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

31

Toro 650489

Screw

$

$

Currently unavailable

32

Toro 33554

Oil Fill Tube

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$

$

Currently unavailable

33

Toro 33016

Head Cylinder

$

$

Currently unavailable

35

Toro 650694A

Screw (5/16-18 X 2)

$

$

Currently unavailable

36

Toro 6021A

Screw (5/16-18x1-1/2)

$

$

Currently unavailable

37

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

37

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

38

Toro 31619

Gasket Breather

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$

$

Currently unavailable

39

Toro 31337

Breather Assembly (Incl. Nos. 52 84)

$

$

Currently unavailable

40

Toro 31410

Element-Breather

$

$

Currently unavailable

43

Toro 650128

Screw

$

$

Currently unavailable

44

Toro 33333

Bracket-Cover, Carburetor
(Superseded to 740348)

$

$

Not available

45

Toro 33673

Gasket-Intake

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$

$

Currently unavailable

46

Toro 33691

Pipe-Intake

$

$

Currently unavailable

48

Toro 650664

Screw (1/4-20 x 1-19/32)

$

$

Currently unavailable

50

Toro 31426

Spring-Extension

$

$

Currently unavailable

55

Toro 34126

Bracket

$

$

Currently unavailable

56

Toro 28545

Grommet

$

$

Currently unavailable

57

Toro 650643

Screw

$

$

Currently unavailable

58

Toro 32698

Link-Governor to Throttle

$

$

Currently unavailable

59

Toro 33668

Screen-Starter

$

$

Currently unavailable

60

Toro 31510

Lever-Governor

$

$

Currently unavailable

61

Toro 32576

Seal, Snowguard

$

$

Currently unavailable

62

Toro 34127

Guard-Starter

$

$

Currently unavailable

63

Toro 31334

Rod-Governor
(Superseded to 742339)

$

$

Not available

64

Toro 33342

Baffle-Blower Housing
(Superseded to 704713)

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting Replacement baffle has threaded holes

$

$

Not available

65

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

67

Toro 28277

Washer-Flat

$

$

Currently unavailable

69

Toro 29212

Screw

$

$

Currently unavailable

70

Toro 34813

Housing-Blower

$

$

Currently unavailable

71

Toro 650815

Washer-Belleville

$

$

Currently unavailable

72

Toro 650816

Nut-Flywheel

$

$

Currently unavailable

73

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

74

Toro 650735

Screw (10-24 x 3/8)

$

$

Currently unavailable

75

Toro 650691

Washer-Flat

$

$

Currently unavailable

76

Toro 650818

Screw ( 5/16-18 x 1-1/2)

$

$

Currently unavailable

77

Toro 8345

Washer

$

$

Currently unavailable

78

Toro 30688

Screw

$

$

Currently unavailable

79

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

80

Toro 33344

Baffle-Heat

$

$

Currently unavailable

81

Toro 650168

Washer

$

$

Currently unavailable

82

Toro 33341

Baffle-Extension

$

$

Currently unavailable

83

Toro 650701

Screw-Hex Washer Hd.

$

$

Currently unavailable

84

Toro 6202

DISCONTINUED
(Superseded to 83-3410)

$

$

Not available

85

Toro 650601

Screw-Fil. Hd.

$

$

Currently unavailable

87

Toro 26756

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$

$

Currently unavailable

89

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

91

Toro 34582

Rod-Choke

$

$

Currently unavailable

92

Toro 34585

Knob-Control

$

$

Currently unavailable

93

Toro 650257

Screw (8-32 X 5/16)

$

$

Currently unavailable

94

Toro 34583

Bracket-Choke

$

$

Currently unavailable

95

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

96

Toro 34134

Cover, Carburetor

$

$

Currently unavailable

97

Toro 30590A

Washer-Flat

$

$

Currently unavailable

102

Toro 33670

Gasket-Exhaust

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$

$

Currently unavailable

103

Toro 33697A

Muffler

$

$

Currently unavailable

104

Toro 650327

Screw-Fil. Hd.

$

$

Currently unavailable

105

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

106

Toro 30574

Shaft-Governor

$

$

Currently unavailable

107

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

108

Toro 29193

Ring-Retaining

$

$

Currently unavailable

109

Toro 30588A

Spool-Governor

$

$

Currently unavailable

111

Toro 28371B

Plate-Fuel Tank

$

$

Currently unavailable

112

Toro 34182

Bracket-Fuel Tank

$

$

Currently unavailable

113

Toro 650675

Washer

$

$

Currently unavailable

114

Toro 34711

481-1261 SENATOR TI

$3.23

$

Usually ships in 3-6 days

0

115

Toro 34210

Cap, Fuel

$

$

Currently unavailable

116

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

117

Toro 32961

Valve-Shut Off

$

$

Currently unavailable

118

Toro 30705

Line-Fuel

$

$

Currently unavailable

119

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

120

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 29745

Extension-Blower

$

$

Currently unavailable

124

Toro 34814

Primer Assy.

$

$

Currently unavailable

128

Toro 32180B

Line, Primer

$

$

Currently unavailable

129

Toro 610961

Key-Flywheel

$

$

Currently unavailable

130

Toro 34212

Bracket-Hold Down

$

$

Currently unavailable

131

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

134

Toro 34694

Cup-Starter

$

$

Currently unavailable

137

Toro 28212

pacer

$

$

Currently unavailable

139

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

140

Toro 650548

Screw

$

$

Currently unavailable

142

Toro 650805

Screw Assembly

$

$

Currently unavailable

143

Toro 34676

Dipstick

$

$

Currently unavailable

144

Toro 33590

O-Ring
(Superseded to 700165)

$3.99

$

Usually ships in 3-6 days

0

145

Toro 33893A

Tube Fill

$

$

Currently unavailable

149

Toro 650549

Screw

$

$

Currently unavailable

150

Toro 31342

Spring-Compression

$

$

Currently unavailable

151

Toro 30322

Nut-Lock

Note: in original production, the speed control assembly is rivited to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

152

Toro 650139

Screw

Note: in original production, the speed control assembly is rivited to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

153

Toro 34241

Wire-Ground

$

$

Currently unavailable

154

Toro 610973

Terminal

$

$

Currently unavailable

158

Toro 32410

Knob-Control

$

$

Currently unavailable

160

Toro 33858A

Control Assembly, Speed (Incl. Ref. #155 thru 158 160)

Note: in original production, the speed control assembly is rivited to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

161

Toro 33876

Gasket Stator

$

$

Currently unavailable

162

Toro 611030

Magneto (The complete magneto in not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list)

$

$

Not available

163

Toro 632107

Carburetor (Incl. Ref. #87)

$

$

Currently unavailable

164

Toro 590473

Starter Assy., Rewind

$

$

Currently unavailable

165

Toro 33683

Gasket Set

$

$

Currently unavailable
