38052 (521) - Toro 21" Snow Thrower (SN: 004000001 - 004999999) (1984) Starter Motor Kit Model 23-3790 Parts Diagram

21" Snow Thrower

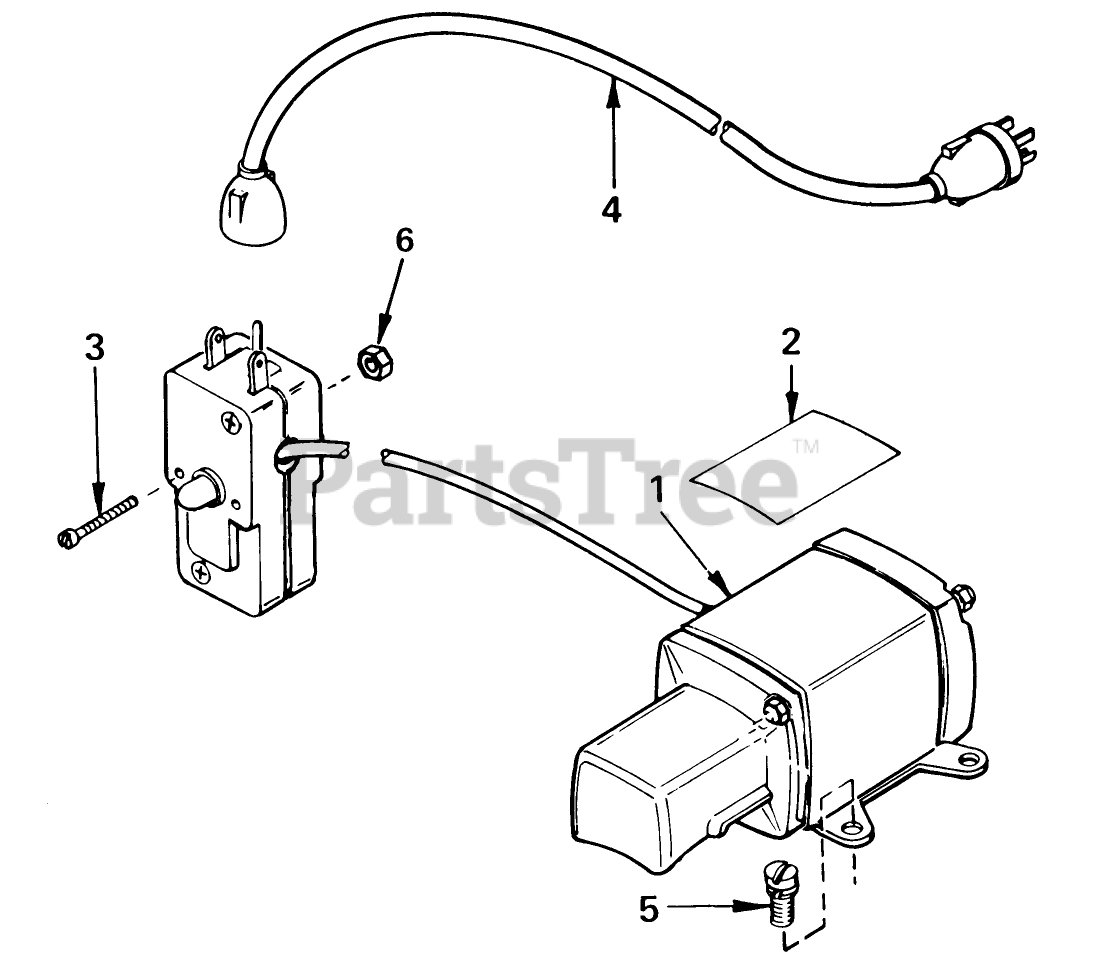

Starter Motor Kit Model 23-3790 Parts Diagram

  • Title

1

Toro 33517A

Motor, Cranking (CSA Approved) (Incl. #2 thru 6)

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$

$

Currently unavailable

2

Toro 34161

Decal

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$

$

Currently unavailable

3

Toro 650741

Screw, Pan Hd.

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$

$

Currently unavailable

4

Toro 32450A

Cord-Extension

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$

$

Currently unavailable

5

Toro 650759

Screw (T-30, 1/4-20 x 23/32)

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$

$

Currently unavailable

6

Toro 650742

Nut Lockwasher

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$

$

Currently unavailable
