38052 (521) - Toro 21" Snow Thrower (SN: 005000001 - 005999999) (1985) REWIND STARTER NO. 590576 Parts Diagram

21" Snow Thrower

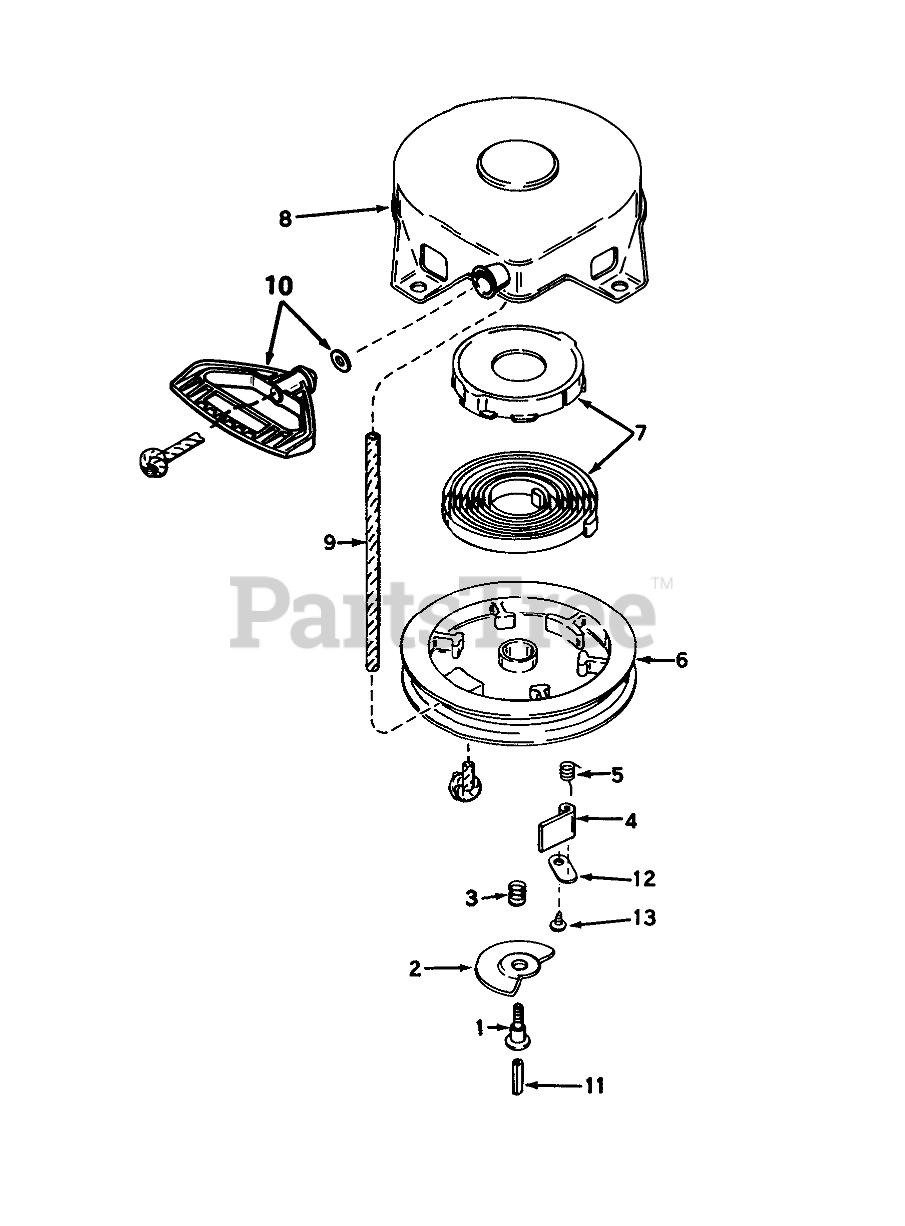

REWIND STARTER NO. 590576 Parts Diagram

  • Title

1

Tecumseh 590409A

Screw

$3.99

$

In Stock, only 1 left!

0

2

Tecumseh 590474

Cam-Dog

$

$

Not available

3

Tecumseh 590411

Spring-Brake

$3.49

$

In Stock, only 3 left!

0

4

Tecumseh 590148

Dog-Starter

$3.49

$

In Stock, Qty 9

0

5

Tecumseh 590475

Spring-Dog

$3.99

$

In Stock, only 1 left!

0

6

Tecumseh 590478

Pulley

$

$

Not available

7

Tecumseh 590414

Spring & Keeper Assy

$14.99

$

Usually ships in 3-12 days

0

8

Tecumseh 590577

Housing Assy. Starter (Incl. Ref. #1)

$

$

Not available

9

Tecumseh 590451

Rope, Starter
(Superseded to 590535)

$9.49

$

In Stock, Qty 18

0

10

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

Usually ships in 3-12 days

0

11

Tecumseh 590459

Centering

$

$

Not available

12

Tecumseh 590476

Retainer-Dog

$5.99

$

Usually ships in 3-12 days

0

13

Tecumseh 590477

Screw

$1.99

$

In Stock, only 4 left!

0
