38052 (521) - Toro 21" Snow Thrower (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

21" Snow Thrower

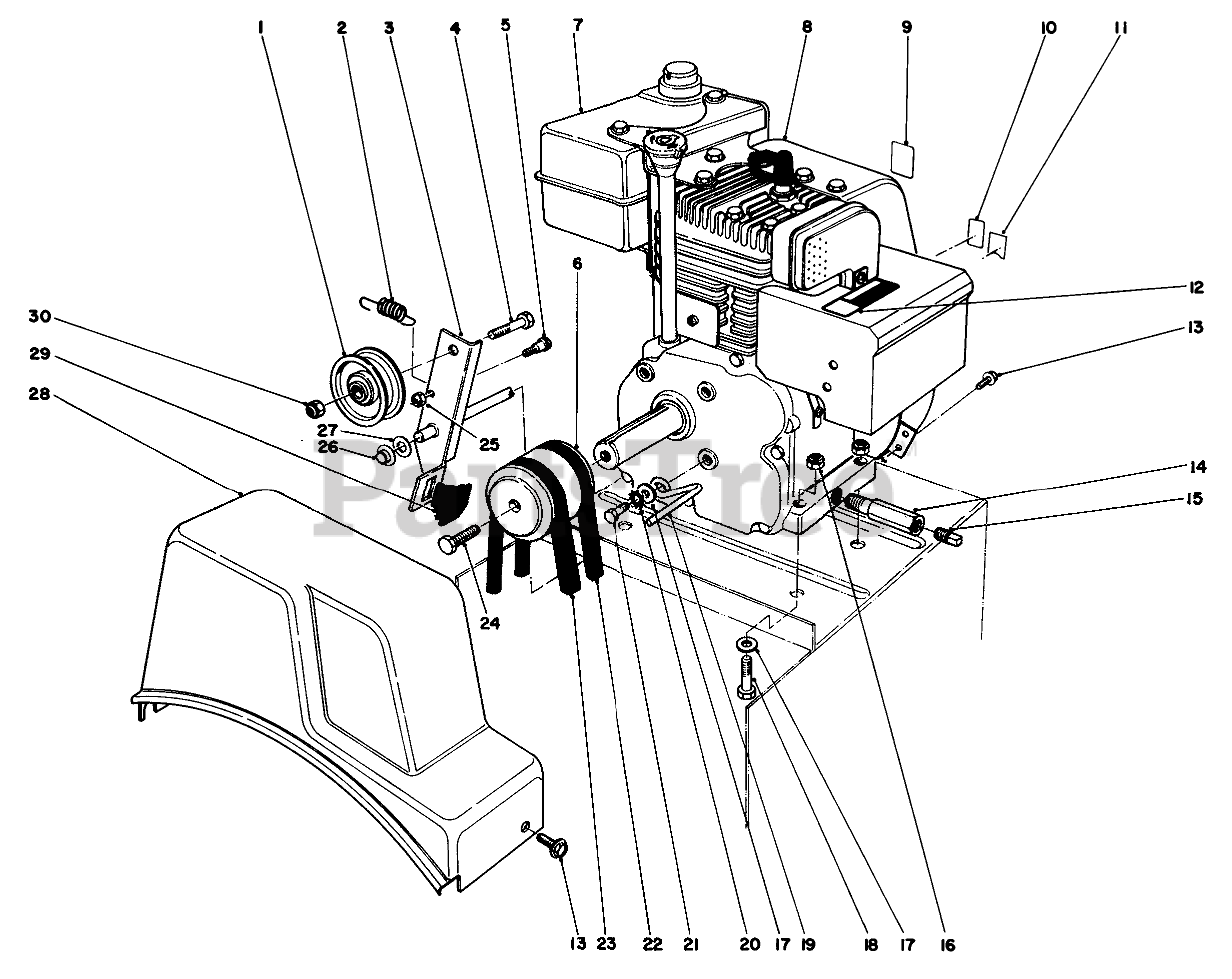

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 3 left!

0

2

Toro 53-7570

SPRING

$9.49

$

In Stock, only 1 left!

0

3

Toro 8-8649

Auger Clutch (Incl. Ref. #29)
(Superseded to 14-7959)

$

$

Not available

4

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

5

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, Qty 18

0

6

Toro 43-7370

PULLEY-ENGINE

$269.99

$

Usually ships in 3-6 days

0

7

Toro 52-2680

GAS TANK 2 QT W CAP

$

$

Not available

8

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

9

Toro 62-5760

DECAL-PRIMER
(Superseded to 94-2572)

$

$

Not available

10

Toro 63-2450

THROTTLE DECAL, INT'L

$4.99

$

Usually ships in 3-6 days

0

11

Toro 39-3850

CHOKE DECAL

$

$

Not available

11

Toro 63-2410

DECAL-CHOKE

$6.49

$

Usually ships in 3-6 days

0

12

Toro 62-7290

Decal-Hot
(Superseded to 66-6840)

$80.99

$

Usually ships in 3-6 days

0

12

Toro 63-2310

DECAL-HOT SURFACE, WARNING
(Superseded to 94-2576)

$13.99

$

Usually ships in 3-6 days

0

13

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

14

Toro 49-3040

PIPE-NIPPLE

$20.99

$

In Stock, only 1 left!

0

15

Toro 281-7

CAP-PIPE

$3.99

$

Usually ships in 3-6 days

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 37-8990

RETAINER-BELT

$9.49

$

Usually ships in 3-6 days

0

20

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

21

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

22

Toro 37-9090

V BELT-3L, TRACTION

$14.99

$

In Stock, Qty 9

0

23

Toro 37-9080

V-BELT (29.50 INCH)

$20.99

$

In Stock, Qty 12

0

24

Toro 43-7290

SCREW-SPECIAL

$7.49

$

Usually ships in 3-6 days

0

25

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

26

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 37-6900

COVER-BELT

$61.99

$

In Stock, only 1 left!

0

29

Toro 40-8140

Brake Pad
(Superseded to 66-8060)

$18.99

$

In Stock, Qty 20+

0

30

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0
