38052 (521) - Toro 21" Snow Thrower (SN: 020000001 - 029999999) (1992) ENGINE MODEL HS50-67259K Parts Diagram

21" Snow Thrower

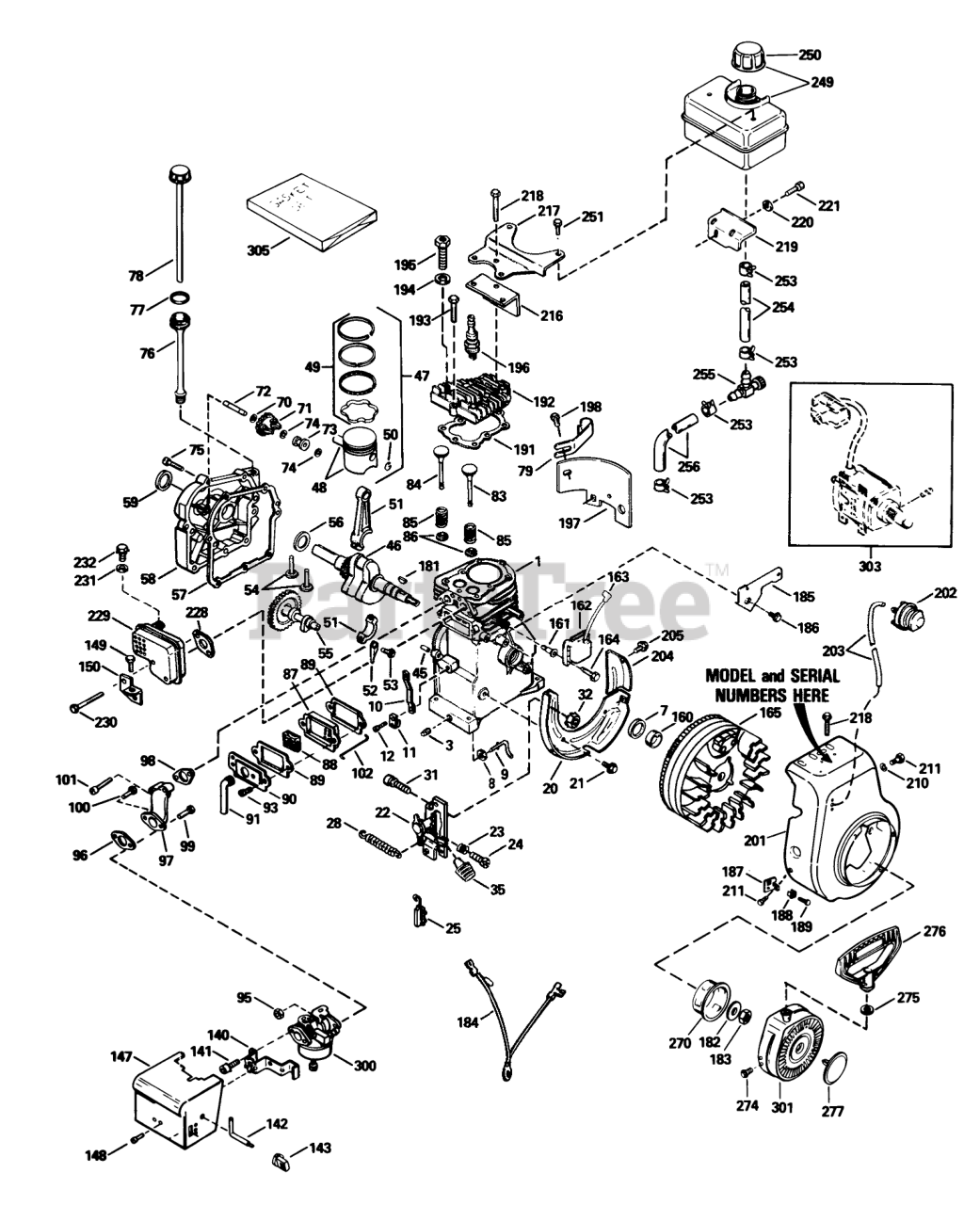

ENGINE MODEL HS50-67259K Parts Diagram

  • Title

1

Tecumseh 33674B

Cylinder Assembly (Incl. Ref. #3, 7 & 45)

$

$

Not available

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 3 left!

0

7

Tecumseh 32600

Seal-Oil

$

$

Not available

8

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 3 left!

0

9

Tecumseh 31334

Rod-Governor

$5.49

$

In Stock, only 1 left!

0

10

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

In Stock, Qty 10

0

11

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, Qty 5

0

12

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 18

0

20

Tecumseh 33342

Baffle-Blower Housing
(Superseded to 36552)

$9.49

$

Usually ships in 3-12 days

0

21

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, Qty 6

0

22

Tecumseh 33858A

Control Assembly (Incl. Ref. #23-25, 31 & 32)
(Superseded to 36677)

$47.99

$

In Stock, only 1 left!

0

23

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 2 left!

0

24

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 4 left!

0

25

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 4 left!

0

28

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

31

Tecumseh 650139

Screw

$1.99

$

In Stock, only 4 left!

0

32

Tecumseh 30322

Nut-Lock

$1.99

$

Usually ships in 3-12 days

0

35

Tecumseh 35440

Knob-Control

$3.99

$

Usually ships in 3-12 days

0

45

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

46

Tecumseh 34740

Crankshaft ASM

$137.99

$

Usually ships in 3-12 days

0

47

Tecumseh 34535

Piston-Pin & Assy. Std. (Incl. Ref. #48-50)

$74.99

$

In Stock, only 1 left!

0

47

Tecumseh 34536

Piston-Pin & Ring Assy .010 oversize (Incl. Ref. #48-50)

$

$

Not available

47

Tecumseh 34537

Piston-Pin & Ring Assy .020 oversize (Incl. Ref. #48-50)

$

$

Not available

48

Tecumseh 33562B

Piston & Pin Assy. Std. (Incl. Ref. #50)

$44.99

$

Usually ships in 3-12 days

0

48

Tecumseh 33563B

Piston & Pin Assembly .010 oversize (Incl. Ref. #50)

$

$

Not available

48

Tecumseh 33564B

Piston & Pin Assembly .020 oversize (Incl. Ref. #50)

$

$

Not available

49

Tecumseh 33567

Ring Set-Piston Std.
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

49

Tecumseh 33568

Ring Set-Piston .010 oversize

$

$

Not available

49

Tecumseh 33569

Ring Set-Piston .020 oversize

$

$

Not available

50

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

51

Tecumseh 32875

Connecting Rod Assembly (Incl. Ref. #52 & 53)
(Superseded to 32875A)

$47.99

$

In Stock, only 1 left!

0

52

Tecumseh 32654

Dipper-Oil

$8.99

$

In Stock, only 4 left!

0

53

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

54

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

55

Tecumseh 33158

Camshaft
(Superseded to 37040)

$30.99

$

In Stock, only 1 left!

0

56

Tecumseh 32323

Washer-Thrust

$8.49

$

In Stock, only 1 left!

0

57

Tecumseh 27677A

Gasket-Cover, Cylinder

$7.49

$

In Stock, Qty 17

0

58

Tecumseh 34674A

Cover-Cylinder (Incl. Ref. #59 & 72)
(Superseded to 34674C)

$

$

Not available

59

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, Qty 20+

0

70

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 9

0

71

Tecumseh 30591

Gear-Governor (Incl. Ref. #70)

$13.99

$

In Stock, Qty 13

0

72

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, Qty 6

0

73

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, Qty 12

0

74

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 10

0

75

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

In Stock, only 4 left!

0

76

Tecumseh 35554

Tube-Fill, Oil

$19.99

$

In Stock, only 3 left!

0

77

Tecumseh 35499

O-Ring

$1.49

$

In Stock, Qty 20+

0

78

Tecumseh 35556

Dipstick

$7.49

$

Usually ships in 3-12 days

0

79

Tecumseh 35539

Clip-Tube, Fill

$1.99

$

Usually ships in 3-12 days

0

83

Tecumseh 29313C

Valve-Exhaust Std. (Incl. Ref. #86)

$

$

Not available

83

Tecumseh 29315C

Valve-Exhaust 1/32" oversize (Incl. Ref. #86)

$

$

Not available

84

Tecumseh 32644A

Valve-Intake Std. (Incl. Ref. #86)

$9.99

$

In Stock, Qty 8

0

84

Tecumseh 32645A

Valve-Intake 1/32" oversize (Incl. Ref. #86)

$61.99

$

In Stock, only 2 left!

0

85

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 17

0

86

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, Qty 6

0

87

Tecumseh 27666

Body-Breather

$14.99

$

In Stock, Qty 7

0

88

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

89

Tecumseh 27234A

Gasket-Cover, Valve

$5.99

$

In Stock, Qty 11

0

90

Tecumseh 34146

Cover-Breather

$3.99

$

In Stock, only 4 left!

0

91

Tecumseh 35350

Tube-Breather

$6.49

$

In Stock, Qty 12

0

93

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

95

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 5

0

96

Tecumseh 26756

Gasket

$2.99

$

In Stock, Qty 20+

0

97

Tecumseh 33691

Pipe-Intake

$25.99

$

Usually ships in 3-12 days

0

98

Tecumseh 33673A

Gasket-Intake

$5.99

$

In Stock, only 2 left!

0

99

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

100

Tecumseh 650870

Screw (1/4-28 x 1-11/16)

$1.99

$

In Stock, Qty 5

0

101

Tecumseh 650664

Screw (1/4-20 x 1-19/32)

$1.99

$

In Stock, Qty 11

0

102

Tecumseh 32698

Link-Governor to Throttle

$1.99

$

In Stock, Qty 13

0

140

Tecumseh 34583

Bracket-Choke
(Superseded to 34583A)

$12.99

$

In Stock, Qty 7

0

141

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, Qty 6

0

142

Tecumseh 34582

Rod-Choke

$5.49

$

In Stock, only 1 left!

0

143

Tecumseh 35438

Knob-Control

$3.99

$

In Stock, Qty 10

0

147

Tecumseh 35072

Cover-Carburetor
(Superseded to 35072B)

$

$

Not available

148

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 20+

0

149

Tecumseh 650735

Screw (10-24 x 3/8)

$1.99

$

In Stock, only 2 left!

0

150

Tecumseh 33333

Bracket-Cover, Carburetor

$3.99

$

Usually ships in 3-12 days

0

160

Tecumseh 34080

Spacer

$1.99

$

In Stock, only 2 left!

0

161

Tecumseh 650872

Stud
(Superseded to 651024)

$3.99

$

In Stock, Qty 7

0

162

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

In Stock, Qty 20+

0

163

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, Qty 19

0

164

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, Qty 5

0

165

Tecumseh 611081

CLAMP
(Superseded to 611081A)

$

$

Not available

181

Tecumseh 610961

Key-Flywheel

$1.49

$

In Stock, Qty 20+

0

182

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 13

0

183

Tecumseh 650863

Nut-Flywheel

$

$

Not available

184

Tecumseh 35557

Wire-Ground

$3.99

$

Usually ships in 3-12 days

0

185

Tecumseh 34212

Bracket-Hold Down

$1.99

$

In Stock, Qty 5

0

186

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 16

0

187

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

188

Tecumseh 28545

Grommet

$1.99

$

In Stock, Qty 5

0

189

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 4 left!

0

191

Tecumseh 33554A

Gasket-Cylinder Head
(Superseded to 36443)

$5.99

$

In Stock, Qty 10

0

192

Tecumseh 33016A

Head-Cylinder (Incl. Ref. #218)
(Superseded to 37675)

$41.99

$

Usually ships in 3-12 days

0

193

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, Qty 7

0

194

Tecumseh 650691

Washer-Flat

$1.99

$

In Stock, Qty 5

0

195

Tecumseh 650818

Screw ( 5/16-18 x 1-1/2)

$3.99

$

In Stock, only 2 left!

0

196

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

$3.49

$

In Stock, Qty 20+

0

197

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

198

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

201

Tecumseh 35656

Housing-Blower
(Superseded to 35656A)

$34.99

$

Usually ships in 3-12 days

0

202

Tecumseh 570682

Primer-Asm
(Superseded to 570682A)

$10.99

$

In Stock, Qty 6

0

203

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, Qty 6

0

204

Tecumseh 33341

Baffle-Extension
(Superseded to 35883)

$1.99

$

In Stock, Qty 5

0

205

Tecumseh 650884

Screw, Hex Hd.
(Superseded to 650926)

$1.49

$

In Stock, Qty 19

0

211

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, Qty 6

0

216

Tecumseh 33344

Baffle-Heat

$5.49

$

Usually ships in 3-12 days

0

217

Tecumseh 28371B

Plate-Fuel Tank
(Superseded to 36247)

$11.99

$

In Stock, only 1 left!

0

218

Tecumseh 650694A

Screw (5/16-18 X 2)

$3.49

$

In Stock, Qty 8

0

219

Tecumseh 34182

Bracket-Fuel Tank

$13.99

$

Usually ships in 3-12 days

0

220

Tecumseh 650675

Washer

$1.99

$

Usually ships in 3-12 days

0

221

Tecumseh 650805

Screw Assembly
(Superseded to 650561)

$1.99

$

In Stock, Qty 6

0

228

Tecumseh 33670A

Gasket-Exhaust
(Superseded to 35865)

$2.49

$

In Stock, Qty 20+

0

229

Tecumseh 35771

Muffler (Incl. Ref. #228)
(Superseded to 35771A)

$32.99

$

Usually ships in 3-12 days

0

230

Tecumseh 650327

Screw-Fil. Hd.
(Superseded to 650327A)

$6.99

$

In Stock, Qty 18

0

231

Tecumseh 8345

Washer

$1.99

$

In Stock, only 2 left!

0

232

Tecumseh 30063

Screw

$1.99

$

In Stock, Qty 20+

0

249

Tecumseh 35584

Tank Assembly-Fuel (Incl. Ref. #250 & 253)

$45.99

$

In Stock, Qty 5

0

250

Tecumseh 35355

Cap-Fuel
(Superseded to 37845)

$8.99

$

In Stock, Qty 20+

0

251

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, Qty 6

0

253

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

254

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 16

0

255

Tecumseh 35857

Valve-Shut Off, Fuel

$13.99

$

In Stock, only 3 left!

0

256

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 2 left!

0

270

Tecumseh 34694

Cup-Starter

$11.99

$

Usually ships in 3-12 days

0

274

Tecumseh 650884

Screw, Hex Hd.
(Superseded to 650926)

$1.49

$

In Stock, Qty 19

0

275

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

276

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

In Stock, only 1 left!

0

277

Tecumseh 35392

Plug Starter

$1.99

$

In Stock, only 2 left!

0

300

Tecumseh 632107A

Carburetor (Incl. Ref. #96)
(Superseded to 640084B)

$109.99

$

In Stock, only 4 left!

0

301

Tecumseh 590646

Rewind Starter
(Superseded to 590787)

$53.99

$

In Stock, only 1 left!

0

303

Tecumseh 33290C

Motor-Electric Starter
(Superseded to 33290E)

$278.99

$

Usually ships in 3-12 days

0

305

Tecumseh 33683B

Gasket Set
(Superseded to 33683C)

$20.99

$

In Stock, Qty 5

0
