38062 (622) - Toro 22" Snow Thrower (SN: 079000001 - 079999999) (1997) Engine Tecumseh Model Hsk60-76008b Parts Diagram

22" Snow Thrower

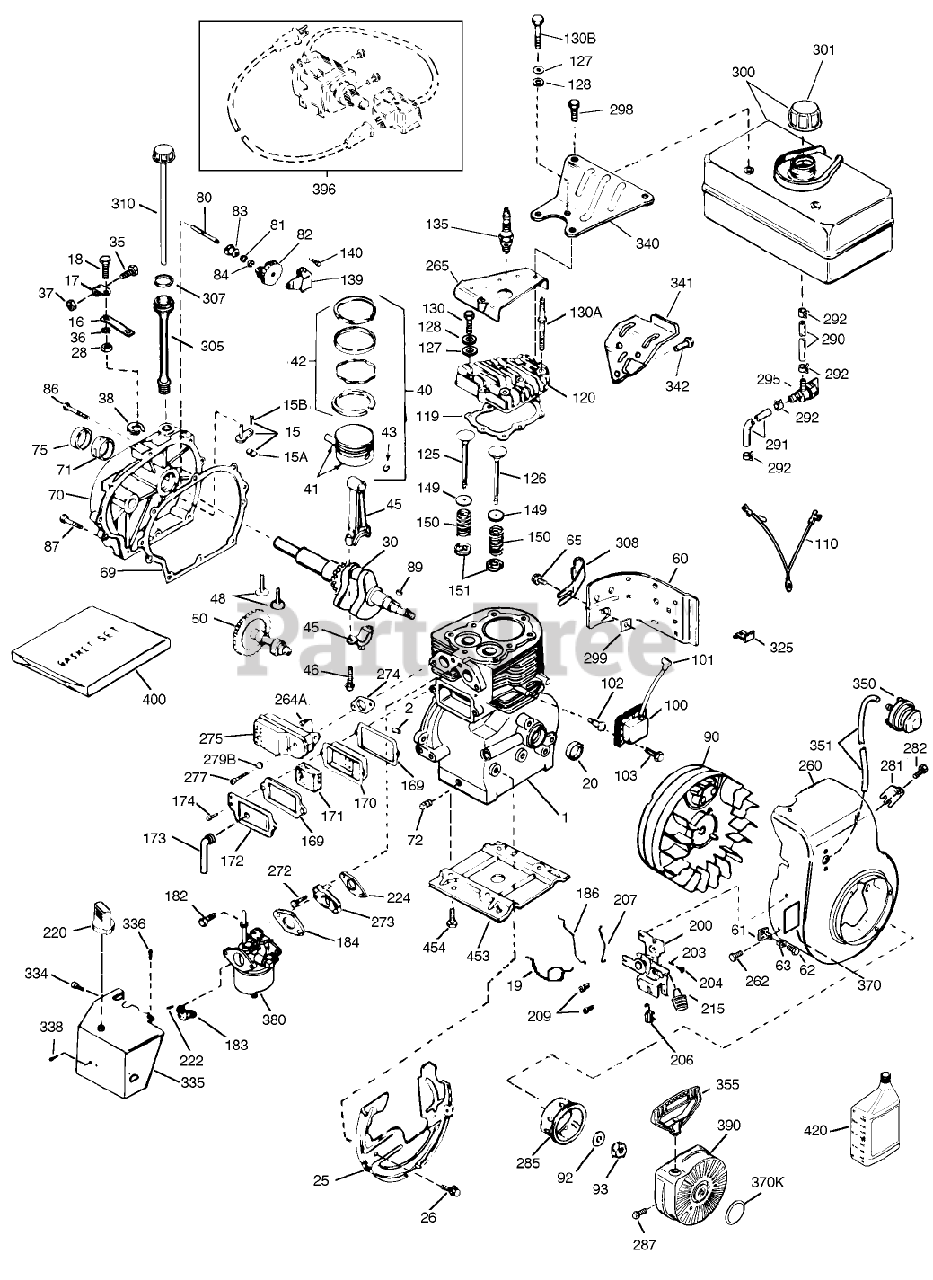

Engine Tecumseh Model Hsk60-76008b Parts Diagram

  • Title

1

Toro 34919B

Cylinder (Incl. Ref. #2, 20 72)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

15

Toro 30699C

Rod, Governor (Incl. Nos.62 63)

$

$

Currently unavailable

15A

Toro 30700

Yoke-Governor

$

$

Currently unavailable

15B

Toro 650494

Screw (6-40x5/16)

$

$

Currently unavailable

16

Toro 33454

Lever-Governor

$

$

Currently unavailable

17

Toro 29916

Clamp-Lever, Governor

$

$

Currently unavailable

18

Toro 650548

Screw

$

$

Currently unavailable

19

Toro 34663

Spring-Throttle

$

$

Currently unavailable

20

Toro 32630

Oil Seal

$

$

Currently unavailable

25

Toro 36460

Baffle-Housing, Blower
(Superseded to 702114)

$

$

Not available

26

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

28

Toro 30322

Nut-Lock

$

$

Currently unavailable

30

Toro 35193

Crankshaft

$

$

Currently unavailable

35

Toro 29826

Screw

$

$

Currently unavailable

36

Toro 29918

Washer-Lock

$

$

Currently unavailable

37

Toro 29216

Nut-Lock

$

$

Currently unavailable

38

Toro 29642

Ring-Retaining

$

$

Currently unavailable

40

Toro 34531

Piston, Pin Ring Assy. (Std.)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

40

Toro 34532

Piston, Pin Ring Assy. (.010 Oversize)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

40

Toro 34533

Piston, Pin Ring Assy. (.020 Oversize)(Incl. Ref. #14A,15 16)

$

$

Currently unavailable

41

Toro 33312B

Piston Pin Assy. (Std.)(Incl. Ref. #16)

$

$

Currently unavailable

41

Toro 33313B

Piston Pin Assy. (.010 Oversize)(Incl. Ref. #16)

$

$

Currently unavailable

41

Toro 33314B

Piston Pin Assy. (.020 Oversize)(Incl. Ref. #16)

$

$

Currently unavailable

42

Toro 34854

Ring Set (Std.)

$

$

Currently unavailable

42

Toro 34855

Ring Set (.020" OS)

$

$

Currently unavailable

42

Toro 34856

Ring Set (.010" OS)

$

$

Currently unavailable

43

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

45

Toro 31380C

Rod Assy., Connecting (Incl. Ref. #18)

$

$

Currently unavailable

46

Toro 650662C

Bolt-Connecting Rod

$

$

Currently unavailable

48

Toro 34034

Lifter-Valve

$

$

Currently unavailable

49

Toro 34242

Dipper-Oil

$

$

Currently unavailable

50

Toro 32115

Camshaft

$1.49

$

In Stock, Qty 11

0

60

Toro 30622A

Extension-Blower Hsng.

$

$

Currently unavailable

61

Toro 34126

Bracket

$

$

Currently unavailable

62

Toro 650760

Screw (8-32 x 3/8)

$

$

Currently unavailable

63

Toro 28545

Grommet

$

$

Currently unavailable

65

Toro 650128

Screw

$

$

Currently unavailable

69

Toro 30684

Gasket-Cover, Cylinder

$

$

Currently unavailable

70

Toro 31303C

Cylinder Cover (Incl. Ref. #71, 75, 80)

Note: Included in Gasket Set Ref. Num 400.

$

$

Currently unavailable

71

Toro 31546

Bushing-Crankshaft

$

$

Currently unavailable

72

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

75

Toro 28427

Oil Seal

$

$

Currently unavailable

80

Toro 31845

Shaft-Governor
(Superseded to 704636)

$

$

Not available

81

Toro 30590A

Washer-Flat

$

$

Currently unavailable

82

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

83

Toro 30588A

Spool-Governor

$

$

Currently unavailable

84

Toro 29193

Ring-Retaining

$

$

Currently unavailable

86

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

87

Toro 650493

Screw

$

$

Currently unavailable

89

Toro 32589

Key-Flywheel

$

$

Currently unavailable

90

Toro 611085

Flywheel

$

$

Currently unavailable

92

Toro 650815

Washer-Belleville

$

$

Currently unavailable

93

Toro 8116

DISCONTINUED

$

$

Not available

100

Toro 34443A

Solid State

$

$

Currently unavailable

101

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

102

Toro 650872

Stud

$

$

Currently unavailable

103

Toro 650814

Screw

$

$

Currently unavailable

110

Toro 35253

Ground Wire

$

$

Currently unavailable

119

Toro 36445

Cylinder Head Gasket

Note: Included in Gasket Set Ref. Num 400.

$

$

Currently unavailable

120

Toro 36446

Cylinder Head (Incl. 3 of 131)

$

$

Currently unavailable

125

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

$

$

Currently unavailable

125

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

126

Toro 32784

Valve, Intake (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

126

Toro 32783

Valve, Intake (Standard)(Incl. No. 9)

$

$

Currently unavailable

127

Toro 650691

Washer-Flat

$

$

Currently unavailable

128

Toro 650690

Washer-Belleville

$

$

Currently unavailable

129

Toro 650697A

Screw (5/16-18 X 2-1/2)

$

$

Currently unavailable

130

Toro 650697A

Screw (5/16-18 X 2-1/2)

$

$

Currently unavailable

131

Toro 650697A

Screw (5/16-18 X 2-1/2)

$

$

Currently unavailable

135

Toro 35395

Spark Plug-Resistor (R J19 L M)

$

$

Currently unavailable

139

Toro 31843A

Bracket, Governor

$

$

Currently unavailable

140

Toro 650965

Screw, Torx T-25

$

$

Currently unavailable

149

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

150

Toro 27881

Spring-Valve

$

$

Currently unavailable

151

Toro 32581

Keeper-Spring, Valve

$

$

Currently unavailable

169

Toro 27896A

Gasket-Cover, Valve

Note: Included in Gasket Set Ref. Num 400.

$

$

Currently unavailable

170

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

171

Toro 28424

Element-Breather

$

$

Currently unavailable

172

Toro 28425

Cover-Valve

$

$

Currently unavailable

173

Toro 35350

Tube-Breather

$

$

Currently unavailable

174

Toro 650128

Screw

$

$

Currently unavailable

182

Toro 650517

Screw (T-30, 1/4-20 X 27-32)

$

$

Currently unavailable

183

Toro 32398

Bracket-Choke

$

$

Currently unavailable

184

Toro 31688A

Gasket-Carburetor

Note: Included in Gasket Set Ref. Num 400.

$

$

Currently unavailable

186

Toro 34661

Governor Link

$

$

Currently unavailable

200

Toro 34677

Bracket-Control (Includes 19, 203, 204, 206)

$

$

Not available

203

Toro 31342

Spring-Compression

$

$

Currently unavailable

204

Toro 650549

Screw

$

$

Currently unavailable

206

Toro 610973

Terminal

$

$

Currently unavailable

207

Toro 34662

Link-Throttle

$

$

Currently unavailable

209

Toro 650821

Screw (10-32 x 1/2)

$

$

Currently unavailable

215

Toro 35440

Knob-Control

$

$

Currently unavailable

220

Toro 35439

Knob-Choke

$

$

Currently unavailable

222

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

224

Toro 27915A

Gasket-Pipe, Intake

Note: Included in Gasket Set Ref. Num 400.

$

$

Currently unavailable

260

Toro 36254

Blower Housing

$

$

Currently unavailable

262

Toro 29747B

Screw

$

$

Currently unavailable

264A

Toro 30196

Screw

$

$

Currently unavailable

265

Toro 30939A

Cover-Head, Cylinder

$

$

Currently unavailable

272

Toro 30196

Screw

$

$

Currently unavailable

273

Toro 34712

481-1279 SENATOR RO

$3.23

$

Usually ships in 3-6 days

0

274

Toro 35865

Gasket-Exhaust

$

$

Currently unavailable

275

Toro 32401

Muffler

$

$

Currently unavailable

277

Toro 650694A

Screw (5/16-18 X 2)

$

$

Currently unavailable

279B

Toro 26073

Washer

$

$

Currently unavailable

281

Toro 33013

Screw

$

$

Currently unavailable

282

Toro 650760

Screw (8-32 x 3/8)

$

$

Currently unavailable

285

Toro 35287B

Starter Cup

$

$

Currently unavailable

287

Toro 650926

Screw (8-32 x 21/64)

$

$

Currently unavailable

290

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

291

Toro 30962

Line-Fuel

$

$

Currently unavailable

292

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

295

Toro 35857

Valve-Shut Off, Fuel

$

$

Currently unavailable

298

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

299

Toro 650764

Nut-U Type

$

$

Currently unavailable

300

Toro 34186A

Fuel Tank (Incl. Ref. #292 301)

$

$

Currently unavailable

301

Toro 36246

Cap-Fuel

$

$

Currently unavailable

305

Toro 35554

Tube-Fill, Oil

$

$

Currently unavailable

307

Toro 35499

O-Ring

$

$

Currently unavailable

308

Toro 35540

Clip-Tube, Fill
(Superseded to 742447)

$

$

Not available

310

Toro 36205

Gauge Oil ASM

$

$

Currently unavailable

325

Toro 29443

Clip-Wire

$

$

Currently unavailable

334

Toro 650257

Screw (8-32 X 5/16)

$

$

Currently unavailable

335

Toro 35060

Carburetor Cover

$

$

Currently unavailable

336

Toro 650765

Screw (10-32x1/2)

$

$

Currently unavailable

338

Toro 650760

Screw (8-32 x 3/8)

$

$

Currently unavailable

340

Toro 34159

Bracket-Fuel Tank

$

$

Currently unavailable

341

Toro 34158

Bracket-Fuel Tank

$

$

Currently unavailable

342

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

350

Toro 570682

Primer-Asm

$

$

Currently unavailable

351

Toro 32180C

Line-Primer

$

$

Currently unavailable

355

Toro 590574

Handle-Starter, Mitten Grip

$

$

Currently unavailable

370

Toro 36261

Decal-Lubrication

$

$

Currently unavailable

370K

Toro 36695

Decal-Tecumseh Logo for Top of Recoil Starter
(Superseded to 704857)

$

$

Not available

380

Toro 632371A

Carburetor (Incl. Ref. #184)

$

$

Currently unavailable

390

Toro 590646

Rewind Starter

$

$

Currently unavailable

396

Toro 33329D

Starter-Electric (110 Volt)

$

$

Currently unavailable

400

Toro 33239A

Gasket Set

$

$

Currently unavailable

420

Toro 730225

4 Cycle Oil, SAE 30 (Quart)

$

$

Currently unavailable

453

Toro 290538

Engine Mounting Base

$

$

Currently unavailable

454

Toro 650542

Screw

$

$

Currently unavailable
