38062 (622) - Toro 22" Snow Thrower (SN: 089000001 - 089999999) (1998) RECOIL STARTER NO. 590742 Parts Diagram

22" Snow Thrower

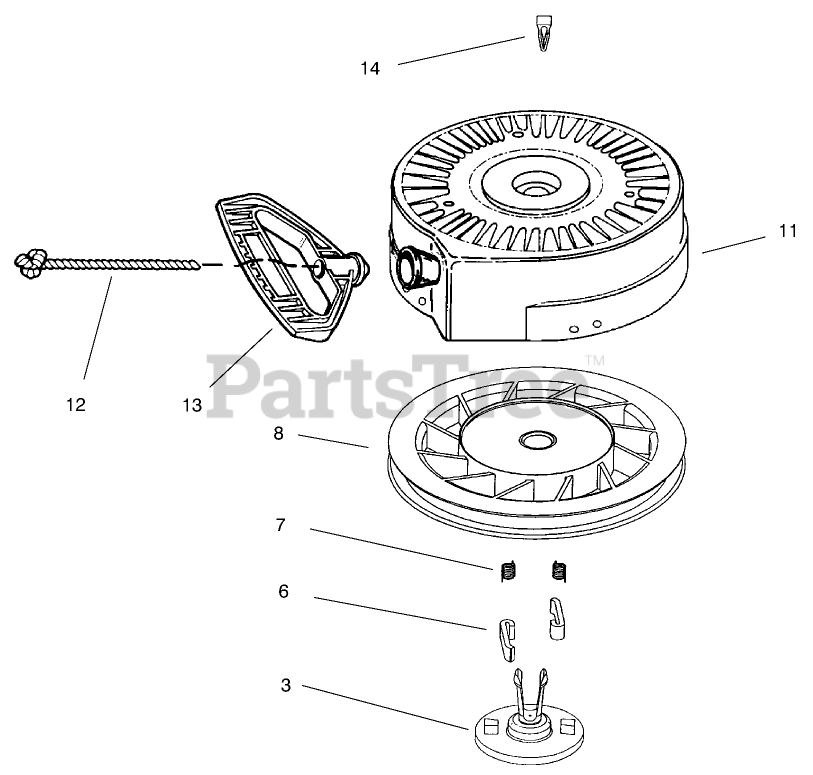

RECOIL STARTER NO. 590742 Parts Diagram

  • Title

3

Toro 590740

Retainer

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

6

Toro 590616

Dog-Starter

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

7

Toro 590617

Spring-Dog

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

8

Toro 590645A

Pulley and Rewind Spring ASM

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

11

Toro 590647

Housing Assembly

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

12

Toro 590535

Rope-Starter (98 cut to length)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

13

Toro 590574

Handle-Starter, Mitten Grip

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

14

Toro 590741

Locking Tab

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable
