38063 (622) - Toro 22" Power Throw Snow Thrower (SN: 089000001 - 089999999) (1998) HANDLE ASSEMBLY LEFT SIDE Parts Diagram

22" Power Throw Snow Thrower

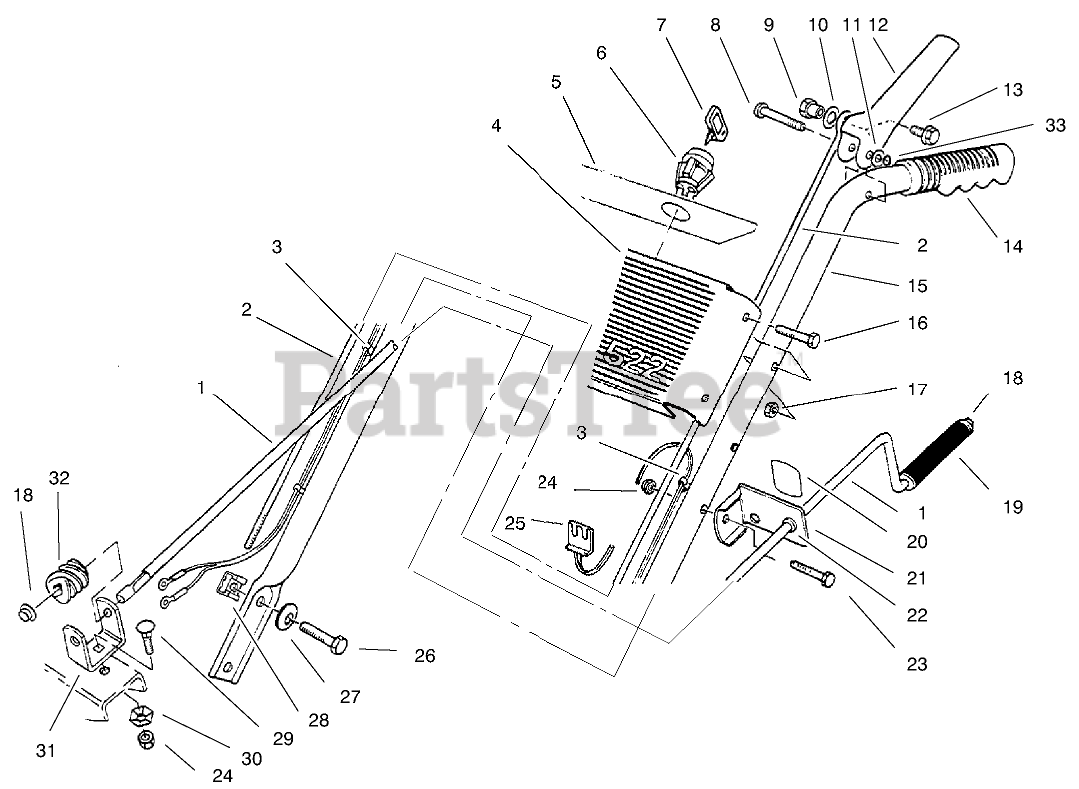

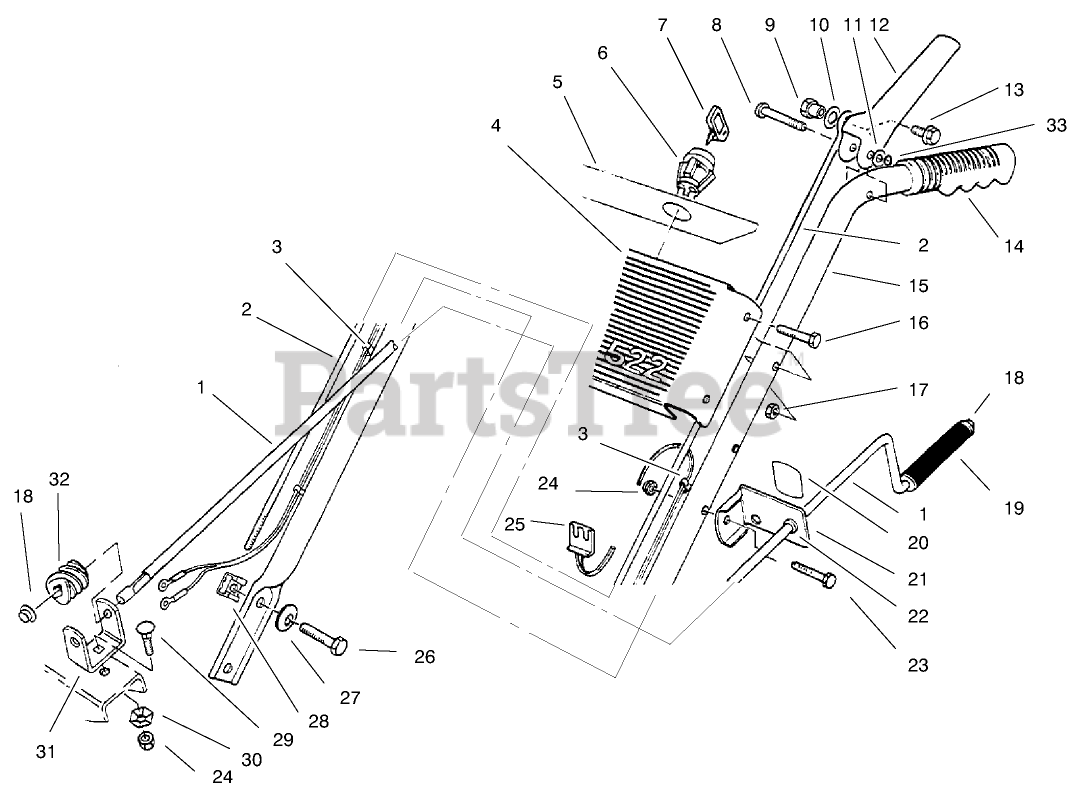

HANDLE ASSEMBLY LEFT SIDE Parts Diagram

  • Title

1

Toro 40-8270

ROD-CONTROL, CHUTE

$138.99

$

Usually ships in 3-6 days

0

2

Toro 52-5590

LINK-UPPER

$19.99

$

Usually ships in 3-6 days

0

3

Toro 17-9120

Mount-Wire

$2.49

$

Usually ships in 3-6 days

0

4

Toro Reference

Panel-Escutcheon

$

$

Currently unavailable

5

Toro 66-6830

DECAL - ESCUTCHEON BACK

$

$

Not available

Toro 94-2563

DECAL - ESCUTCHEON BACK

Note: Not illustrated

$

$

Not available

6

Toro 40-5940

SWITCH

$15.99

$

In Stock, Qty 11

0

7

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

8

Toro 52-5600

PIN-LEVER, CONTROL

$9.49

$

Usually ships in 3-6 days

0

9

Toro 47-4990

POST-MOUNTING, LINKAGE

$23.99

$

Usually ships in 3-6 days

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 63-3640

HANDLE-CONTROL
(Superseded to 94-8887-03)

$

$

Not available

13

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

14

Toro 74-1360

GRIP-HANDLE

$

$

Not available

15

Toro 52-5571

Handle-Left
(Superseded to 52-5571-03)

$

$

Not available

16

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

19

Toro 40-8230

GRIP-CONTROL, CHUTE

$14.99

$

Usually ships in 3-6 days

0

20

Toro 63-3510

DECAL-CHUTE DIRECTION

$4.99

$

Usually ships in 3-6 days

0

21

Toro 12-7739

Bracket-Chute Control (Incl. Ref.# 20 & 22)

$

$

Not available

22

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 16

0

23

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 43-7390

Wire Harness Asm. (Incl. Ref.# 3)

$

$

Not available

26

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

27

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 10

0

28

Toro 3290-196

NUT

$8.49

$

Usually ships in 3-6 days

0

29

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

30

Toro 3290-238

WASHER-LOCK

$3.49

$

Usually ships in 3-6 days

0

31

Toro 40-8280

BRACKET-WORM

$15.99

$

In Stock, only 1 left!

0

32

Toro 40-8250

GEAR-WORM, CHUTE

$13.99

$

In Stock, only 3 left!

0

33

Toro 32151-73

RING-CLIP

$2.99

$

In Stock, Qty 6

0

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 14

0
