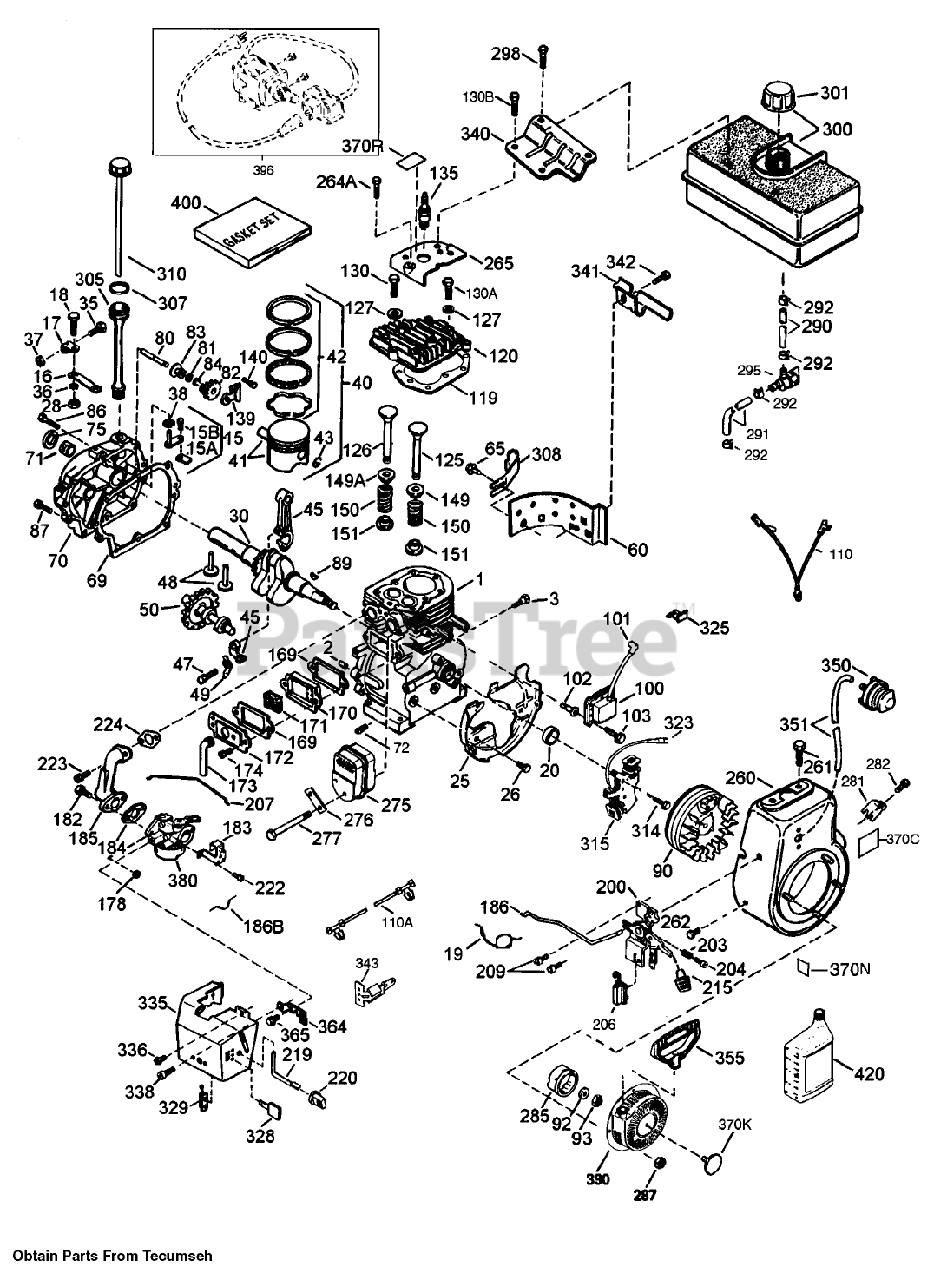

38066 (824 XL) - Toro 24" Power Throw Snow Thrower (SN: 210000001 - 210999999) (2001) Engine Tecumseh Model #hmsk80-155645v (model No. 38066 Only)(continued) Parts Diagram

24" Power Throw Snow Thrower

Engine Tecumseh Model #hmsk80-155645v (model No. 38066 Only)(continued) Parts Diagram

  • Title

1

Toro 35385

Cylinder Asm (Includes 2, 20, 72)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

3

Toro 650820

Screw (1/4-20x1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

15

Toro 30699C

Rod, Governor (Incl. Nos.62 63)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

15A

Toro 30700

Yoke-Governor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

15B

Toro 650494

Screw (6-40x5/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

16

Toro 33454

Lever-Governor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

17

Toro 29916

Clamp-Lever, Governor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

18

Toro 651028

Screw (T-15, 8-32x7/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

19

Toro 34663

Spring-Throttle

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

20

Toro 35319

Seal-Oil

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

25

Toro 36460

Baffle-Housing, Blower
(Superseded to 702114)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

26

Toro 650561

Screw (1/4-20x19/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

28

Toro 30322

Nut-Lock

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

30

Toro 35571A

Crankshaft

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

35

Toro 29826

Screw

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

36

Toro 29918

Washer-Lock

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

37

Toro 29216

Nut-Lock

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

38

Toro 29642

Ring-Retaining

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

40

Toro 40011

TANK PAD

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

40

Toro 40012

Piston- Pin and Ring Set (.010 O S)
(Superseded to 42329)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

41

Toro 40009

Piston and Pin ASM (STD) (Includes 43)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

41

Toro 40010

J-BOLT

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

42

Toro 40013

BUSHING TRANS 7/8 BORE

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

42

Toro 40014

BUSHING - ENG 1" BORE

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

43

Toro 27888

See Supercession: 702895
(Superseded to 702895)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

45

Toro 36897

Connecting Rod Asm (Includes 47, 49)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

47

Toro 651033

Bolt-Rod, Connecting

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

48

Toro 34034

Lifter-Valve

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

49

Toro 36896

Dipper-Oil

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

50

Toro 35375

Camshaft (MCR)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

60

Toro 33273A

Extension-Housing, Blower

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

65

Toro 650128

Screw

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

69

Toro 35262A

Gasket-Cover, Cylinder

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

69

Toro 35262A

Gasket-Cover, Cylinder

Note: Included in Gasket Set 36450

$

$

Currently unavailable

70

Toro 35376

Cover-Cylinder (Includes 71, 75, 80)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

71

Toro 35377

2025A77 WIZARD ROTA

Note: Obtain parts from www.tecumsehpower.com

$3.23

$

Usually ships in 3-6 days

0

72

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

75

Toro 35319

Seal-Oil

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

80

Toro 31845

Shaft-Governor
(Superseded to 704636)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

81

Toro 30590A

Washer-Flat

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

82

Toro 35378

Gear Assy., Governor (Incl. Ref. #45)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

83

Toro 30588A

Spool-Governor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

84

Toro 29193

Ring-Retaining

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

86

Toro 650833

Screw (1/4-20x1-3/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

87

Toro 650832

Screw (1/4-20x1-11/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

89

Toro 32589

Key-Flywheel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

90

Toro 611093

Flywheel ASM

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

92

Toro 650880

Washer-Belleville

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

93

Toro 650881

Nut-Flywheel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

100

Toro 35135

Solid State ASM

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

101

Toro 610118

Cover-Spark Plug

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

102

Toro 651024

Stud-Mounting, Solid State

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

103

Toro 651007

Screw (T-15, 10-24 x 15/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

110

Toro 35187

Wire-Ground
(Superseded to 702568)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

110A

Toro 37047

Wire-Ground

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

119

Toro 36448

Gasket-Head, Cylinder

Note: Included in Gasket Set 36450

$

$

Currently unavailable

119

Toro 36448

Gasket-Head, Cylinder

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

120

Toro 36449

Head-Cylinder
(Superseded to 704841)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

125

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

125

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

126

Toro 34035

Valve, Intake (Std.) (Incl. Ref. #58)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

126

Toro 34036

Valve, Intake (1/32" oversize) (Incl. Ref. #58)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

127

Toro 650691

Washer-Flat

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

130

Toro 6021A

Screw (5/16-18x1-1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

130A

Toro 650727

Screw (5/16-18x1-25/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

130B

Toro 651055

Screw (5/16-18x39/64)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

135

Toro 35395

Spark Plug-Resistor (R J19 L M)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

139

Toro 33369

Bracket-Gear, Governor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

140

Toro 650836

Screw (10-24x1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

149

Toro 27882

Cap-Spring, Valve

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

149A

Toro 35862

51106 GILSON ROTARY

Note: Obtain parts from www.tecumsehpower.com

$3.23

$

Usually ships in 3-6 days

0

150

Toro 27881

Spring-Valve

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

151

Toro 32581

Keeper-Spring, Valve

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

169

Toro 27896A

Gasket-Cover, Valve

Note: Included in Gasket Set 36450

$

$

Currently unavailable

169

Toro 27896A

Gasket-Cover, Valve

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

170

Toro 28423

Body-Breather
(Superseded to 704585)

Note: Obtain parts from www.tecumsehpower.com

$37.99

$

Usually ships in 3-6 days

0

171

Toro 28424

Element-Breather

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

172

Toro 28425

Cover-Valve

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

173

Toro 35350

Tube-Breather

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

174

Toro 650128

Screw

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

178

Toro 29752

Nut and Lock Washer (1/4-28)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

182

Toro 30088A

Screw (1/4-28x1)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

183

Toro 34587A

Bracket-Choke

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

184

Toro 33263

Gasket-Carburetor To Intake Pipe

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

184

Toro 33263

Gasket-Carburetor To Intake Pipe

Note: Included in Gasket Set 36450

$

$

Currently unavailable

185

Toro 33877

Pipe-Intake

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

186

Toro 34667

Link-Governor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

186B

Toro 36652

Spring-Choke

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

200

Toro 34677

Bracket-Control (Includes 19, 203, 204, 206)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

203

Toro 31342

Spring-Compression

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

204

Toro 651029

Screw (T-10, 5-40x7/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

206

Toro 610973

Terminal

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

207

Toro 33878

Link-Throttle

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

209

Toro 650821

Screw (10-32 x 1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

215

Toro 35440

Knob-Control

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

219

Toro 34586

Rod-Choke

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

220

Toro 35438

Knob-Control
(Superseded to 742440)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

222

Toro 28820

Screw (10-32 x 1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

223

Toro 650378

Screw (T-30, 5/16-18x1-3/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

224

Toro 27915A

Gasket-Pipe, Intake

Note: Included in Gasket Set 36450

$

$

Currently unavailable

224

Toro 27915A

Gasket-Pipe, Intake

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

260

Toro 35447A

Housing-Blower

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

261

Toro 650788

Screw (5/16-18x3/4)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

262

Toro 29747B

Screw

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

264A

Toro 650802

Screw (1/2-20x5/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

265

Toro 33272B

Cover-Cylinder Head

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

275

Toro 35056

Muffler

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

276

Toro 31588

62513 SNWTHWR W/284

Note: Obtain parts from www.tecumsehpower.com

$3.23

$

Usually ships in 3-6 days

0

277

Toro 651002

Screw (5/16-18x4-3/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

281

Toro 33013

Screw

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

282

Toro 650760

Screw (8-32 x 3/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

285

Toro 35985B

Cup-Starter

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

287

Toro 29752

Nut and Lock Washer (1/4-28)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

290

Toro 29774

Line-Fuel (8.62)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

291

Toro 30705

Line-Fuel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

292

Toro 26460

Clamp-Line, Fuel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

295

Toro 35857

Valve-Shut Off, Fuel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

298

Toro 650665

Screw (1/4-15x7/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

300

Toro 34156A

Tank-Fuel (Includes 292, 301)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

301

Toro 36246

Cap-Fuel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

305

Toro 35554

Tube-Fill, Oil

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

307

Toro 35499

O-Ring

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

308

Toro 35540

Clip-Tube, Fill
(Superseded to 742447)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

310

Toro 36205

Gauge Oil ASM

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

314

Toro 650873

Screw (1/4-20 x 3/4)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

315

Toro 611111

Coil-Alternator, 18 Watt (Includes 323)
(Superseded to 611113)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

323

Toro 611118

Terminal

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

325

Toro 29443

Clip-Wire

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

328

Toro 35062

Key-Ignition

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

329

Toro 610973

Terminal

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

335

Toro 35057A

Cover-Carburetor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

336

Toro 650765

Screw (10-32x1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

338

Toro 28942

Screw (10-32 x 3/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

340

Toro 34154

Bracket-Tank, Fuel (Black)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

341

Toro 34155

Bracket-Tank, Fuel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

342

Toro 650561

Screw (1/4-20x19/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

343

Toro 35079

Bracket-Switch, Key

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

350

Toro 570682A

Primer ASM

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

351

Toro 32180C

Line-Primer

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

355

Toro 590574

Handle-Starter, Mitten Grip

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

364

Toro 33377

Bracket-Carburetor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

365

Toro 650767

Screw (8-32x27/64)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

370C

Toro 36501

Decal-Primer, International Symbol

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

370K

Toro 36695

Decal-Tecumseh Logo for Top of Recoil Starter
(Superseded to 704857)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

370N

Toro 35077

Decal-Speed Control and Choke

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

370R

Toro 37119

Decal-Warning (Bilingual)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

380

Toro 640052

Carburetor ASM

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

390

Toro 590749

Starter-Rewind

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

396

Toro 37000

Electric Starter Motor, 120 Volt (Optional)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

400

Toro 36450A

Gasket Set

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

420

Toro 730226

Oil-Engine (SAE 5W30)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable
