38070 (1032) - Toro 32" Snow Thrower (SN: 008000001 - 008999999) (1978) STARTER MOTOR KIT MODEL 23-4420 (8 H.P. SNOWTHROWER MODEL 38060) Parts Diagram

32" Snow Thrower

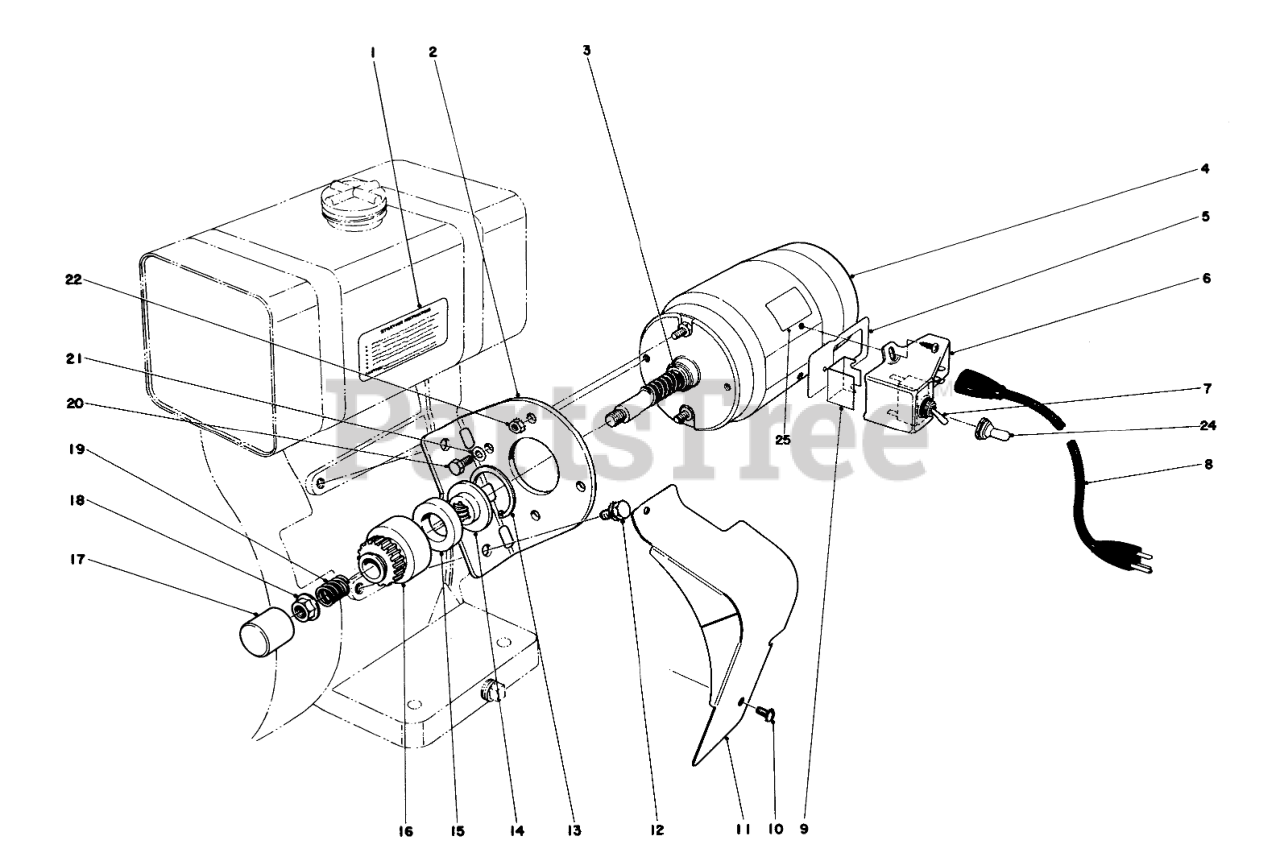

STARTER MOTOR KIT MODEL 23-4420 (8 H.P. SNOWTHROWER MODEL 38060) Parts Diagram

  • Title

1

Toro 21-5140

Instruction Decal

$

$

Not available

2

Toro 20-7090

Mounting Bracket

$

$

Currently unavailable

3

Toro 23-9590

Spacer
(Superseded to 23-9591)

$

$

Not available

4

Starter Motor

Note: Not available, for reference only.

$

$

Not available

5

Toro 23-7680

GASKET

$

$

Not available

6

Toro 25-9970

Switch & Plug Housing

$

$

Not available

7

Toro 6-1659

SWITCH & BOOT ASM

$79.99

$

Usually ships in 3-6 days

0

8

Toro 20-7050

Cord

$

$

Not available

9

Toro 20-7170

SWITCH INSULATOR

$

$

Not available

10

Toro 32108-57

Hex Hd. Sems Screw

$

$

Not available

11

Toro 20-7060

Pinion Shield

$

$

Not available

12

Toro 32140-45

Screw-HH

$5.99

$

Usually ships in 3-6 days

0

13

Toro 32151-42

Retaining Clip

$

$

Not available

14

Toro 20-7140

Pinion Nut
(Superseded to 25-4000)

$

$

Not available

15

Toro 5-4724

RUBBER RING

$

$

Not available

16

Toro 20-7130

PINION 16 TOOTH

$

$

Not available

17

Toro 20-7960

WEATHER CAP

$

$

Not available

18

Toro 32128-16

NUT-HHF

$0.99

$

In Stock, only 3 left!

0

19

Toro 20-7120

COMPRESSION SPRING

$

$

Not available

20

Toro 3290-237

SLOT HD SCREW

$0.99

$

Usually ships in 3-6 days

0

21

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

22

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

24

Toro 218-473

BOOT-SWITCH

$20.99

$

Usually ships in 3-6 days

0

25

Toro 23-8640

Decal

$

$

Currently unavailable

Toro 23-4420

Starter Motor Kit Canada

Note: Not illustrated

$

$

Currently unavailable

Toro 20-7110

Pinion Assembly (Incl. Ref. Nos. 13 thru 16)

Note: Not illustrated

$

$

Not available
