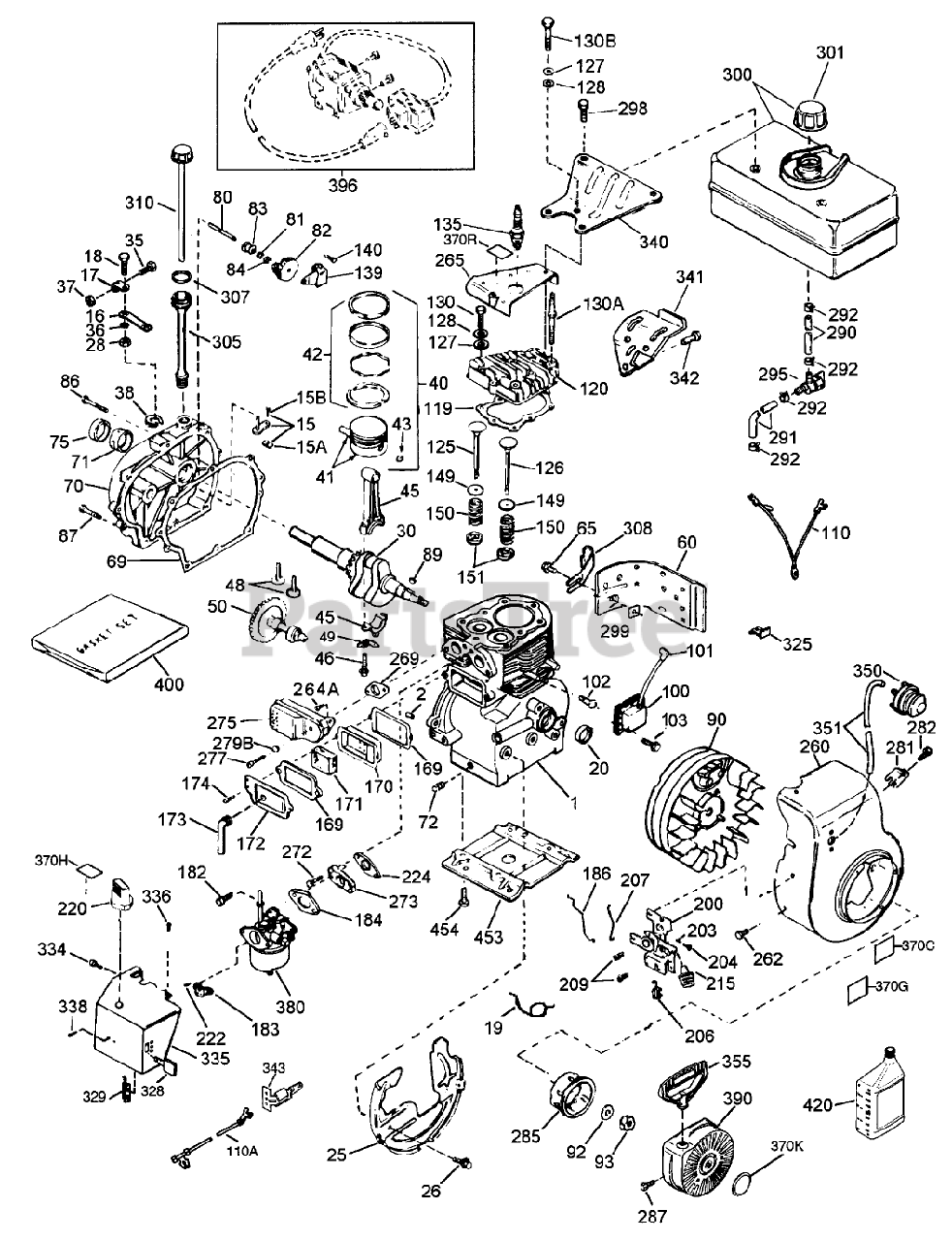

Engine Tecumseh Model Hsk70-130302u (continued) Parts Diagram

  • Title

1

Toro 32586C

Cylinder Assy. (Incl. Ref. #2, 3 4)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

15

Toro 30699C

Rod, Governor (Incl. Nos.62 63)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

15A

Toro 30700

Yoke-Governor

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

15B

Toro 650494

Screw (6-40x5/16)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

16

Toro 33454

Lever-Governor

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

17

Toro 29916

Clamp-Lever, Governor

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

18

Toro 651028

Screw (T-15, 8-32x7/16)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

19

Toro 34663

Spring-Throttle

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

20

Toro 32630

Oil Seal

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

25

Toro 36460

Baffle-Housing, Blower
(Superseded to 702114)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

26

Toro 650561

Screw (1/4-20x19/32)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

28

Toro 30322

Nut-Lock

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

30

Toro 35272

Crankshaft

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

35

Toro 29826

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

36

Toro 29918

Washer-Lock

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

37

Toro 29216

Nut-Lock

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

38

Toro 29642

Ring-Retaining

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

40

Toro 34517

Piston, Pin Ring Assy. (Std.) (Incl. Ref. #19A, 20 21)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

40

Toro 34518

Piston, Pin Ring Assy. (.010 oversize) (Incl. Ref. #19A, 20 21 )

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

40

Toro 34519

Piston, Pin Ring Assy. (.020 oversize) (Incl. Ref. #19A, 20 21)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

41

Toro 32592B

Piston Pin Assy. (Std.) (Incl. Ref. #20)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

41

Toro 32593B

Piston Pin Assy. (.010 oversize) (Incl. Ref. #20)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

41

Toro 32594B

Piston Pin Assy-. (.020 oversize) (Incl. Ref. #20)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

42

Toro 34595

Ring Set (Std.)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

42

Toro 34596

Mudguard R.H.

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

42

Toro 34597

Mudguard L.H.

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

43

Toro 27888

See Supercession: 702895
(Superseded to 702895)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

45

Toro 32591C

Rod Assy., Connecting (Incl. Nos. 10 18)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

46

Toro 650662C

Bolt-Connecting Rod

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

48

Toro 34034

Lifter-Valve

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

49

Toro 34242

Dipper-Oil

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

50

Toro 32115

Camshaft

Note: Note: Order individual parts from your local Tecumseh dealer.

$1.49

$

In Stock, Qty 11

0

60

Toro 30622A

Extension-Blower Hsng.

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

65

Toro 650128

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

69

Toro 30684

Gasket-Cover, Cylinder

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

70

Toro 31303C

Cylinder Cover (Incl. Ref. #71, 75, 80)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

70

Toro 31303C

Cylinder Cover (Incl. Ref. #71, 75, 80)

Note: Included in Gasket Set Fief. Num 400.

$

$

Currently unavailable

71

Toro 31546

Bushing-Crankshaft

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

72

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

75

Toro 28427

Oil Seal

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

80

Toro 31845

Shaft-Governor
(Superseded to 704636)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

81

Toro 30590A

Washer-Flat

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

82

Toro 30591

Governor Gear ASM

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

83

Toro 30588A

Spool-Governor

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

84

Toro 29193

Ring-Retaining

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

86

Toro 650488

Screw (1/4-20 x 1-1/4)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

87

Toro 650493

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

90

Toro 611085

Flywheel

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

92

Toro 650815

Washer-Belleville

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

93

Toro 8116

DISCONTINUED

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

100

Toro 34443B

Solid State Ignition (Incl. 101)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

101

Toro 610118

Cover-Spark Plug

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

102

Toro 651024

Stud-Mounting, Solid State

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

103

Toro 651007

Screw (T-15, 10-24 x 15/16)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

110

Toro 35253

Ground Wire

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

110A

Toro 37047

Wire-Ground

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

119

Toro 36453

Cylinder Head Gasket

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

119

Toro 36453

Cylinder Head Gasket

Note: Included in Gasket Set Fief. Num 400.

$

$

Currently unavailable

120

Toro 36446

Cylinder Head (Incl. 3 of 131)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

125

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

125

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

126

Toro 32784

Valve, Intake (1/32" oversize)(Incl. No. 9)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

126

Toro 32783

Valve, Intake (Standard)(Incl. No. 9)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

127

Toro 650691

Washer-Flat

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

128

Toro 650690

Washer-Belleville

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

130

Toro 650697A

Screw (5/16-18 X 2-1/2)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

130A

Toro 650697A

Screw (5/16-18 X 2-1/2)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

130B

Toro 650697A

Screw (5/16-18 X 2-1/2)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

135

Toro 35395

Spark Plug-Resistor (R J19 L M)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

139

Toro 31843A

Bracket, Governor

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

140

Toro 650965

Screw, Torx T-25

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

149

Toro 27882

Cap-Spring, Valve

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

150

Toro 27881

Spring-Valve

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

151

Toro 32581

Keeper-Spring, Valve

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

169

Toro 27896A

Gasket-Cover, Valve

Note: Included in Gasket Set Fief. Num 400.

$

$

Currently unavailable

169

Toro 27896A

Gasket-Cover, Valve

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

170

Toro 28423

Body-Breather
(Superseded to 704585)

Note: Note: Order individual parts from your local Tecumseh dealer.

$37.99

$

Usually ships in 3-6 days

0

171

Toro 28424

Element-Breather

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

172

Toro 28425

Cover-Valve

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

173

Toro 35350

Tube-Breather

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

174

Toro 650128

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

182

Toro 650517

Screw (T-30, 1/4-20 X 27-32)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

183

Toro 32398

Bracket-Choke

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

184

Toro 1PK

Carburetor To Intake Pipe Gasket

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

184

Toro 1PK

Carburetor To Intake Pipe Gasket

Note: Included in Gasket Set Fief. Num 400.

$

$

Currently unavailable

186

Toro 34661

Governor Link

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

200

Toro 34677

Bracket-Control (Includes 19, 203, 204, 206)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

203

Toro 31342

Spring-Compression

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

204

Toro 651029

Screw (T-10, 5-40x7/16)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

206

Toro 610973

Terminal

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

207

Toro 34662

Link-Throttle

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

209

Toro 650821

Screw (10-32 x 1/2)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

215

Toro 35440

Knob-Control

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

220

Toro 35439

Knob-Choke

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

222

Toro 28820

Screw (10-32 x 1/2)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

224

Toro 27915A

Gasket-Pipe, Intake

Note: Included in Gasket Set Ref. Num 400.

$

$

Currently unavailable

224

Toro 27915A

Gasket-Pipe, Intake

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

260

Toro 36254

Blower Housing

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

262

Toro 29747B

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

264A

Toro 30196

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

265

Toro 30939A

Cover-Head, Cylinder

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

269

Toro 35865

Gasket-Exhaust

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

272

Toro 30196

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

273

Toro 34712

481-1279 SENATOR RO

Note: Note: Order individual parts from your local Tecumseh dealer.

$3.23

$

Usually ships in 3-6 days

0

275

Toro 32401

Muffler

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

277

Toro 650694A

Screw (5/16-18 X 2)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

279B

Toro 26073

Washer

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

281

Toro 33013

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

282

Toro 650760

Screw (8-32 x 3/8)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

285

Toro 35287A

Starter Cup

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

287

Toro 650926

Screw (8-32 x 21/64)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

290

Toro 29774

Line-Fuel (8.62)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

291

Toro 30962

Line-Fuel

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

292

Toro 26460

Clamp-Line, Fuel

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

295

Toro 35857

Valve-Shut Off, Fuel

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

298

Toro 650665

Screw (1/4-15x7/8)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

299

Toro 650764

Nut-U Type

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

300

Toro 34186A

Fuel Tank (Incl. Ref. #292 301)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

301

Toro 36246

Cap-Fuel

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

305

Toro 35554

Tube-Fill, Oil

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

307

Toro 35499

O-Ring

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

308

Toro 35540

Clip-Tube, Fill
(Superseded to 742447)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

310

Toro 36205

Gauge Oil ASM

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

325

Toro 29443

Clip-Wire

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

329

Toro 610973

Terminal

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

334

Toro 650257

Screw (8-32 X 5/16)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

335

Toro 35060

Carburetor Cover

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

336

Toro 650765

Screw (10-32x1/2)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

338

Toro 650760

Screw (8-32 x 3/8)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

340

Toro 34159

Bracket-Fuel Tank

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

341

Toro 34158

Bracket-Fuel Tank

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

342

Toro 650561

Screw (1/4-20x19/32)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

343

Toro 35079

Bracket-Switch, Key

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

350

Toro 570682A

Primer ASM

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

351

Toro 32180C

Line-Primer

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

355

Toro 590574

Handle-Starter, Mitten Grip

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

370C

Toro 36501

Decal-Primer, International Symbol

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

370G

Toro 35063

Instruction Decal

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

370H

Toro 34418

Choke Decal

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

370K

Toro 36695

Decal-Tecumseh Logo for Top of Recoil Starter
(Superseded to 704857)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

370R

Toro 37119

Decal-Warning (Bilingual)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

380

Toro 640082

Carburetor (Incl. Ref. #1-48)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

390

Toro 590742

Starter-Rewind

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

396

Toro 33328D

Electric Starter Motor (110 Volt)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

400

Toro 364454

Gasket Set

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

420

Toro 730225

4 Cycle Oil, SAE 30 (Quart)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

453

Toro 29538

Base Engine

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

454

Toro 650542

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable
