38073 (724) - Toro 24" Snow Thrower (SN: 069000001 - 069999999) (1996) Carburetor No. 632371a Parts Diagram

24" Snow Thrower

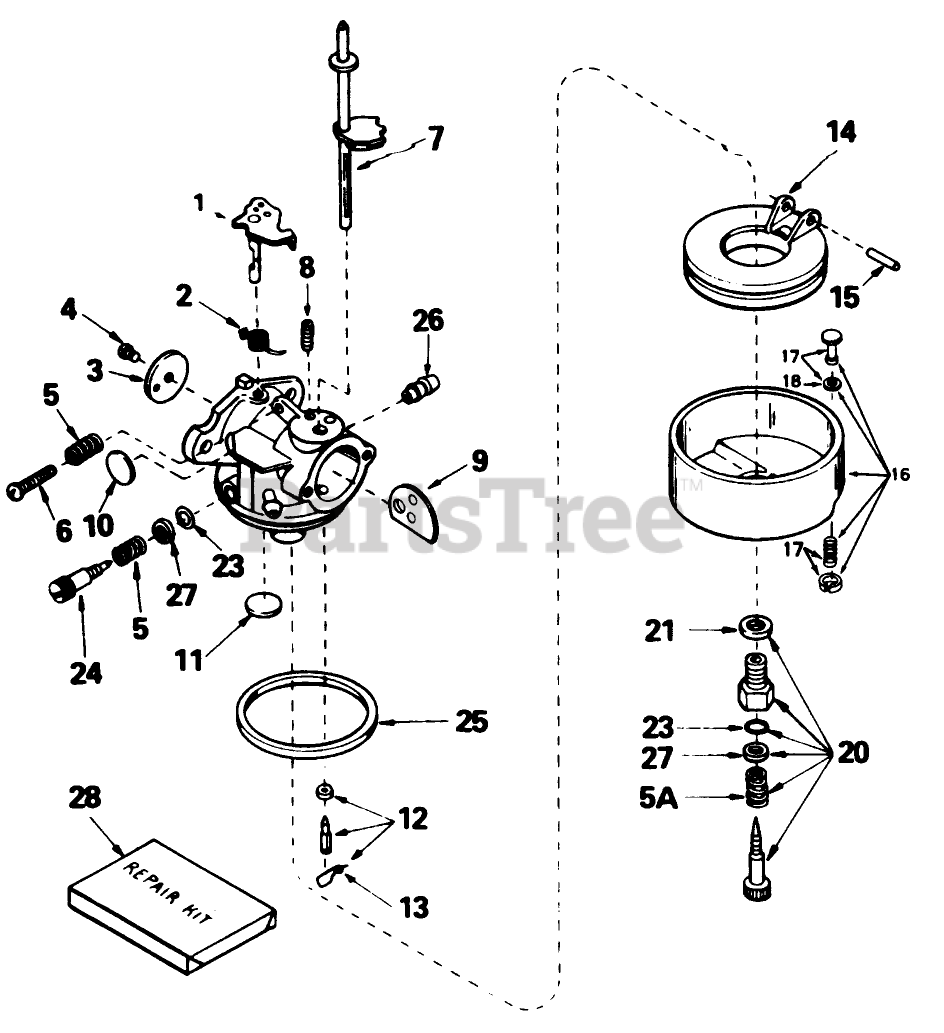

Carburetor No. 632371a Parts Diagram

  • Title

1

Toro 31834

Shaft/Lever-Throttle

$

$

Currently unavailable

2

Toro 631767

Spring-Return, Throttle

$

$

Currently unavailable

3

Toro 631036

Shutter-Throttle

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

5

Toro 630766

Spring-Tension

$

$

Currently unavailable

5A

Toro 630738

Spring

$

$

Currently unavailable

6

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

7

Toro 632373

Shaft-Choke

$

$

Currently unavailable

8

Toro 630735

Spring-Positioning, Choke

$

$

Currently unavailable

9

Toro 632372

Shutter-Choke

$

$

Currently unavailable

10

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Included in Repair Kit Part No. 31840.

$

$

Currently unavailable

11

Toro 631027

Plug-Welch, Atmospheric Vent

Note: Included in Repair Kit Part No. 31840.

$

$

Currently unavailable

12

Toro 631021

Inlet Needle, Seat Clip Assy. (Incl. No. 13)

Note: Included in Repair Kit Part No. 31840.

$

$

Currently unavailable

13

Toro 631022

Clip-Spring

$

$

Currently unavailable

14

Toro 632019

Float

$

$

Currently unavailable

15

Toro 631024

Shaft-Float

Note: Included in Repair Kit Part No. 31840.

$

$

Currently unavailable

16

Toro 631951

Float Bowl Asm. (Incl. Ref. # 32, 33)

$

$

Currently unavailable

17

Toro 27136A

Bowl Drain ASM

$

$

Currently unavailable

18

Toro 27554

Gasket-Plunger, Drain

$

$

Currently unavailable

20

Toro 31839

Adjustment Screw Assy., Main (Incl. Nos. 5A, 21 23)

Note: Included in Repair Kit Part No. 31840.

$

$

Currently unavailable

21

Toro 27110

Washer-Bowl Nut

$

$

Currently unavailable

23

Toro 630740

ORing

Note: Included in Repair Kit Part No. 31840.

$

$

Currently unavailable

24

Toro 631838

Screw-Idle

Note: Included in Repair Kit Part No. 31840.

$

$

Currently unavailable

25

Toro 631028

O Ring-Bowl, Float

Note: Included in Repair Kit Part No. 31840.

$

$

Currently unavailable

26

Toro 632164

Fitting-Fuel

$

$

Currently unavailable

27

Toro 630739

Washer

$

$

Currently unavailable

28

Toro 31840

Repair Kit (Incl. items marked *)

$

$

Currently unavailable

Toro 632371A

Carburetor (Incl. Ref. #184)

Note: Not illustrated

$

$

Currently unavailable
