38080 (824) - Toro 24" Snow Thrower (SN: 006000001 - 006999999) (1986) Carburetor No. 632334 Parts Diagram

24" Snow Thrower

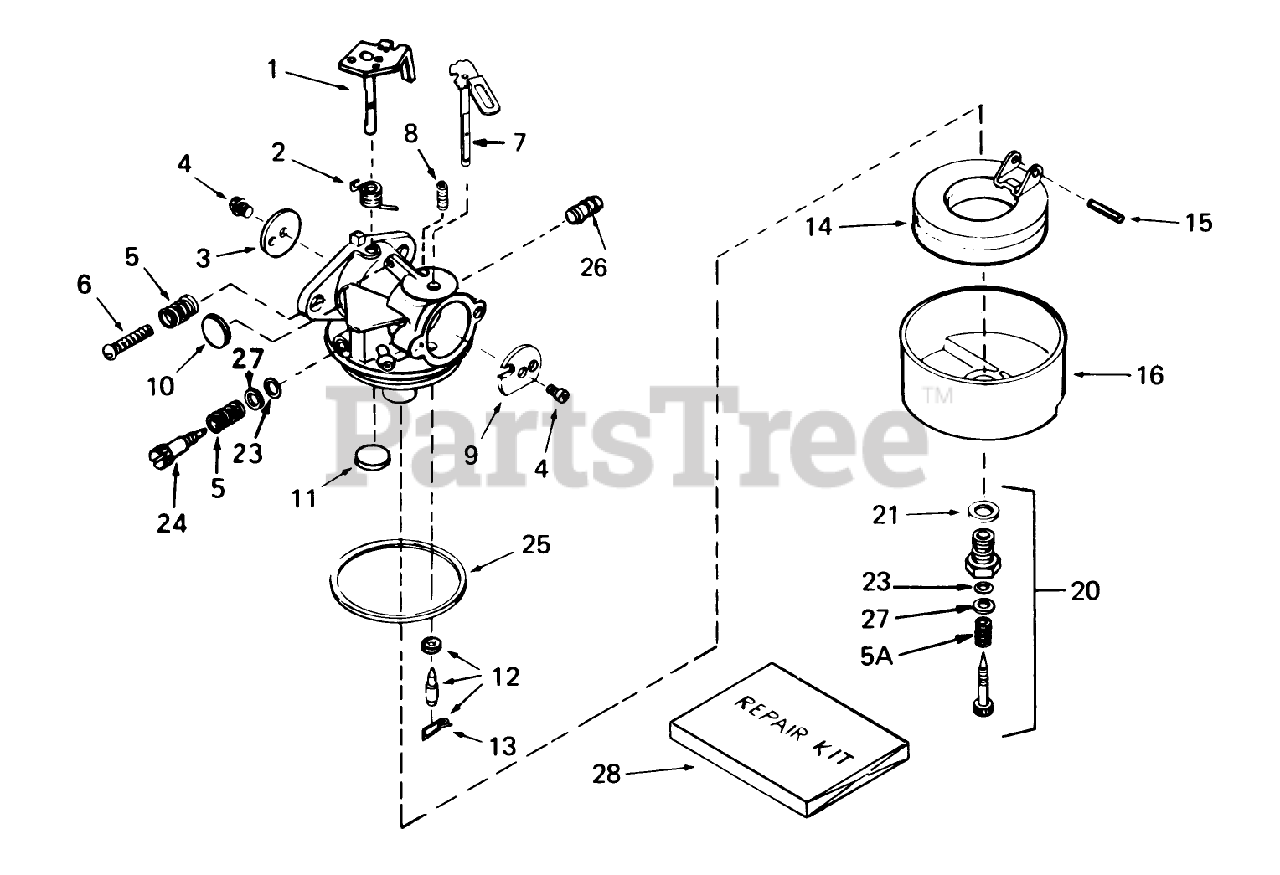

Carburetor No. 632334 Parts Diagram

  • Title

1

Toro 631776

Shaft/Lever-Throttle

$

$

Currently unavailable

2

Toro 631970

Spring-Return, Throttle

$

$

Currently unavailable

3

Toro 631778

Shutter-Throttle

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

5

Toro 630766

Spring-Tension

$

$

Currently unavailable

5A

Toro 630738

Spring

$

$

Currently unavailable

6

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

7

Toro 632112

Choke Shaft and Lever ASM

$

$

Currently unavailable

8

Toro 630735

Spring-Positioning, Choke

$

$

Currently unavailable

9

Toro 632174

Shutter-Choke

$

$

Currently unavailable

10

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Included in Repair Kit, Ref Num 28

$

$

Currently unavailable

11

Toro 631027

Plug-Welch, Atmospheric Vent

Note: Included in Repair Kit, Ref Num 28

$

$

Currently unavailable

12

Toro 631021

Inlet Needle, Seat Clip Assy. (Incl. No. 13)

Note: Included in Repair Kit, Ref Num 28

$

$

Currently unavailable

13

Toro 631022

Clip-Spring

$

$

Currently unavailable

14

Toro 632019

Float

$

$

Currently unavailable

15

Toro 631024

Shaft-Float

Note: Included in Repair Kit, Ref Num 28

$

$

Currently unavailable

16

Toro 631867

Bowl-Float (no drain)

$

$

Currently unavailable

20

Toro 632239

Adjustment Screw Assy.,Main (Incl. Ref. #5A,21,23 30)

Note: Included in Repair Kit, Ref Num 28

$

$

Currently unavailable

21

Toro 27110

Washer-Bowl Nut

$

$

Currently unavailable

23

Toro 630740

ORing

Note: Included in Repair Kit, Ref Num 28

$

$

Currently unavailable

24

Toro 630898

Screw Main Adjustment

Note: Included in Repair Kit, Ref Num 28

$

$

Currently unavailable

25

Toro 631028

O Ring-Bowl, Float

Note: Included in Repair Kit, Ref Num 28

$

$

Currently unavailable

26

Toro 632164

Fitting-Fuel

$

$

Currently unavailable

27

Toro 630739

Washer

$

$

Currently unavailable

28

Toro 632240

Repair Kit

$

$

Currently unavailable
