38080 (824) - Toro 24" Snow Thrower (SN: 007000001 - 007999999) (1987) Engine Tecumseh Model No. Hm80-155291l Parts Diagram

24" Snow Thrower

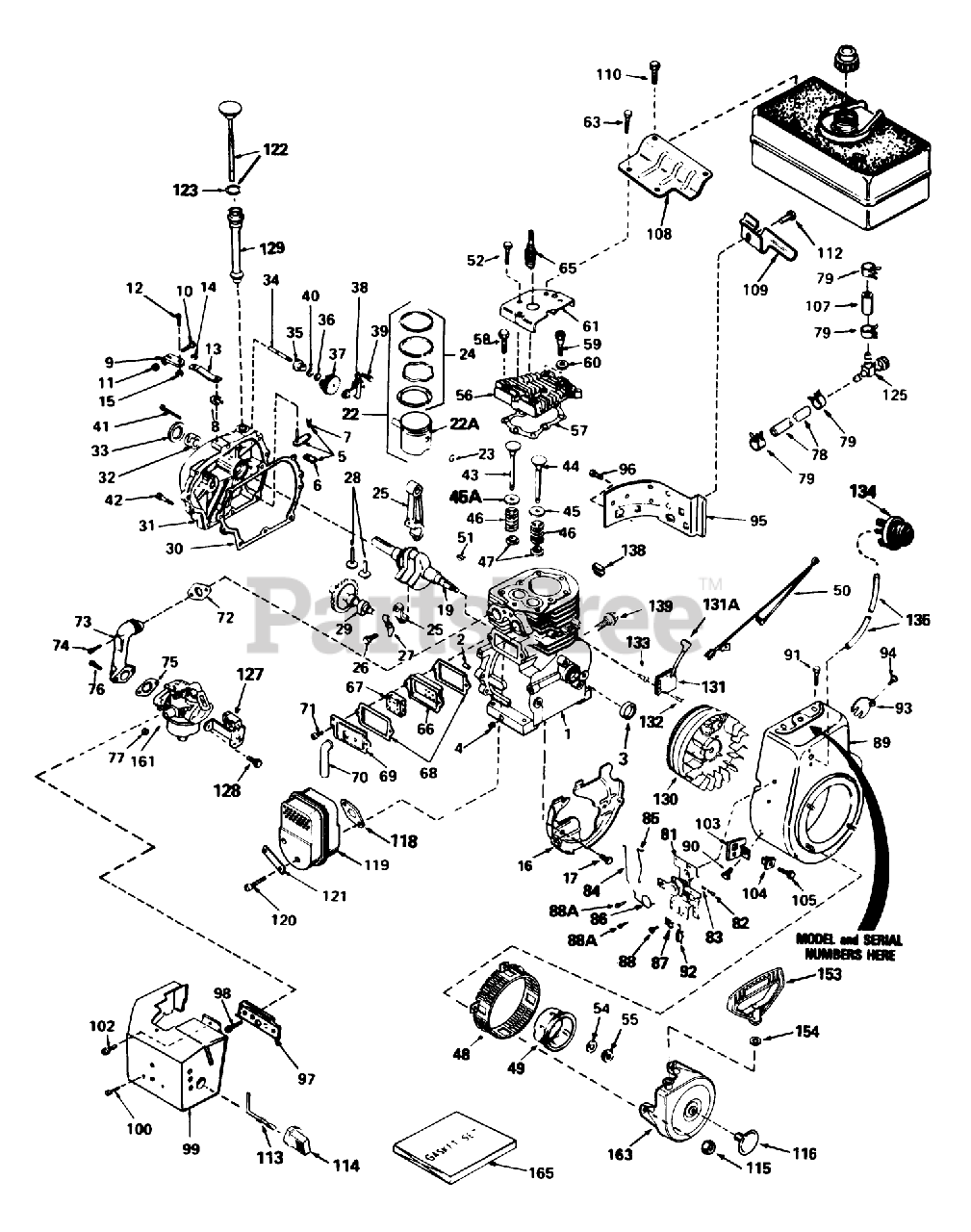

Engine Tecumseh Model No. Hm80-155291l Parts Diagram

  • Title

1

Toro 35385

Cylinder Asm (Includes 2, 20, 72)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

3

Toro 35319

Seal-Oil

$

$

Currently unavailable

4

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

5

Toro 30699C

Rod, Governor (Incl. Nos.62 63)

$

$

Currently unavailable

6

Toro 30700

Yoke-Governor

$

$

Currently unavailable

7

Toro 650494

Screw (6-40x5/16)

$

$

Currently unavailable

8

Toro 29642

Ring-Retaining

$

$

Currently unavailable

9

Toro 29916

Clamp-Lever, Governor

$

$

Currently unavailable

10

Toro 29826

Screw

$

$

Currently unavailable

11

Toro 29216

Nut-Lock

$

$

Currently unavailable

12

Toro 650548

Screw

$

$

Currently unavailable

13

Toro 33454

Lever-Governor

$

$

Currently unavailable

14

Toro 29918

Washer-Lock

$

$

Currently unavailable

15

Toro 30322

Nut-Lock

$

$

Currently unavailable

16

Toro 35326

Baffle-Blower Housing
(Superseded to 704742)

$

$

Not available

17

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

19

Toro 35372

Crankshaft

$

$

Currently unavailable

22

Toro 34552

Piston, Pin Ring Assy.(Std.) (Incl. Ref. #24A, 25 26)

$

$

Currently unavailable

22

Toro 34553

Piston, Pin Ring Assy. (.010 oversize) (Incl. Ref. #24A, 25 26)

$

$

Currently unavailable

22

Toro 34554

Piston, Pin Ring Assy. (.020 oversize) (Incl. Ref. #24A, 25 26)

$

$

Currently unavailable

22A

Toro 34329A

Piston Pin Assy. (Std.) (Incl. Ref. #26)

$

$

Currently unavailable

22A

Toro 34330A

Piston Pin Assy. (.010 oversize) (Incl. Ref. #26)

$

$

Currently unavailable

22A

Toro 34331A

Piston Pin Assy. (.020 oversize) (Incl. Ref. #26)

$

$

Currently unavailable

23

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

24

Toro 34332

Ring Set (Std.)

$

$

Currently unavailable

24

Toro 34333

Ring Set (.010" OS)

$

$

Currently unavailable

24

Toro 34334

Ring Set (.020" OS)

$

$

Currently unavailable

25

Toro 35373

Rod Assy., Connecting (Incl. Ref. #26 27)

$

$

Currently unavailable

26

Toro 650882

Bolt-Rod

$

$

Currently unavailable

27

Toro 35374

Dipper-Oil

$

$

Currently unavailable

28

Toro 34034

Lifter-Valve

$

$

Currently unavailable

29

Toro 35375

Camshaft (MCR)

$

$

Currently unavailable

30

Toro 35262

Cylinder Cover Gasket

Note: Indicates parts included in Gasket Set, Ref. No. 165

$

$

Currently unavailable

31

Toro 35376

Cover-Cylinder (Includes 71, 75, 80)

$

$

Currently unavailable

32

Toro 35377

2025A77 WIZARD ROTA

$3.23

$

Usually ships in 3-6 days

0

33

Toro 35319

Seal-Oil

$

$

Currently unavailable

34

Toro 31845

Shaft-Governor
(Superseded to 704636)

$

$

Not available

35

Toro 30588A

Spool-Governor

$

$

Currently unavailable

36

Toro 29193

Ring-Retaining

$

$

Currently unavailable

37

Toro 35378

Gear Assy., Governor (Incl. Ref. #45)

$

$

Currently unavailable

38

Toro 33369

Bracket-Gear, Governor

$

$

Currently unavailable

39

Toro 650836

Screw (10-24x1/2)

$

$

Currently unavailable

40

Toro 30590A

Washer-Flat

$

$

Currently unavailable

41

Toro 650833

Screw (1/4-20x1-3/16)

$

$

Currently unavailable

42

Toro 650832

Screw (1/4-20x1-11/16)

$

$

Currently unavailable

43

Toro 34035

Valve, Intake (Std.) (Incl. Ref. #58)

$

$

Currently unavailable

43

Toro 34036

Valve, Intake (1/32" oversize) (Incl. Ref. #58)

$

$

Currently unavailable

44

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

$

$

Currently unavailable

44

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

45

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

45A

Toro 34689

Seal-Intake Valve

$

$

Currently unavailable

46

Toro 27881

Spring-Valve

$

$

Currently unavailable

47

Toro 32581

Keeper-Spring, Valve

$

$

Currently unavailable

48

Toro 35446

Screen-Starter

$

$

Currently unavailable

49

Toro 35287

Cup-Starter

$

$

Currently unavailable

50

Toro 35253

Ground Wire

$

$

Currently unavailable

51

Toro 32589

Key-Flywheel

$

$

Currently unavailable

52

Toro 650738

Screw (1/4-20 X 5/8)

$

$

Currently unavailable

54

Toro 650880

Washer-Belleville

$

$

Currently unavailable

55

Toro 650881

Nut-Flywheel

$

$

Currently unavailable

56

Toro 34030

Head Cylinder

$

$

Currently unavailable

57

Toro 34041

Gasket-Cylinder Head

Note: Indicates parts included in Gasket Set, Ref. No. 165

$

$

Currently unavailable

58

Toro 6021A

Screw (5/16-18x1-1/2)

$

$

Currently unavailable

59

Toro 650727

Screw (5/16-18x1-25/32)

$

$

Currently unavailable

60

Toro 650691

Washer-Flat

$

$

Currently unavailable

61

Toro 33272A

Cover-Cylinder Head

$

$

Currently unavailable

63

Toro 650713

Screw

$

$

Currently unavailable

65

Toro 35395

Spark Plug-Resistor (R J19 L M)

$

$

Currently unavailable

66

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

67

Toro 28424

Element-Breather

$

$

Currently unavailable

68

Toro 27896

Gasket-Breather

Note: Indicates parts included in Gasket Set, Ref. No. 165

$

$

Currently unavailable

69

Toro 28425

Cover-Valve

$

$

Currently unavailable

70

Toro 27627

Tube-Breather

$

$

Currently unavailable

71

Toro 650128

Screw

$

$

Currently unavailable

72

Toro 27915

Gasket-Intake

Note: Indicates parts included in Gasket Set, Ref. No. 165

$

$

Currently unavailable

73

Toro 33877

Pipe-Intake

$

$

Currently unavailable

74

Toro 650378

Screw (T-30, 5/16-18x1-3/32)

$

$

Currently unavailable

75

Toro 33263

Gasket-Carburetor To Intake Pipe

Note: Indicates parts included in Gasket Set, Ref. No. 165

$

$

Currently unavailable

76

Toro 30088A

Screw (1/4-28x1)

$

$

Currently unavailable

77

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

78

Toro 30705

Line-Fuel

$

$

Currently unavailable

79

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

81

Toro 34664

Control Assy., Remote Speed (Incl. Ref. #90 thru 93)

$

$

Currently unavailable

82

Toro 650549

Screw

$

$

Currently unavailable

83

Toro 31342

Spring-Compression

$

$

Currently unavailable

84

Toro 34667

Link-Governor

$

$

Currently unavailable

85

Toro 33878

Link-Throttle

$

$

Currently unavailable

86

Toro 34663

Spring-Throttle

$

$

Currently unavailable

87

Toro 27793

Conduit

$

$

Currently unavailable

88

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

88A

Toro 650821

Screw (10-32 x 1/2)

$

$

Currently unavailable

89

Toro 34822A

Housing-Blower

$

$

Currently unavailable

90

Toro 29747B

Screw

$

$

Currently unavailable

91

Toro 650788

Screw (5/16-18x3/4)

$

$

Currently unavailable

92

Toro 610973

Terminal

$

$

Currently unavailable

93

Toro 33013

Screw

$

$

Currently unavailable

94

Toro 650760

Screw (8-32 x 3/8)

$

$

Currently unavailable

95

Toro 33273A

Extension-Housing, Blower

$

$

Currently unavailable

96

Toro 650128

Screw

$

$

Currently unavailable

97

Toro 33377

Bracket-Carburetor

$

$

Currently unavailable

98

Toro 650767

Screw (8-32x27/64)

$

$

Currently unavailable

99

Toro 35057

Cover-Carburetor

$

$

Currently unavailable

100

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

102

Toro 650765

Screw (10-32x1/2)

$

$

Currently unavailable

103

Toro 34126

Bracket

$

$

Currently unavailable

104

Toro 28545

Grommet

$

$

Currently unavailable

105

Toro 650643

Screw

$

$

Currently unavailable

107

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

108

Toro 34154

Bracket-Tank, Fuel (Black)

$

$

Currently unavailable

109

Toro 34155

Bracket-Tank, Fuel

$

$

Currently unavailable

110

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

112

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

113

Toro 34586

Rod-Choke

$

$

Currently unavailable

114

Toro 35438

Knob-Control
(Superseded to 742440)

$

$

Not available

115

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

116

Toro 35392

Plug Starter

$

$

Currently unavailable

118

Toro 27930

Gasket Exhaust

Note: Indicates parts included in Gasket Set, Ref. No. 165

$

$

Currently unavailable

119

Toro 35056

Muffler

$

$

Currently unavailable

120

Toro 792093

Screw

$

$

Currently unavailable

121

Toro 31588

62513 SNWTHWR W/284

$3.23

$

Usually ships in 3-6 days

0

122

Toro 34011

A Dipstick, Oil (Incl. Ref. #88)

$

$

Currently unavailable

123

Toro 33590

O-Ring
(Superseded to 700165)

$3.99

$

Usually ships in 3-6 days

0

125

Toro 32961

Valve-Shut Off

$

$

Currently unavailable

127

Toro 34587

Bracket-Choke

$

$

Currently unavailable

128

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

129

Toro 33893A

Tube Fill

$

$

Currently unavailable

130

Toro 611091

Flywheel (W/Ring Gear)

$

$

Currently unavailable

131

Toro 35135

Solid State ASM

$

$

Currently unavailable

131A

Toro 10118

Cover, Spark Plug

$

$

Currently unavailable

132

Toro 650814

Screw

$

$

Currently unavailable

133

Toro 650872

Stud

$

$

Currently unavailable

134

Toro 34814

Primer Assy.

$

$

Currently unavailable

135

Toro 32180C

Line-Primer

$

$

Currently unavailable

138

Toro 29443

Clip-Wire

$

$

Currently unavailable

139

Toro 650820

Screw (1/4-20x1/2)

$

$

Currently unavailable

153

Toro 590574

Handle-Starter, Mitten Grip

$

$

Currently unavailable

154

Toro 650168

Washer

$

$

Currently unavailable

161

Toro 632334

Carburetor (Incl. Ref. #75)

$

$

Currently unavailable

163

Toro 590630

Starter-Rewind

$

$

Currently unavailable

165

Toro 33279D

Gasket Set

$

$

Currently unavailable
