38080 (824) - Toro 24" Snow Thrower (SN: 007000001 - 007999999) (1987) GRADER BLADE ASSEMBLY MODEL 59099 Parts Diagram

24" Snow Thrower

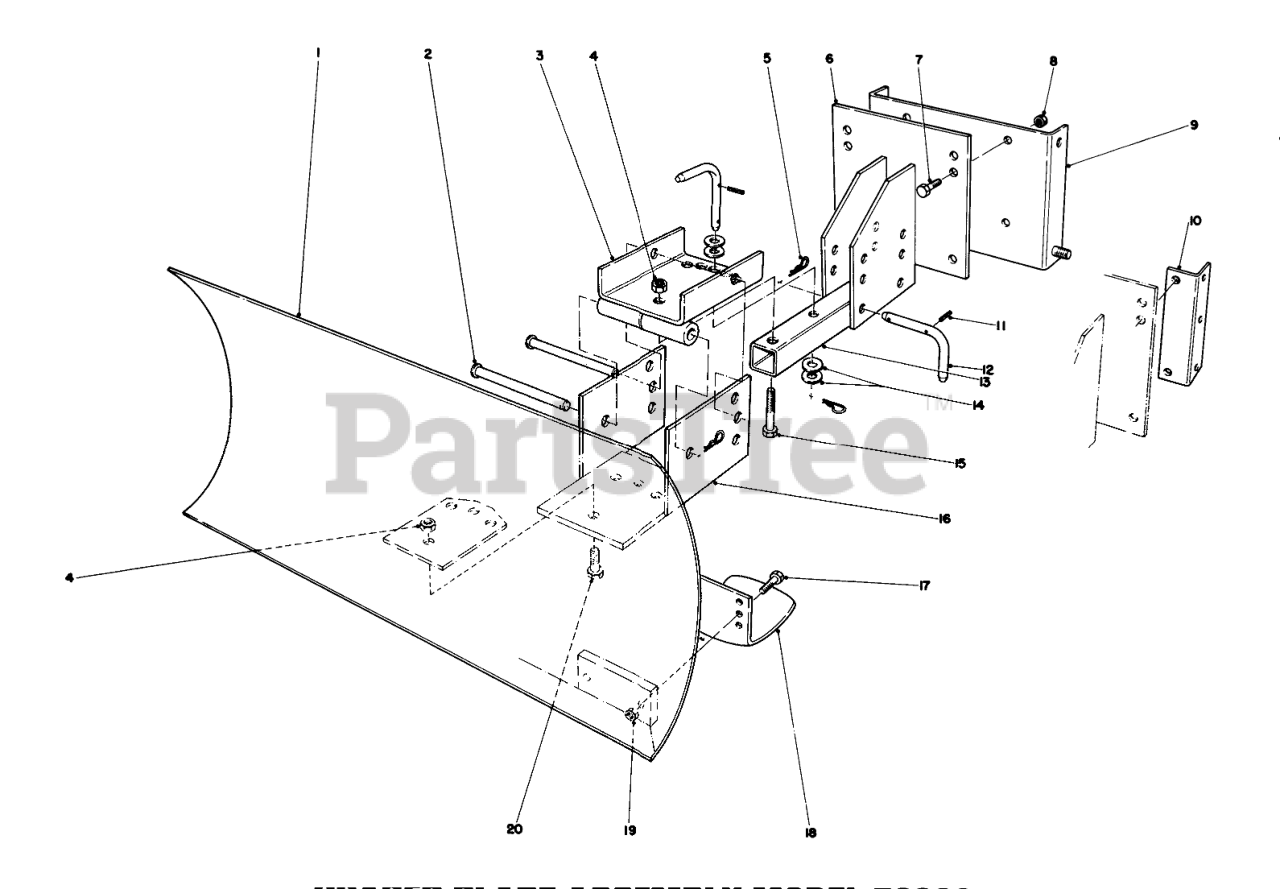

GRADER BLADE ASSEMBLY MODEL 59099 Parts Diagram

  • Title

1

Toro 7-4374

Blade

$

$

Not available

2

Toro 283-38

PIN-CLEVIS

$25.99

$

Usually ships in 3-6 days

0

3

Toro 20-5090

Swivel Bracket

$

$

Not available

4

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

5

Toro 3290-322

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

6

Toro 20-5170

Mounting Plate

$

$

Not available

7

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

9

Toro 22-4920

Mounting Plate (Used with 826 & 1132 Units only)

$

$

Not available

10

Toro 39-7850

Mounting Rail (used with 421 units only)

$

$

Not available

11

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

12

Toro 20-5210

Pivot Pin (Incl. Ref. #11)

$

$

Not available

13

Toro 20-5140

Blade Tongue

$

$

Not available

14

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 5

0

15

Toro 325-11

SCREW-HH

$2.99

$

In Stock, Qty 12

0

16

Toro 20-5130

Blade Adjustment

$

$

Not available

17

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

18

Toro 7-1023

Skid

$

$

Not available

19

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

20

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

Air Cleaner Kit (Tecumseh)

Note: Not illustrated

$

$

Not available

Tecumseh 650152

Screw

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0

Tecumseh 650152

Screw

Note: Obtain from your local Tecumseh dealer

$2.49

$

In Stock, only 3 left!

0

Tecumseh 31752

Decal

Note: Obtain from your local Tecumseh dealer

$

$

Not available

Tecumseh 31752

Decal

Note: Not illustrated

$

$

Not available

Tecumseh 31692

Body
(Superseded to 31715)

Note: Not illustrated

$21.99

$

In Stock, Qty 8

0

Tecumseh 31692

Body
(Superseded to 31715)

Note: Obtain from your local Tecumseh dealer

$21.99

$

In Stock, Qty 8

0

Tecumseh 30727

Element

Note: Obtain from your local Tecumseh dealer

$7.49

$

In Stock, Qty 20+

0

Tecumseh 30727

Element

Note: Not illustrated

$7.49

$

In Stock, Qty 20+

0

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

Note: Not illustrated

$4.49

$

In Stock, Qty 8

0

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

Note: Obtain from your local Tecumseh dealer

$4.49

$

In Stock, Qty 8

0

Tecumseh 31691

Bracket

Note: Not illustrated

$22.99

$

In Stock, only 3 left!

0

Tecumseh 31691

Bracket

Note: Obtain from your local Tecumseh dealer

$22.99

$

In Stock, only 3 left!

0

Tecumseh 27277

Gasket

Note: Not illustrated

$

$

Currently unavailable

Tecumseh 27277

Gasket

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable
