38080 (824) - Toro 24" Snow Thrower (SN: 009000001 - 009999999) (1979) Engine Tecumseh Model No. Hm 80-155169e Parts Diagram

24" Snow Thrower

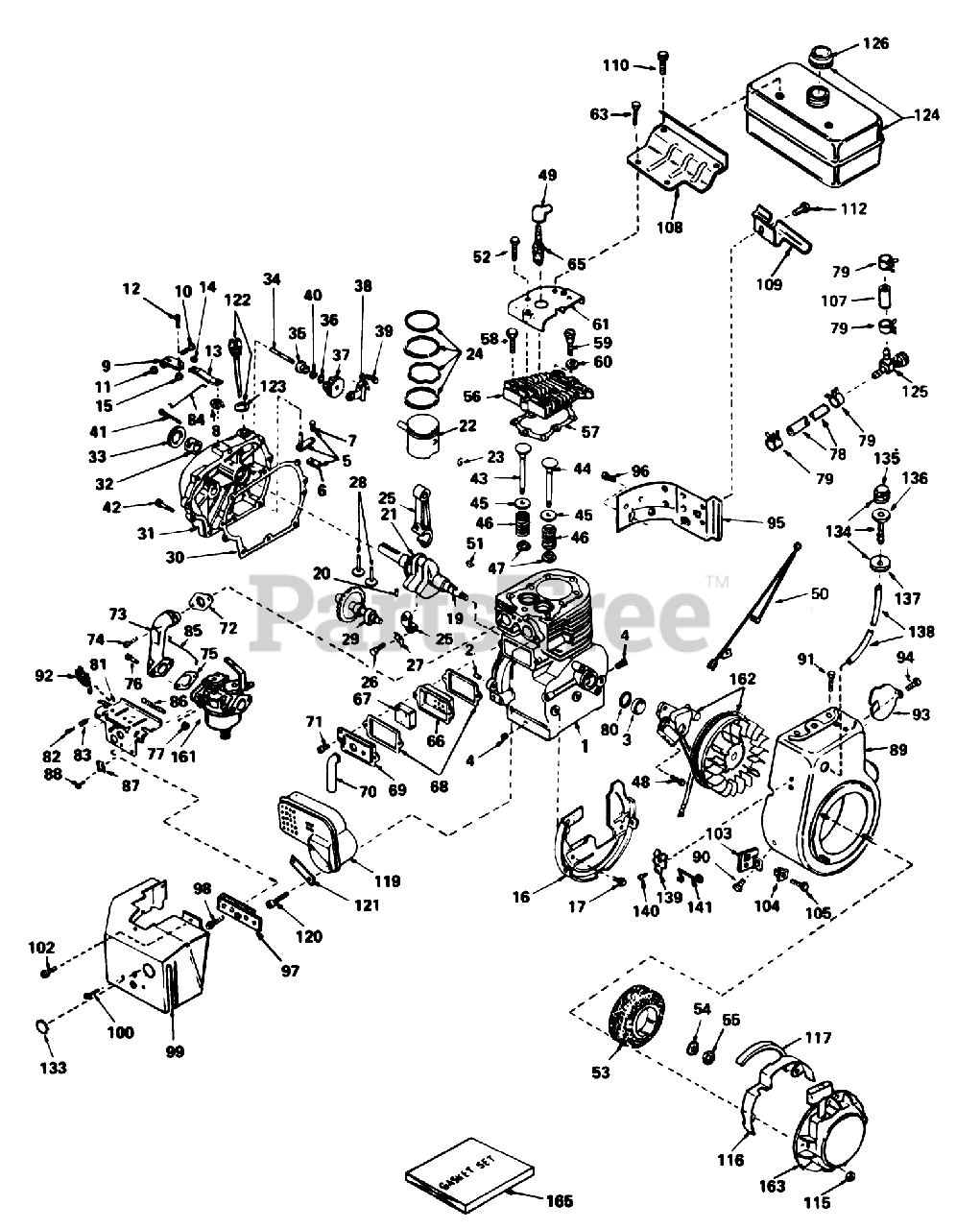

Engine Tecumseh Model No. Hm 80-155169e Parts Diagram

  • Title

1

Toro 34348

Cylinder Assembly (Incl. Ref. #2, 3 4)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

3

Toro 32630

Oil Seal

$

$

Currently unavailable

4

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

5

Toro 30699C

Rod, Governor (Incl. Nos.62 63)

$

$

Currently unavailable

6

Toro 30700

Yoke-Governor

$

$

Currently unavailable

7

Toro 650494

Screw (6-40x5/16)

$

$

Currently unavailable

8

Toro 29642

Ring-Retaining

$

$

Currently unavailable

9

Toro 29916

Clamp-Lever, Governor

$

$

Currently unavailable

10

Toro 29826

Screw

$

$

Currently unavailable

11

Toro 29216

Nut-Lock

$

$

Currently unavailable

12

Toro 650548

Screw

$

$

Currently unavailable

13

Toro 33454

Lever-Governor

$

$

Currently unavailable

14

Toro 29918

Washer-Lock

$

$

Currently unavailable

15

Toro 30322

Nut-Lock

$

$

Currently unavailable

16

Toro 29536

Baffle Blower Housing

$

$

Currently unavailable

17

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

19

Toro 33365B

Crankshaft Assy. (Incl. Nos. 20 21)

$

$

Currently unavailable

20

Toro 29783

Pin, Groove

$

$

Currently unavailable

21

Toro 33245

Gear, Crankshaft

$

$

Currently unavailable

22

Toro 34329

Piston, Pin Ring Assy. (Std.) (Incl. Nos. 15 16)

$

$

Currently unavailable

22

Toro 34330

Piston, Pin Ring. Assy. (.010 oversize) (Incl. Nos. 15 16)

$

$

Currently unavailable

22

Toro 34331

Piston, Pin Ring Assy. (.020 oversize) (Incl. Nos. 15 16)

$

$

Currently unavailable

23

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

24

Toro 34332

Ring Set (Std.)

$

$

Currently unavailable

24

Toro 34333

Ring Set (.010" OS)

$

$

Currently unavailable

24

Toro 34334

Ring Set (.020" OS)

$

$

Currently unavailable

25

Toro 32591C

Rod Assy., Connecting (Incl. Nos. 10 18)

$

$

Currently unavailable

26

Toro 650662A

Bolt, Connecting Rod

$

$

Currently unavailable

27

Toro 34242

Dipper-Oil

$

$

Currently unavailable

28

Toro 34034

Lifter-Valve

$

$

Currently unavailable

29

Toro 34143

Camshaft (Mech. Comp. Release)

$

$

Currently unavailable

30

Toro 33253

Gasket, Cylinder Cover
(Superseded to 742674)

Note: Indicates items included in gasket set part no. 33279C.

$

$

Not available

31

Toro 33367A

Cover, Cylinder (Incl. Ref. #32, 33 34)

$

$

Currently unavailable

32

Toro 33368

Bushing, Crankshaft

$

$

Currently unavailable

33

Toro 31950

Seal, Oil

$

$

Currently unavailable

34

Toro 31845

Shaft-Governor
(Superseded to 704636)

$

$

Not available

35

Toro 30588A

Spool-Governor

$

$

Currently unavailable

36

Toro 29193

Ring-Retaining

$

$

Currently unavailable

37

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

38

Toro 33369

Bracket-Gear, Governor

$

$

Currently unavailable

39

Toro 28763

Screw (10-32 x 35/64)

$

$

Currently unavailable

40

Toro 30590A

Washer-Flat

$

$

Currently unavailable

41

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

42

Toro 650493

Screw

$

$

Currently unavailable

43

Toro 34035

Valve, Intake (Std.) (Incl. Ref. #58)

$

$

Currently unavailable

43

Toro 34036

Valve, Intake (1/32" oversize) (Incl. Ref. #58)

$

$

Currently unavailable

44

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

$

$

Currently unavailable

44

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

45

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

46

Toro 27881

Spring-Valve

$

$

Currently unavailable

47

Toro 32581

Keeper-Spring, Valve

$

$

Currently unavailable

48

Toro 650489

Screw

$

$

Currently unavailable

49

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

50

Toro 34240

Wire, Ground

$

$

Currently unavailable

51

Toro 32589

Key-Flywheel

$

$

Currently unavailable

52

Toro 650737

Screw (1/4-20 x 1/2)

$

$

Currently unavailable

53

Toro 33662

Hub Screen Assy., Starter

$

$

Currently unavailable

54

Toro 650490

Washer

$

$

Currently unavailable

55

Toro 8116

DISCONTINUED

$

$

Not available

56

Toro 34030

Head Cylinder

$

$

Currently unavailable

57

Toro 34041

Gasket-Cylinder Head

Note: Indicates items included in gasket set part no. 33279C.

$

$

Currently unavailable

58

Toro 6021A

Screw (5/16-18x1-1/2)

$

$

Currently unavailable

59

Toro 650727

Screw (5/16-18x1-25/32)

$

$

Currently unavailable

60

Toro 650691

Washer-Flat

$

$

Currently unavailable

61

Toro 33272

Cover, Cylinder Head

$

$

Not available

63

Toro 650713

Screw

$

$

Currently unavailable

65

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

65

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

66

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

67

Toro 28424

Element-Breather

$

$

Currently unavailable

68

Toro 27896

Gasket-Breather

Note: Indicates items included in gasket set part no. 33279C.

$

$

Currently unavailable

69

Toro 28425

Cover-Valve

$

$

Currently unavailable

70

Toro 27627

Tube-Breather

$

$

Currently unavailable

71

Toro 650128

Screw

$

$

Currently unavailable

72

Toro 27915

Gasket-Intake

Note: Indicates items included in gasket set part no. 33279C.

$

$

Currently unavailable

73

Toro 33877

Pipe-Intake

$

$

Currently unavailable

74

Toro 650378

Screw (T-30, 5/16-18x1-3/32)

$

$

Currently unavailable

75

Toro 33861

Gasket, Carburetor

Note: Indicates items included in gasket set part no. 33279C.

$

$

Currently unavailable

76

Toro 30088A

Screw (1/4-28x1)

$

$

Currently unavailable

77

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

78

Toro 30705

Line-Fuel

$

$

Currently unavailable

79

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

80

Toro 33876

Gasket Stator

$

$

Currently unavailable

81

Toro 33461A

Control Assy., Speed (Incl. Ref. #82, 83, 86 92)

$

$

Currently unavailable

82

Toro 650549

Screw

$

$

Currently unavailable

83

Toro 31342

Spring-Compression

$

$

Currently unavailable

84

Toro 33371

Link, Governor

$

$

Currently unavailable

85

Toro 33878

Link-Throttle

$

$

Currently unavailable

86

Toro 33374

Spring, Extension

$

$

Currently unavailable

87

Toro 27793

Conduit

$

$

Currently unavailable

88

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

89

Toro 34145

Housing, Blower

$

$

Currently unavailable

90

Toro 29747A

Screw, Hex Hd.

$

$

Currently unavailable

91

Toro 650788

Screw (5/16-18x3/4)

$

$

Currently unavailable

92

Toro 610973

Terminal

$

$

Currently unavailable

93

Toro 33013

Screw

$

$

Currently unavailable

94

Toro 650760

Screw (8-32 x 3/8)

$

$

Currently unavailable

95

Toro 33273

Extension, Blower Housing

$

$

Currently unavailable

96

Toro 650128

Screw

$

$

Currently unavailable

97

Toro 33377

Bracket-Carburetor

$

$

Currently unavailable

98

Toro 650767

Screw (8-32x27/64)

$

$

Currently unavailable

99

Toro 34140

Cover, Carburetor

$

$

Currently unavailable

100

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

102

Toro 650765

Screw (10-32x1/2)

$

$

Currently unavailable

103

Toro 34126

Bracket

$

$

Currently unavailable

104

Toro 28545

Grommet

$

$

Currently unavailable

105

Toro 650643

Screw

$

$

Currently unavailable

107

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

108

Toro 34154

Bracket-Tank, Fuel (Black)

$

$

Currently unavailable

109

Toro 34155

Bracket-Tank, Fuel

$

$

Currently unavailable

110

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

112

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

115

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

116

Toro 34141

Guard, Starter

$

$

Currently unavailable

117

Toro 32576

Seal, Snowguard

$

$

Currently unavailable

119

Toro 34185

Muffler

$

$

Currently unavailable

120

Toro 650729

Screw, Hex Hd.

$

$

Currently unavailable

121

Toro 31588

62513 SNWTHWR W/284

$3.23

$

Usually ships in 3-6 days

0

122

Toro 31297

Dipstick, Oil (Incl. No. 30)

$

$

Not available

123

Toro 29673

Gasket

Note: Indicates items included in gasket set part no. 33279C.

$

$

Currently unavailable

124

Toro 34156

Tank Assy., Fuel (Incl. No. 115)

$

$

Currently unavailable

125

Toro 32961

Valve-Shut Off

$

$

Currently unavailable

126

Toro 30998B

Cap, Fuel

$

$

Currently unavailable

133

Toro 31291

Plug

$

$

Currently unavailable

134

Toro 32182

Primer Assy. (Incl. Nos. 89, 90 91)

$

$

Currently unavailable

135

Toro 32183

Bulb, Primer

$3.23

$

Usually ships in 3-6 days

0

136

Toro 32184

Body, Primer

$

$

Currently unavailable

137

Toro 32312

Retainer, Primer Bulb

$

$

Currently unavailable

138

Toro 32180B

Line, Primer

$

$

Currently unavailable

139

Toro 34138

Bracket, Choke Wire

$

$

Currently unavailable

140

Toro 650257

Screw (8-32 X 5/16)

$

$

Currently unavailable

141

Toro 34139

Wire, Choke

$

$

Currently unavailable

161

Toro 632037

Carburetor (Incl. No. 75)

$

$

Currently unavailable

162

Toro 610848

Magneto (The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.)

$

$

Currently unavailable

163

Toro 590479

Starter, Rewind

$

$

Currently unavailable

165

Toro 33279C

Gasket Set

$

$

Currently unavailable
