38080 (824) - Toro 24" Snow Thrower (SN: 009000001 - 009999999) (1979) Starter Motor Kit No. 37-4810 Parts Diagram

24" Snow Thrower

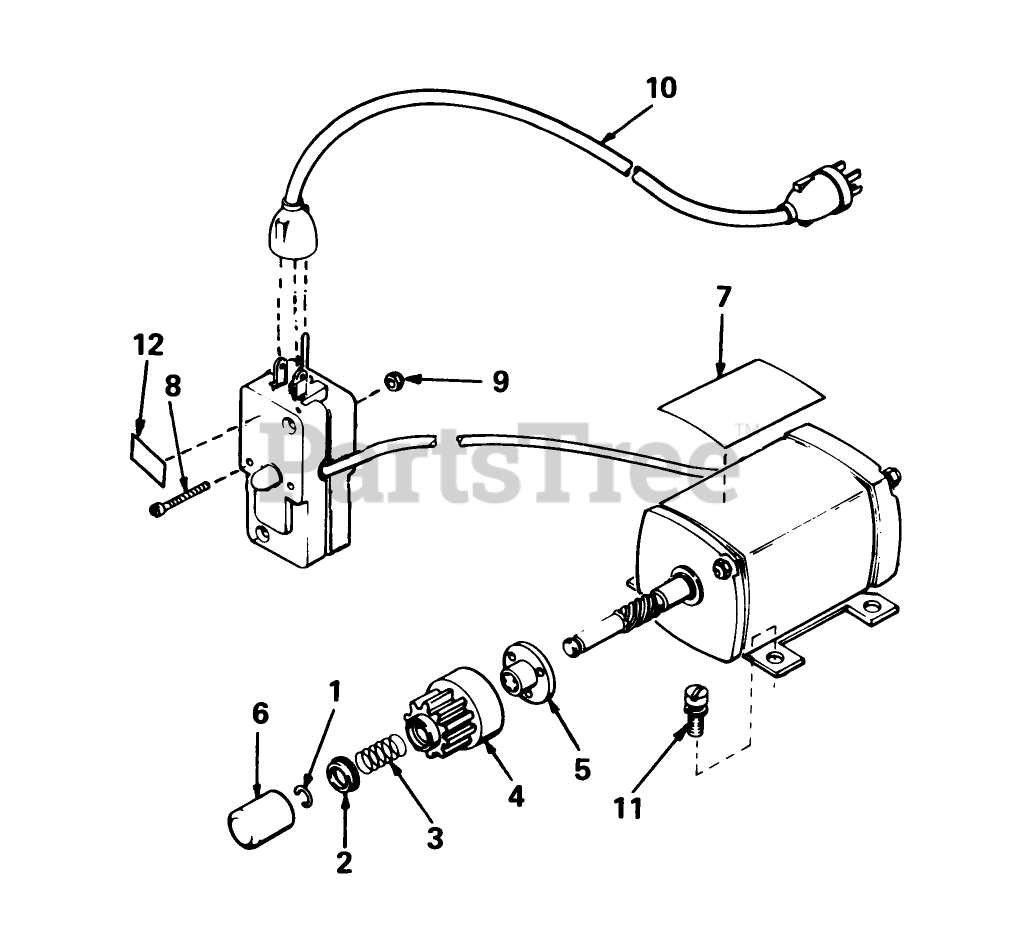

Starter Motor Kit No. 37-4810 Parts Diagram

  • Title

1

Toro 33842

Ring-Retainer

$

$

Currently unavailable

2

Toro 33430

Retainer-Spring

$

$

Currently unavailable

3

Toro 33431

Spring-Anti Drift

$

$

Not available

4

Toro 33432

Gear
(Superseded to 704720)

$

$

Not available

5

Toro 33433

Nut-Engaging

$

$

Currently unavailable

6

Toro 33451

Cover-Dust

$

$

Currently unavailable

7

Toro 34180

39003A 5HP TILLER O

$3.23

$

Usually ships in 3-6 days

0

8

Toro 650741

Screw, Pan Hd.

$

$

Currently unavailable

9

Toro 650742

Nut Lockwasher

$

$

Currently unavailable

10

Toro 32450A

Cord-Extension

$

$

Currently unavailable

11

Toro 30063

Screw

$

$

Currently unavailable

12

Toro 34161

Decal

$

$

Currently unavailable
