38080 (824) - Toro 24" Snow Thrower (SN: 039000001 - 039999999) (1993) Carburetor No. 632334a Parts Diagram

24" Snow Thrower

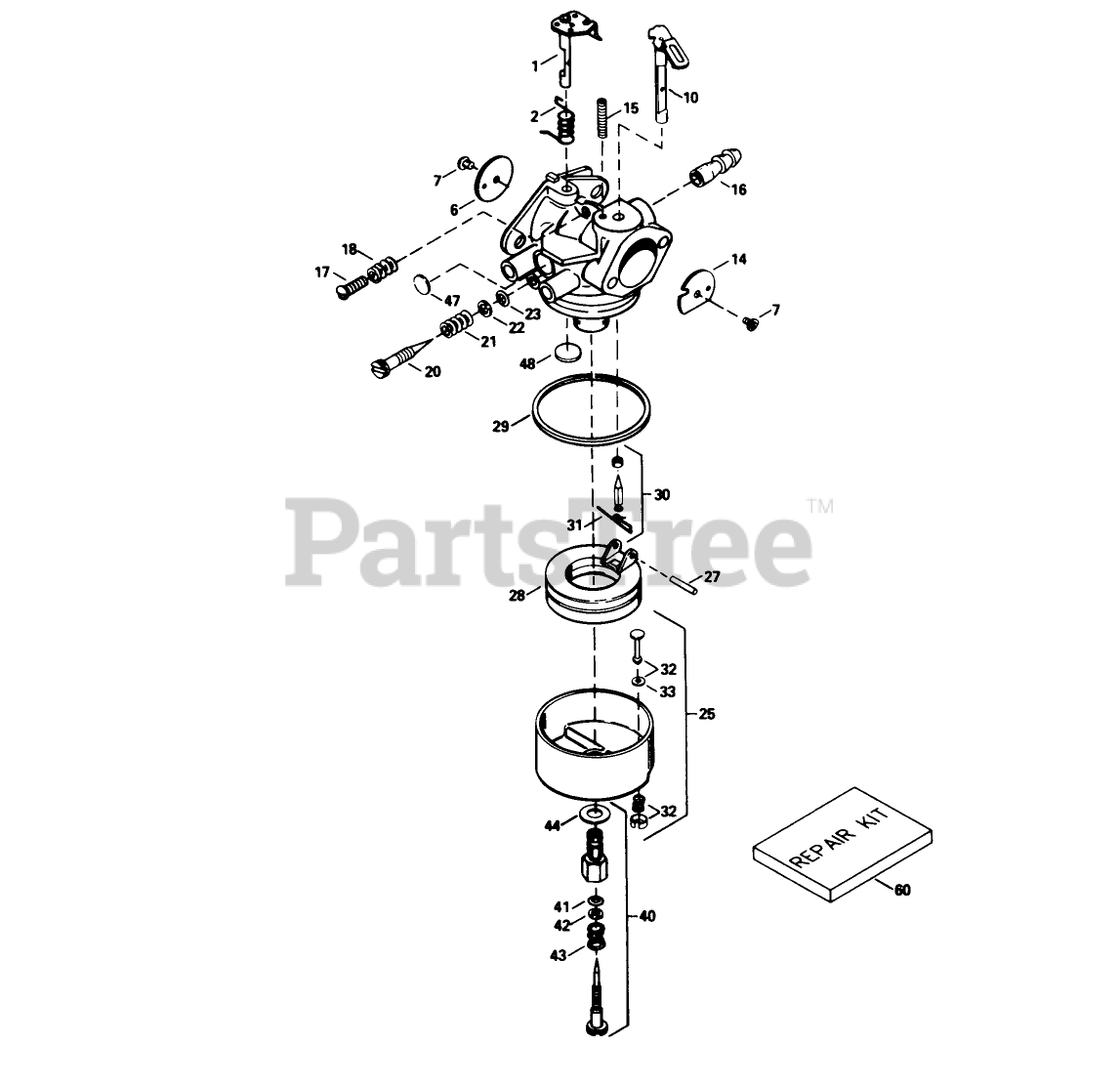

Carburetor No. 632334a Parts Diagram

  • Title

1

Toro 631776A

Throttle Shaft and Lever ASM

$

$

Currently unavailable

2

Toro 631970

Spring-Return, Throttle

$

$

Currently unavailable

6

Toro 631778

Shutter-Throttle

$

$

Currently unavailable

7

Toro 650506

Screw-Shutter

$

$

Currently unavailable

10

Toro 632112

Choke Shaft and Lever ASM

$

$

Currently unavailable

14

Toro 632174

Shutter-Choke

$

$

Currently unavailable

15

Toro 630735

Spring-Positioning, Choke

$

$

Currently unavailable

16

Toro 632164

Fitting-Fuel

$

$

Currently unavailable

17

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

18

Toro 630766

Spring-Tension

$

$

Currently unavailable

20

Toro 632281

Screw-Idle Mix

$

$

Currently unavailable

21

Toro 630766

Spring-Tension

$

$

Currently unavailable

22

Toro 630739

Washer

$

$

Currently unavailable

23

Toro 630740

ORing

Note: Included in Carburetor Repair Kit Ref. Num 60

$

$

Currently unavailable

25

Toro 631951

Float Bowl Asm. (Incl. Ref. # 32, 33)

$

$

Currently unavailable

27

Toro 631024

Shaft-Float

Note: Included in Carburetor Repair Kit Ref. Num 60

$

$

Currently unavailable

28

Toro 632019

Float

$

$

Currently unavailable

29

Toro 631028

O Ring-Bowl, Float

Note: Included in Carburetor Repair Kit Ref. Num 60

$

$

Currently unavailable

30

Toro 631021

Inlet Needle, Seat Clip Assy. (Incl. No. 13)

Note: Included in Carburetor Repair Kit Ref. Num 60

$

$

Currently unavailable

31

Toro 631022

Clip-Spring

$

$

Currently unavailable

32

Toro 27136A

Bowl Drain ASM

$

$

Currently unavailable

33

Toro 27554

Gasket-Plunger, Drain

$

$

Currently unavailable

40

Toro 632239

Adjustment Screw Assy.,Main (Incl. Ref. #5A,21,23 30)

$

$

Currently unavailable

41

Toro 630740

ORing

Note: Included in Carburetor Repair Kit Ref. Num 60

$

$

Currently unavailable

42

Toro 630739

Washer

$

$

Currently unavailable

43

Toro 630738

Spring

$

$

Currently unavailable

44

Toro 27110

Washer-Bowl Nut

Note: Included in Carburetor Repair Kit Ref. Num 60

$

$

Currently unavailable

47

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Included in Carburetor Repair Kit Ref. Num 60

$

$

Currently unavailable

48

Toro 631027

Plug-Welch, Atmospheric Vent

Note: Included in Carburetor Repair Kit Ref. Num 60

$

$

Currently unavailable

60

Toro 632347

Kit-Repair

$

$

Currently unavailable
