38083 (824 XL) - Toro 24" Power Throw Snow Thrower (SN: 079000001 - 079999999) (1997) ENGINE AND FRAME ASSEMBLY Parts Diagram

24" Power Throw Snow Thrower

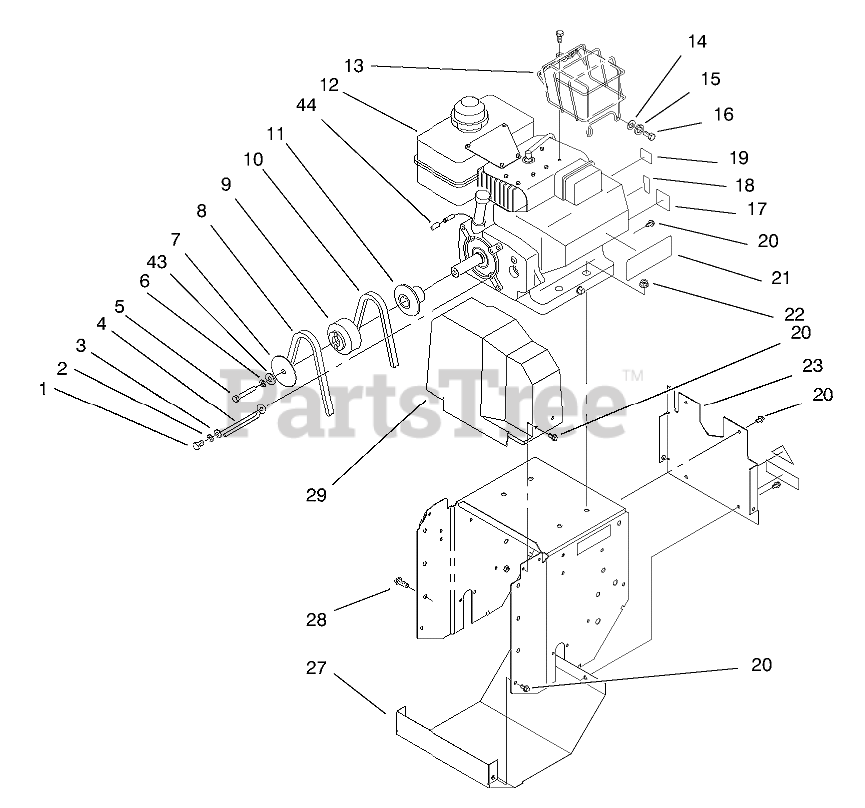

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 94-8869

Guide-Belt
(Superseded to 95-7917)

$19.99

$

Usually ships in 3-6 days

0

5

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, Qty 5

0

6

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 62-0940

SHEAVE-HALF, IMPELLER

$18.99

$

In Stock, only 1 left!

0

8

Toro 94-8803

V-BELT, IMPELLER

$23.99

$

In Stock, only 1 left!

0

9

Toro 94-8849

PULLEY-ENGINE CENTER

$77.99

$

Usually ships in 3-6 days

0

10

Toro 94-8812

V BELT-TRACTION
(Superseded to 94-8812-SL)

$33.99

$

Usually ships in 3-6 days

0

11

Toro 62-0920

SHEAVE-HALF, TRACTION

$

$

Not available

12

Engine-Tecumseh, HMSK-80 155723

$

$

Not available

13

Toro 94-2763

Guard-Muffler (Only On: 38084)

$

$

Not available

14

Toro 93-8038

Washer-Flat (Only On: 38084)

$

$

Not available

15

Toro 93-8039

Washer-Lock (Only On: 38084)

$

$

Not available

16

Toro 93-8048

Screw-Self Drilling (Only On: 38084)

$

$

Not available

17

Toro 94-2572

DECAL - PRIMER

$

$

Not available

18

Toro 63-2450

THROTTLE DECAL, INT'L

$4.99

$

Usually ships in 3-6 days

0

19

Toro 63-2400

Decal-Choke (Only On: 38083)

$4.99

$

Usually ships in 3-6 days

0

19

Toro 63-2410

Decal-Choke (Only On: 38084)

$6.49

$

Usually ships in 3-6 days

0

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 66-6840

Decal-Hot Surface (Only On: 38083)

$80.99

$

Usually ships in 3-6 days

0

21

Toro 93-1265

Decal-Hot Surface (Only On: 38084)

$6.49

$

Usually ships in 3-6 days

0

22

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Toro 94-8842

Plate-Back
(Superseded to 94-8842-01)

$

$

Not available

27

Toro 94-8844

Cover-Lower Traction
(Superseded to 94-8844-01)

$

$

Not available

28

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

29

Toro 94-8802

COVER-UPPER BELT

$54.99

$

Usually ships in 3-6 days

0

43

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

44

Toro 94-2782

CAP-WIRE, LITE

$3.49

$

Usually ships in 3-6 days

0
