38085 C (824) - Toro 24" Snow Thrower (SN: 007000001 - 007999999) (1987) AUGER ASSEMBLY Parts Diagram

24" Snow Thrower

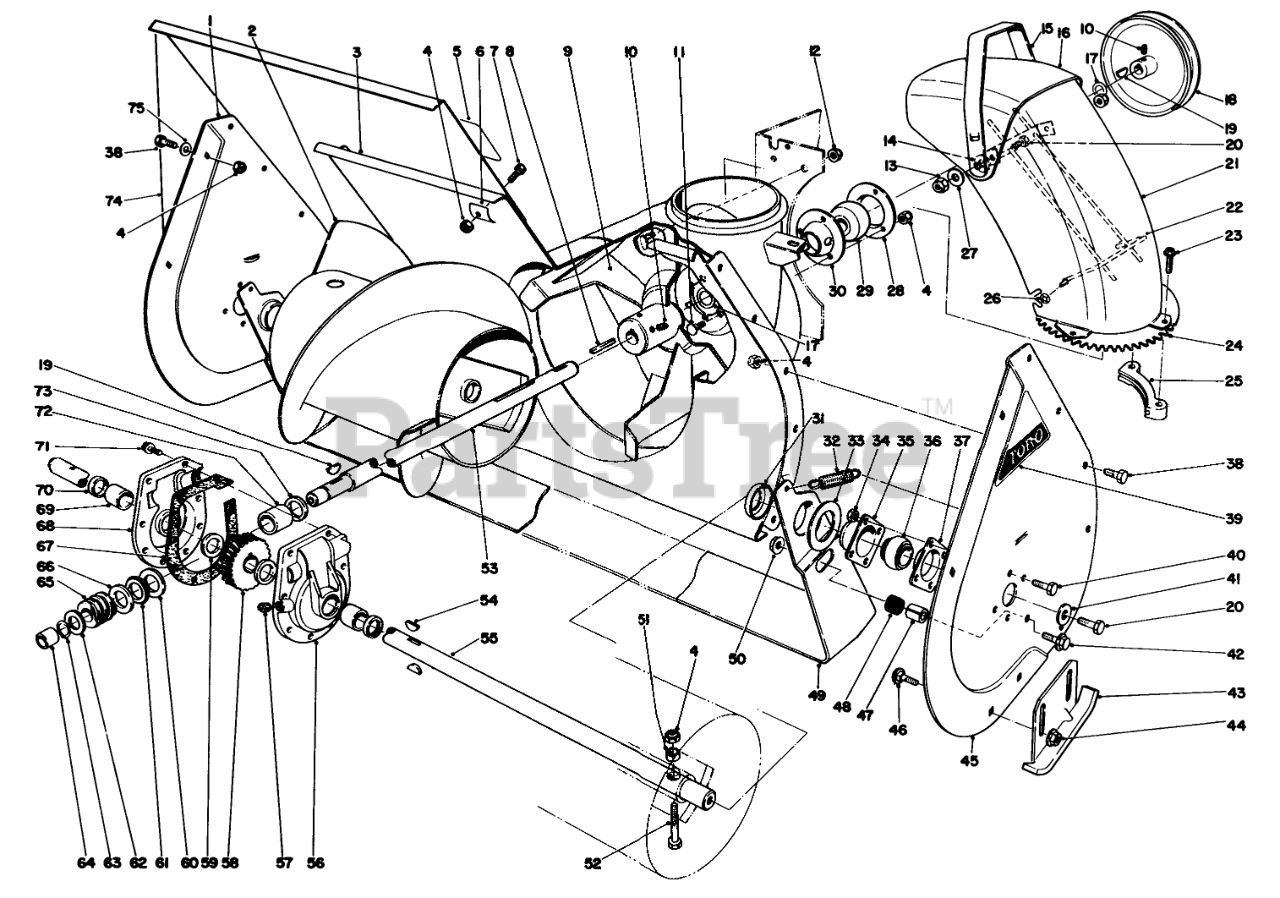

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 43-7440

RH AUGER SIDE PLT R

$

$

Not available

2

Toro 26-6140

Auger Right
(Superseded to 26-6140-03)

$

$

Not available

Toro 26-6150

Auger Left
(Superseded to 26-6150-03)

Note: Not illustrated

$

$

Not available

3

Toro 40-8120

AUGER HSG WA RO

$1456.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 53-7670

DECAL-WARNING, AUGER
(Superseded to 94-2568)

$8.49

$

In Stock, only 3 left!

0

6

Toro 43-7480

SHIELD CLAMP R

$

$

Not available

7

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 6-8590

KEY

$12.99

$

Usually ships in 3-6 days

0

9

Toro 20-1260

IMPELLER WA RO

$679.99

$

Usually ships in 3-6 days

0

10

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

11

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

14

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 10

0

15

Toro 20-1410

DEFLECTOR HANDLE B

$74.99

$

In Stock, only 1 left!

0

16

Toro 11-9379

DEFLECTOR/DECAL

$

$

Not available

17

Toro 3-0737

WASHER

$8.49

$

In Stock, only 3 left!

0

18

Toro 20-1310

IMPELLER PULLEY

$248.99

$

Usually ships in 3-6 days

0

19

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, only 2 left!

0

20

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 56-2450

CHUTE B

$

$

Not available

22

Toro 42-1800

CHUTE GUARD WA 24

$

$

Not available

23

Toro 27-0210

SPECIAL SCREW

$8.99

$

Usually ships in 3-6 days

0

24

Toro 43-7470

Gear-Chute Swivel
(Superseded to 43-7470-03)

$

$

Not available

25

Toro 40-8150

CHUTE RETAINER

$

$

Not available

26

Toro 3290-326

NUT-PUSH

$4.99

$

Usually ships in 3-6 days

0

27

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

28

Toro 26-6120

FLANGE-CUP, BEARING

$4.49

$

In Stock, only 1 left!

0

29

Toro 26-6100

Ball Bearing
(Superseded to 12-8789)

$29.99

$

In Stock, only 1 left!

0

30

Toro 26-6110

FLANGE-CUP, BEARING

$6.49

$

In Stock, only 1 left!

0

31

Toro 26-6400

Positioner-Scraper

$

$

Not available

32

Toro 5-7290

SPRING-TENSION

$26.99

$

In Stock, only 2 left!

0

33

Toro 20-0300

SCRAPER BLADE SPACER

$8.99

$

Usually ships in 3-6 days

0

34

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

35

Toro 20-0990

BEARING-FLANGE, FRONT

$11.99

$

In Stock, only 4 left!

0

36

Toro 20-0980

BEARING

$22.99

$

In Stock, Qty 11

0

37

Toro 20-1000

BEARING-FLANGE, REAR

$11.99

$

In Stock, only 3 left!

0

38

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

39

Toro 17-6500

AUGER SIDE PLT DECAL

$

$

Not available

40

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 13

0

41

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

42

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 18

0

43

Toro 20-2840

AUGER SKID WA R
(Superseded to 20-2840-01)

$41.99

$

In Stock, Qty 15

0

44

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

45

Toro 43-7430

LH AUGER SIDE PLT R

$257.99

$

Usually ships in 3-6 days

0

46

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

47

Toro 25-5140

SCRAPER STOP SPACER

$

$

Not available

48

Toro 25-5150

SCRAPER STOP CUSHION

$7.99

$

Usually ships in 3-6 days

0

49

Toro 20-1320

24 SCRAPER BLD
(Superseded to 20-1320-01)

$

$

Not available

50

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

51

Toro 25-5090

SPACER-HUB, AUGER

$10.99

$

In Stock, Qty 8

0

52

Toro 17-7030

Auger Bolt
(Superseded to 322-12)

$1.99

$

In Stock, Qty 14

0

53

Toro 36-2580

Shaft Impeller
(Superseded to 66-6941)

$

$

Not available

54

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 3 left!

0

55

Toro 20-1170

24 AUGER SHAFT

$

$

Not available

56

Toro 37-8860

Gear Case (Incl. Ref. #69 & 70)
(Superseded to 14-2459)

$151.99

$

Usually ships in 3-6 days

0

57

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

In Stock, only 1 left!

0

58

Toro 5-7180

GEAR-WORM, 27T

$158.99

$

In Stock, only 2 left!

0

59

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

60

Toro 252-78

WASHER-THRUST

$26.99

$

In Stock, only 2 left!

0

61

Toro 252-76

BEARING-THRUST

$21.99

$

In Stock, only 1 left!

0

62

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 2 left!

0

63

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, Qty 20+

0

64

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

65

Toro 5-7170

GEAR

$113.99

$

In Stock, only 3 left!

0

66

Toro 252-77

THRUST-WASHER

$10.99

$

In Stock, only 2 left!

0

67

Toro 51-0460

GASKET-CASE, GEAR

$7.99

$

In Stock, Qty 9

0

68

Toro 37-8850

Gear Case (Incl. Ref. #69 & 70)
(Superseded to 14-2449)

$151.99

$

Usually ships in 3-6 days

0

69

Toro 256-237

BUSHING

$15.99

$

In Stock, only 2 left!

0

70

Toro 7-0045

SEAL-OIL

$15.99

$

In Stock, Qty 20+

0

71

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

72

Toro 20-3210

BUSHING-SPECIAL

$12.99

$

In Stock, only 1 left!

0

73

Toro 237-87

RING-QUAD

$6.99

$

In Stock, only 2 left!

0

74

Toro 39-6210

AUGER EXT 24 SCND R

$

$

Not available

75

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

Toro 19-7000

Gear Case Complete
(Superseded to 19-7002)

Note: Not illustrated

$

$

Not available

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days
