38095 (1132) - Toro 32" Snow Thrower (SN: 007000001 - 007999999) (1987) ENGINE BRIGGS & STRATTON MODEL NO. 252416-0735-01 Parts Diagram

32" Snow Thrower

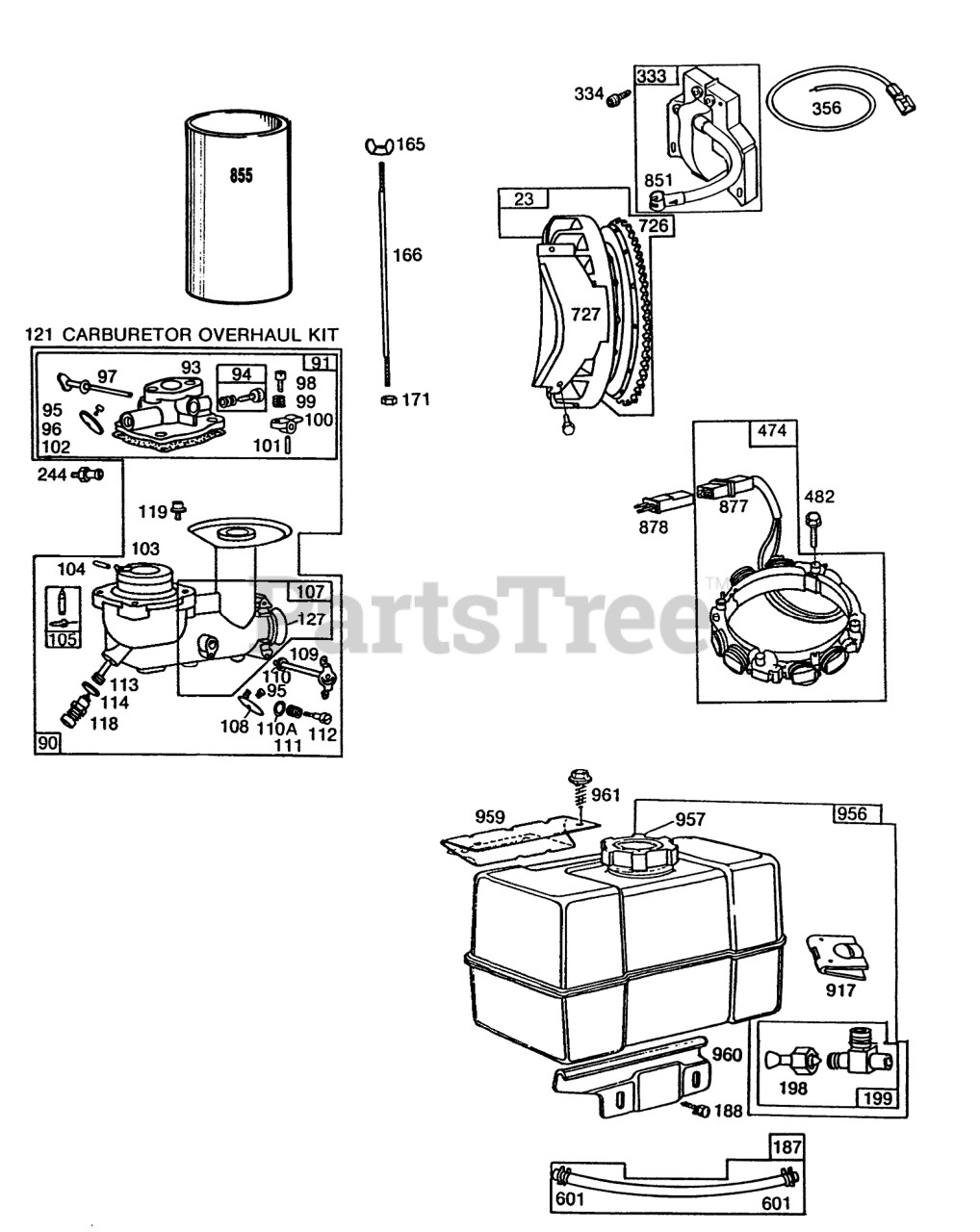

ENGINE BRIGGS & STRATTON MODEL NO. 252416-0735-01 Parts Diagram

  • Title

23

Briggs & Stratton 391988

Flywheel and Ring Gear
(Superseded to 692048)

Note: Included in Gasket Set-part No. 391834.

$193.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 399252

Carburetor Assembly

$

$

Not available

91

Briggs & Stratton 391833

Upper Carburetor Body

Note: Included in Gasket Set-part No. 391834.

$128.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

Note: Included in Gasket Set-part No. 391834.

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-See Ref. 121.

$11.99

$

In Stock, only 1 left!

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Gasket Set-part No. 391834.

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

Note: Included in Gasket Set-part No. 391834.

$3.99

$

In Stock, only 2 left!

0

96

Briggs & Stratton 221939

Valve-Throttle
(Superseded to 691727)

Note: Included in Gasket Set-part No. 391834.

$6.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 391596

Shaft/Lever-Throttle

Note: Included in Gasket Set-part No. 391834.

$41.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

Note: Included in Gasket Set-part No. 391834.

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

Note: Included in Gasket Set-part No. 391834.

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 212904

Stop-Throttle
(Superseded to 691708)

Note: Included in Gasket Set-part No. 391834.

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

Note: Included in Gasket Set-part No. 391834.

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 270268

Gasket-Carburetor Body
(Superseded to 692215)

Note: Included in Carburetor Overhaul Kit-See Ref. 121.

$5.49

$

In Stock, Qty 5

0

102

Briggs & Stratton 270268

Gasket-Carburetor Body
(Superseded to 692215)

Note: Included in Gasket Set-part No. 391834.

$5.49

$

In Stock, Qty 5

0

103

Briggs & Stratton 298514

Float-Carburetor
(Superseded to 692265)

Note: Included in Gasket Set-part No. 391834.

$11.99

$

In Stock, only 4 left!

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Gasket Set-part No. 391834.

$3.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-See Ref. 121.

$3.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 394681

Valve-Fuel Inlet

Note: Included in Gasket Set-part No. 391834.

$7.99

$

In Stock, Qty 16

0

107

Briggs & Stratton 391829

Body Assy-Lower Carb.

Note: Included in Gasket Set-part No. 391834.

$109.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 223781

Valve-Choke
(Superseded to 5022378X1)

Note: Included in Gasket Set-part No. 391834.

$25.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 391884

Shaft/Lever-Choke

$9.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 62899

Washer-Choke Lever
(Superseded to 691186)

$4.99

$

Usually ships in 2-12 days

0

110A

Briggs & Stratton 222712

Washer

$5.49

$

In Stock, only 2 left!

0

111

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

Note: Included in Gasket Set-part No. 391834.

$4.99

$

In Stock, Qty 8

0

112

Briggs & Stratton 23123

Screw-Choke Lever
(Superseded to 691587)

Note: Included in Gasket Set-part No. 391834.

$6.49

$

In Stock, only 4 left!

0

113

Briggs & Stratton 394730

Nozle-Carburetor
(Superseded to 691966)

Note: Included in Carburetor Overhaul Kit-See Ref. 121.

$21.99

$

In Stock, only 1 left!

0

113

Briggs & Stratton 394730

Nozle-Carburetor
(Superseded to 691966)

Note: Included in Gasket Set-part No. 391834.

$21.99

$

In Stock, only 1 left!

0

114

Briggs & Stratton 68667

Gasket-Nozzle
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-See Ref. 121.

$6.49

$

In Stock, Qty 11

0

114

Briggs & Stratton 68667

Gasket-Nozzle
(Superseded to 691610)

Note: Included in Gasket Set-part No. 391834.

$6.49

$

In Stock, Qty 11

0

118

Briggs & Stratton 99525

Value-Needle
(Superseded to 99525S)

Note: Included in Gasket Set-part No. 391834.

$12.99

$

In Stock, only 3 left!

0

118

Briggs & Stratton 99525

Value-Needle
(Superseded to 99525S)

Note: Included in Carburetor Overhaul Kit-See Ref. 121.

$12.99

$

In Stock, only 3 left!

0

119

Briggs & Stratton 93496

Screw
(Superseded to 690804)

Note: Included in Gasket Set-part No. 391834.

$

$

Not available

121

Briggs & Stratton 394989

Carburetor Overhaul Kit

Note: Included in Gasket Set-part No. 391834.

$39.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 221747

Plug-Welch
(Superseded to 690627)

Note: Included in Gasket Set-part No. 391834.

$5.49

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 221747

Plug-Welch
(Superseded to 690627)

Note: Included in Carburetor Overhaul Kit-See Ref. 121.

$5.49

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 93453

Nut-Wing
(Superseded to 691331)

Note: Included in Gasket Set-part No. 391834.

$5.99

$

In Stock, Qty 6

0

166

Briggs & Stratton 231007

Stud Air Cleaner
(Superseded to 691241)

Note: Included in Gasket Set-part No. 391834.

$

$

Not available

171

Briggs & Stratton 92129

Nut
(Superseded to 690284)

Note: Included in Gasket Set-part No. 391834.

$2.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 296004

Fuel-Hose
(Superseded to 791745)

$10.99

$

In Stock, Qty 7

0

188

Briggs & Stratton 93535

Crew
(Superseded to 691058)

Note: Included in Gasket Set-part No. 391834.

$5.99

$

In Stock, Qty 12

0

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

Note: Included in Gasket Set-part No. 391834.

$43.99

$

In Stock, only 4 left!

0

199

Briggs & Stratton 390303

Outlet-Fuel Tank
(Superseded to 492649)

Note: Included in Gasket Set-part No. 391834.

$28.99

$

Usually ships in 2-12 days

0

244

Briggs & Stratton 230318

Connector-Fuel
(Superseded to 691764)

Note: Included in Gasket Set-part No. 391834.

$14.99

$

In Stock, Qty 5

0

333

Briggs & Stratton 398265

Armature Group
(Superseded to 398811)

Note: Included in Gasket Set-part No. 391834.

$63.99

$

In Stock, Qty 9

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

Note: Included in Gasket Set-part No. 391834.

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398838

Wire-Ground

$7.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 393474

Alternator
(Superseded to 592831)

$101.99

$

In Stock, only 1 left!

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

Note: Included in Gasket Set-part No. 391834.

$3.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93807

Clamp-Hose
(Superseded to 691038)

Note: Included in Gasket Set-part No. 391834.

$3.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 392134

Gear-Flywheel Ring (Includes Mounting Parts)
(Superseded to 696537)

Note: Included in Gasket Set-part No. 391834.

$50.99

$

In Stock, only 1 left!

0

727

Briggs & Stratton 223597

Guard-Ring Gear
(Superseded to 690490)

Note: Included in Gasket Set-part No. 391834.

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 93712

Screw
(Superseded to 690364)

$3.99

$

In Stock, only 2 left!

0

Briggs & Stratton 93713

Lockwasher
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

855

Briggs & Stratton 231145

Stack-Carburetor

Note: Included in Gasket Set-part No. 391834.

$7.49

$

Usually ships in 2-12 days

0

877

Briggs & Stratton 393456

Wire/Connector-Alternator

$20.99

$

In Stock, only 1 left!

0

878

Briggs & Stratton 393362

Harness-Alternator
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

917

Briggs & Stratton 223271

Valve Handle
(Superseded to 691737)

$7.49

$

In Stock, only 1 left!

0

956

Briggs & Stratton 397928

Screw
(Superseded to 691993)

$166.99

$

In Stock, Qty 13

0

957

Briggs & Stratton 397975

Cap-Fuel Tank
(Superseded to 799719)

$40.99

$

In Stock, only 1 left!

0

959

Briggs & Stratton 223754

Bracket-Fuel Tank (Top)
(Superseded to 224888)

$9.99

$

Usually ships in 2-12 days

0

960

Toro 223755

Bracket-Fuel Tank (Btm.)

$

$

Currently unavailable

961

Briggs & Stratton 94095

Screw-Hex.
(Superseded to 690708)

Note: Included in Gasket Set-part No. 391834.

$2.99

$

Usually ships in 2-12 days
