38095 (1132) - Toro 32" Snow Thrower (SN: 007000001 - 007999999) (1987) Engine Briggs Stratton Model No. 252416-0735-01 (continued) Parts Diagram

32" Snow Thrower

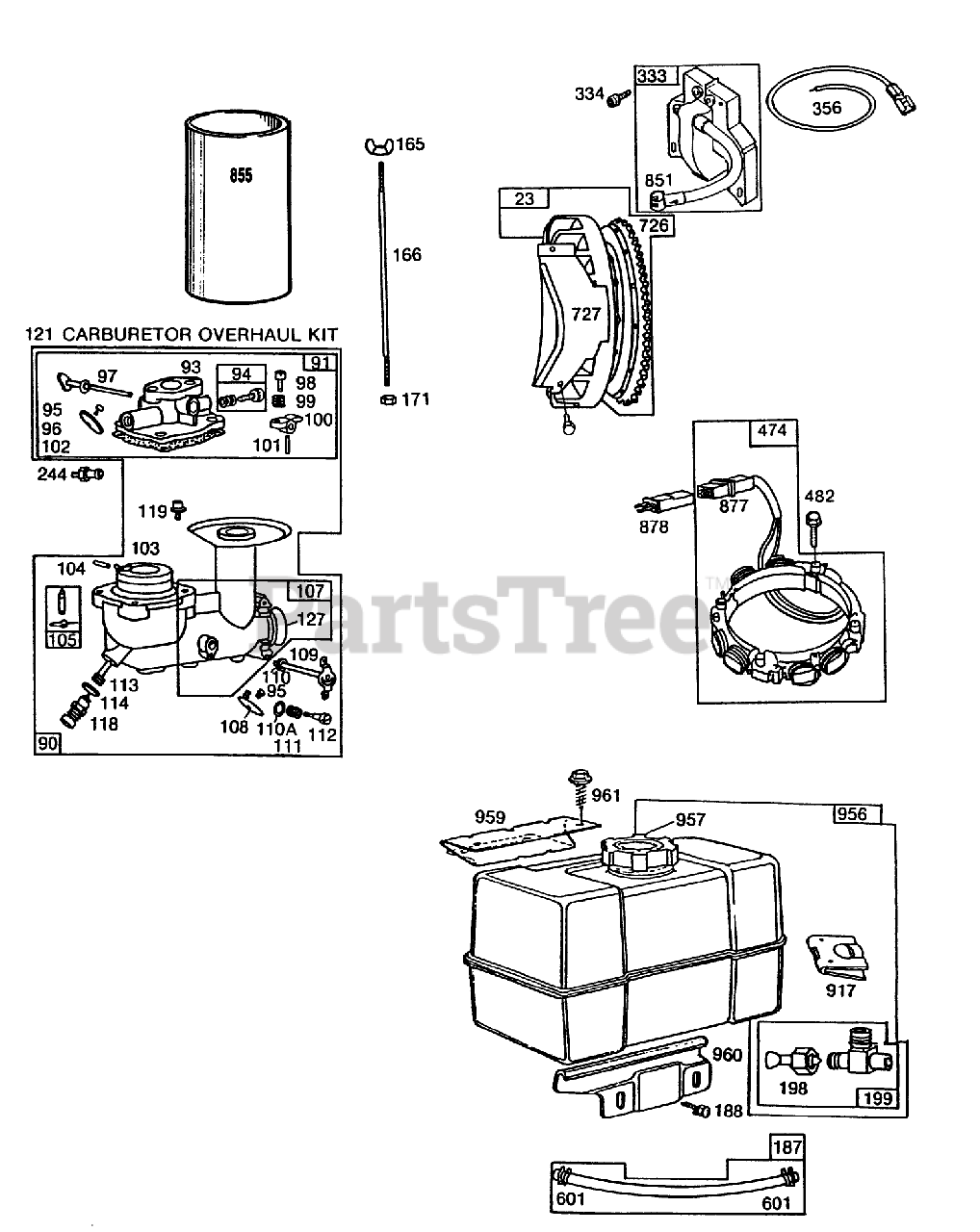

Engine Briggs Stratton Model No. 252416-0735-01 (continued) Parts Diagram

  • Title

23

Toro 391988

Flywheel and Ring Gear

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

90

Toro 399252

Carburetor Assembly

$

$

Currently unavailable

91

Toro 391833

Upper Carburetor Body

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

93

Toro 23108

Bushing-Throttle Shaft

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

94

Toro 292681

Valve Assembly

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

94

Toro 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-See Ref. 121.

$

$

Currently unavailable

95

Toro 93499

Screw

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

96

Toro 221939

Valve-Throttle

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

97

Toro 391596

Shaft/Lever-Throttle

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

98

Toro 91920

Screw

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

99

Toro 26157

Spring

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

100

Toro 212904

Stop-Throttle

Note: Included in Gasket Set-part No. 391834.

$

$

Not available

101

Toro 93043

Pin

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

102

Toro 270268

Gasket-Carburetor Body

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

102

Toro 270268

Gasket-Carburetor Body

Note: Included in Carburetor Overhaul Kit-See Ref. 121.

$

$

Currently unavailable

103

Toro 298514

Float-Carburetor

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

104

Toro 230896

Pin-Float

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

104

Toro 230896

Pin-Float

Note: Included in Carburetor Overhaul Kit-See Ref. 121.

$

$

Currently unavailable

105

Toro 394681

Valve-Fuel Inlet

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

107

Toro 391829

Body Assy-Lower Carb.

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

108

Toro 223781

Valve-Choke

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

109

Toro 391884

Shaft/Lever-Choke

$

$

Currently unavailable

110

Toro 62899

Washer-Choke Lever

$

$

Currently unavailable

110A

Toro 222712

Washer

$

$

Currently unavailable

111

Toro 26155

Spring-Lever

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

112

Toro 23123

Screw-Choke Lever

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

113

Toro 394730

Nozle-Carburetor

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

113

Toro 394730

Nozle-Carburetor

Note: Included in Carburetor Overhaul Kit-See Ref. 121.

$

$

Currently unavailable

114

Toro 68667

Gasket-Nozzle

Note: Included in Carburetor Overhaul Kit-See Ref. 121.

$

$

Currently unavailable

114

Toro 68667

Gasket-Nozzle

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

118

Toro 99525

Value-Needle

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

118

Toro 99525

Value-Needle

Note: Included in Carburetor Overhaul Kit-See Ref. 121.

$

$

Currently unavailable

119

Toro 93496

Screw

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

121

Toro 394989

Carburetor Overhaul Kit

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

127

Toro 221747

Plug-Welch

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

127

Toro 221747

Plug-Welch

Note: Included in Carburetor Overhaul Kit-See Ref. 121.

$

$

Currently unavailable

165

Toro 93453

Nut-Wing

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

166

Toro 231007

Stud Air Cleaner

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

171

Toro 92129

Nut

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

187

Toro 296004

Fuel-Hose

$

$

Currently unavailable

188

Toro 93535

Crew

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

198

Toro 293934

Valve-Shut Off

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

199

Toro 390303

Outlet-Fuel Tank

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

244

Toro 230318

Connector-Fuel

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

333

Toro 398265

Armature Group

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

334

Toro 93381

Screw

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

356

Toro 398838

Wire-Ground

$

$

Currently unavailable

474

Toro 393474

Alternator

$

$

Currently unavailable

482

Toro 93621

Screw

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

601

Toro 93807

Clamp-Hose

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

726

Toro 392134

Gear-Ring (Includes Mounting Parts)

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

727

Toro 223597

Guard-Ring Gear

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

Toro 93712

Screw

$

$

Currently unavailable

Toro 93713

Lockwasher

$

$

Currently unavailable

851

Toro 221798

Terminal-Cable

$

$

Currently unavailable

855

Toro 231145

Stack-Carburetor

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

855

Toro 231145

Stack-Carburetor

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

877

Toro 393456

Wire/Connector-Alternator

$

$

Currently unavailable

878

Toro 393362

Harness-Alternator

$

$

Currently unavailable

917

Toro 223271

Valve Handle

$

$

Currently unavailable

956

Toro 397928

Screw

$

$

Currently unavailable

957

Toro 397975

Cap-Fuel Tank

$

$

Currently unavailable

959

Toro 223754

Bracket-Fuel Tank (Top)

$

$

Currently unavailable

960

Toro 223755

Bracket-Fuel Tank (Btm.)

$

$

Currently unavailable

961

Toro 94095

Screw-Hex.

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable
