38120 (S-200) - Toro Snow Thrower (SN: 000100000 - 000499999) (1980) Engine Assembly Engine Tecumseh Model No. Ah520 Type 1585b Unit Model 38120 (used On Units With Serial No. 0300000 Parts Diagram

Snow Thrower

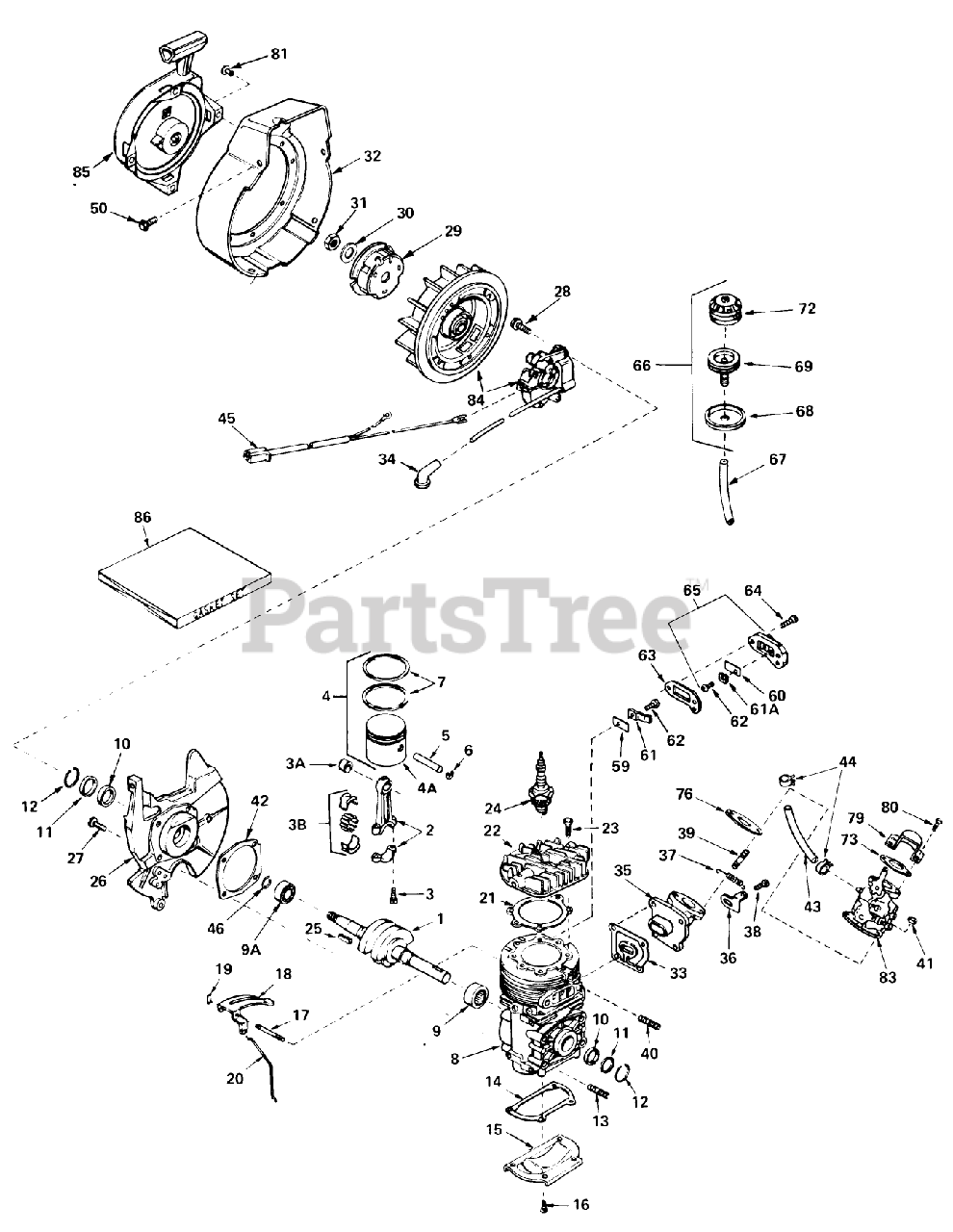

Engine Assembly Engine Tecumseh Model No. Ah520 Type 1585b Unit Model 38120 (used On Units With Serial No. 0300000 Parts Diagram

  • Title

1

Toro 290489

Crankshaft

$

$

Currently unavailable

2

Toro 310244

Rod Assembly, Connecting (Incl. #3, 3A 3B)

$

$

Currently unavailable

3

Toro 650633

Bolt-Rod, Connecting

$

$

Currently unavailable

3A

Toro 530104A

Bearing-Cartridge

$

$

Currently unavailable

3B

Toro 530149

Bearing Liner Set Needle

$

$

Currently unavailable

4

Toro 310259

Piston, Pin Ring Assy. (Incl. Ref. #6 thru 9)

$

$

Currently unavailable

4A

Toro 310230B

Piston

$

$

Currently unavailable

5

Toro 310178

Pin, Piston

$

$

Currently unavailable

6

Toro 310167

Ring-Retaning

$

$

Currently unavailable

7

Toro 310190

Ring Set

$

$

Currently unavailable

8

Toro 250271B

Block Assy., Cylinder (Incl. Ref. #9, 10 thru 13, 17 40)

$

$

Currently unavailable

9

Toro 530105

Bearing-Cartridge

$

$

Currently unavailable

9A

Toro 530110

Bearing-Ball

$

$

Currently unavailable

10

Toro 510105

Seal, Crankshaft
(Superseded to 510195)

$

$

Not available

11

Toro 510106A

Retainer, Crankshaft Seal

$

$

Currently unavailable

12

Toro 510109A

Spring, Crankshaft Seal Retainer

$

$

Currently unavailable

13

Toro 650796

Stud

$

$

Currently unavailable

14

Toro 510270

Gasket, Cover

Note: Items included in Gasket Set Ref. Num 86

$

$

Currently unavailable

15

Toro 570370A

Plate, Cover

$

$

Currently unavailable

16

Toro 650579

Screw (T-25, 10-24 x 1/2)

$

$

Currently unavailable

17

Toro 490276

Shaft, Air Vane

$

$

Currently unavailable

18

Toro 490287

Vane Assy., Air

$

$

Currently unavailable

19

Toro 490278

Clip,Air Vane

$

$

Currently unavailable

20

Toro 490288

Link, Governor

$

$

Currently unavailable

21

Toro 510274

Gasket, Head

Note: Items included in Gasket Set Ref. Num 86

$

$

Currently unavailable

22

Toro 250240A

Head-Cylinder

$

$

Currently unavailable

23

Toro 650477

Screw (T-30, 1/4-20 x 3/4)

$

$

Currently unavailable

24

Toro 611005

Head Adjustment Knob

$

$

Not available

25

Toro 610961

Key-Flywheel

$

$

Currently unavailable

26

Toro 350390

Base Assembly, Shroud (Incl. Nos. 10, 11 12)(Type 1583)

$

$

Currently unavailable

26

Toro 350388

Base Assy., Housing (Incl. Nos. 29, 30 31)

$

$

Currently unavailable

27

Toro 650497

Screw

$

$

Currently unavailable

28

Toro 650747

Screw, Hex Washer Hd.

$

$

Currently unavailable

29

Toro 590416

Starter Cup

$

$

Currently unavailable

30

Toro 650763

Washer-Spring

$

$

Currently unavailable

31

Toro 650390

Nut-Flywheel

$

$

Currently unavailable

32

Toro 350392

Housing, Blower (Type 1583)

$

$

Currently unavailable

32

Toro 350391

Housing, Blower

$

$

Currently unavailable

33

Toro 510312

Gasket, Port

Note: Items included in Gasket Set Ref. Num 86

$

$

Currently unavailable

34

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

35

Toro 570627

Elbow Assy., Adapter

$

$

Currently unavailable

36

Toro 570626

Lever, Adjusting

$

$

Currently unavailable

37

Toro 490286

Spring, Adjusting Lever

$

$

Currently unavailable

38

Toro 650576

Screw

$

$

Currently unavailable

39

Toro 650700

Stud Carburetor

$

$

Currently unavailable

40

Toro 650801

Stud

$

$

Currently unavailable

41

Toro 650457

Locknut

$

$

Currently unavailable

42

Toro 510292

Gasket, Shroud Base

Note: Items included in Gasket Set Ref. Num 86

$

$

Currently unavailable

43

Toro 30705

Line-Fuel

$

$

Currently unavailable

44

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

45

Toro 610999

Harness, Wire

$

$

Not available

46

Toro 570630

Ring, Retaining

$

$

Currently unavailable

50

Toro 630356

Screw, Hex Washer Hd. Powerlok Thread

$

$

Currently unavailable

59

Toro 470136

Reed, Compression Release

$

$

Currently unavailable

60

Toro 470135

Reed, Compression Release

$

$

Currently unavailable

61

Toro 470151

Plate, Reed Hold Down

$

$

Currently unavailable

61A

Toro 470137

Plate, Reed Hold Down

$

$

Currently unavailable

62

Toro 650654

Screw

$

$

Currently unavailable

63

Toro 510263

Gasket, Compression Release

Note: Items included in Gasket Set Ref. Num 86

$

$

Currently unavailable

64

Toro 650576

Screw

$

$

Currently unavailable

65

Toro 570437A

Cover Assy., Compression release (Incl. Nos. 60, 61A 62)

$

$

Currently unavailable

66

Toro 570629A

Primer Assy.

$

$

Currently unavailable

67

Toro 32180B

Line, Primer

$

$

Currently unavailable

68

Toro 32312

Retainer, Primer Bulb

$

$

Currently unavailable

69

Toro 32184

Body, Primer

$

$

Currently unavailable

72

Toro 570442A

Bulb-Primer

$

$

Currently unavailable

73

Toro 510206

Gasket

$

$

Currently unavailable

76

Toro 510213

Gasket, Carburetor

Note: Items included in Gasket Set Ref. Num 86

$

$

Currently unavailable

79

Toro 570434

Baffle-Carburetor

$

$

Currently unavailable

80

Toro 650229

Screw

$

$

Currently unavailable

81

Rivet, Pop (3/16" dia.)(Can be purchased locally)

$

$

Not available

83

Toro 631887

Carburetor (Incl. #76)

$

$

Currently unavailable

84

Toro 610772A

Magneto

Note: The complete magneto is not avaiable as an assembly. The magneto is shown for reference purposes only. Order component parts individually as shown in parts list. Type 1583-B.

$

$

Currently unavailable

84

Toro 610794A

Magneto

Note: The complete magneto is not avaiable as an assembly. The magneto is shown for reference purposes only. Order component parts individually as shown in parts list. Type 1585-B.

$

$

Currently unavailable

85

Toro 590537

Starter-Rewind

$

$

Currently unavailable

86

Toro 510264D

Gasket Set (Incl. items marked *)

$

$

Currently unavailable
