381451HBVE (84393) - Snapper 38" Rear-Engine Riding Mower, 14hp Steering Assembly Parts Diagram

38" Rear-Engine Riding Mower, 14hp

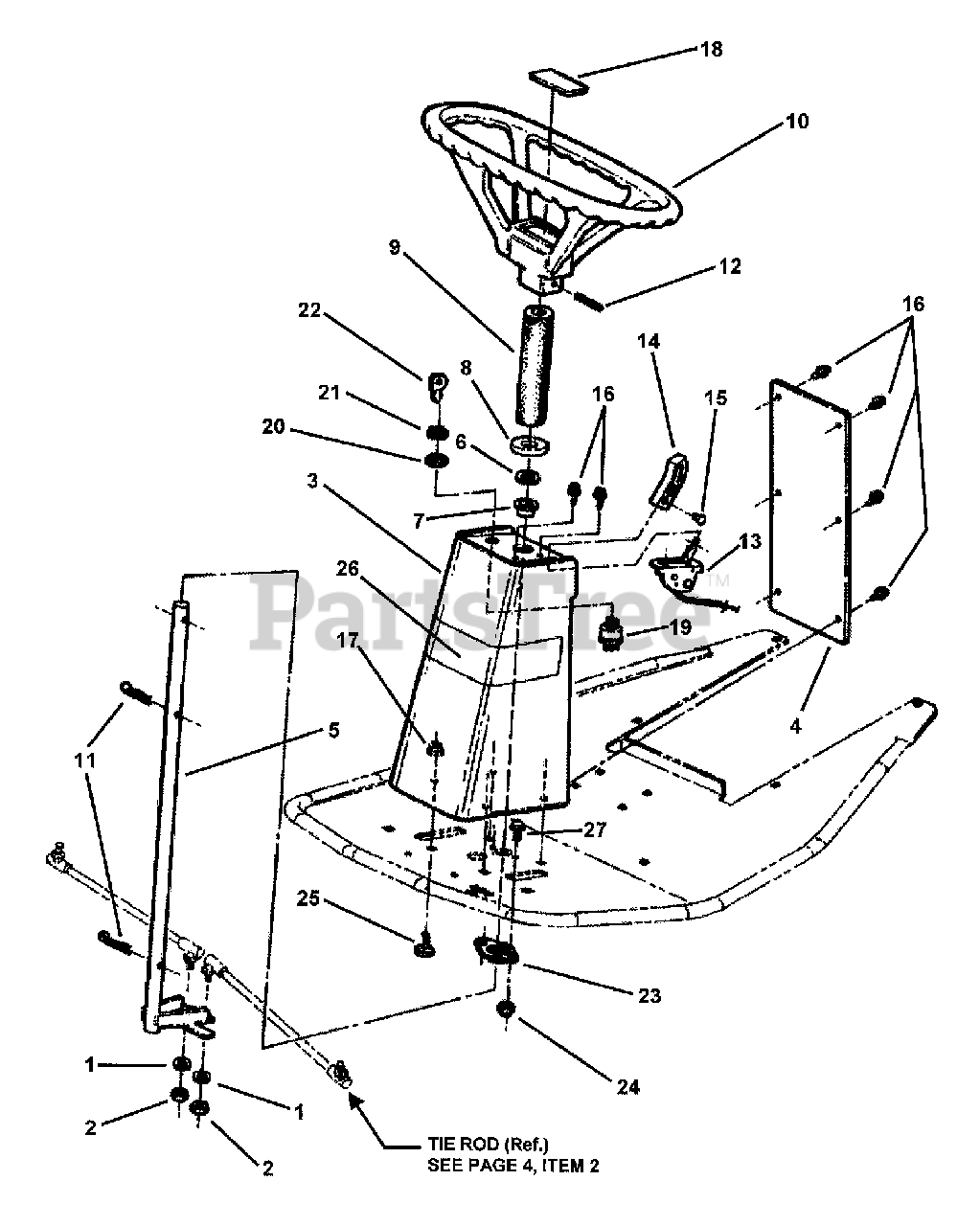

Steering Assembly Parts Diagram

  • Title

1

Snapper 7091315

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

2

Snapper 7091297

NUT, 5/16-24 Hex, Grade 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

3

Snapper 7058078

WELDMENT, Steering Column
(Superseded to 7058078YP)

$119.99

$

Usually ships in 2-12 days

0

4

Snapper 7047106

COVER PLATE, Steering Column

$

$

Not available

5

Snapper 7046726

WELDMENT, Steering Shaft

$

$

Currently unavailable

6

Snapper 7010935

WASHER, 3/4" I.D. x 1-1/8" O.D. x 1/16" Thick Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7010986

BEARING, Nylon
(Superseded to 7010986YP)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7023671

COVER, Steering Shaft
(Superseded to 7023671YP)

$4.49

$

In Stock, Qty 10

0

9

Snapper 7072594

FOAM COVER, Steering Shaft (6-1/8" Long)

$

$

Not available

9

Snapper 7023667

FOAM COVER, Steering Shaft (8-1/4" Long)
(Superseded to 7023667YP)

$8.49

$

In Stock, Qty 9

0

10

Snapper 7051941

ASSEMBLY, Steering Wheel
(Superseded to 7051941YP)

Note: (Includes Item 18)

$179.99

$

In Stock, only 1 left!

0

11

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

Note: (Was 90364)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7013862

PIN, 1/4 x 1-1/2" Roll
(Superseded to 7013862YP)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7046956

CABLE, Throttle
(Superseded to 7046956YP)

$25.99

$

Usually ships in 2-12 days

0

14

Snapper 7023655

KNOB, Throttle
(Superseded to 7023655YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7071921

RIVET, Plastic Snap
(Superseded to 7071921YP)

$3.49

$

In Stock, only 1 left!

0

16

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

17

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Snapper 7023781

DECAL, Snapper (Steering Wheel)
(Superseded to 7023781YP)

$15.99

$

In Stock, only 2 left!

0

19

Snapper 7026343

SWITCH, Ignition
(Superseded to 7026343SM)

$38.99

$

In Stock, Qty 5

0

20

Snapper 7091546

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

Note: (Was 90880)

$4.49

$

In Stock, Qty 6

0

21

Snapper 7012685

NUT, 5/8-32 Special Hex
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7011138

KEY (Pair)
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 9

0

23

Snapper 7026196

BEARING, .75 I.D. PM Flange
(Superseded to 7026196SM)

$7.49

$

In Stock, Qty 16

0

24

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7072137

DECAL, Steering Column

$

$

Not available

27

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0
