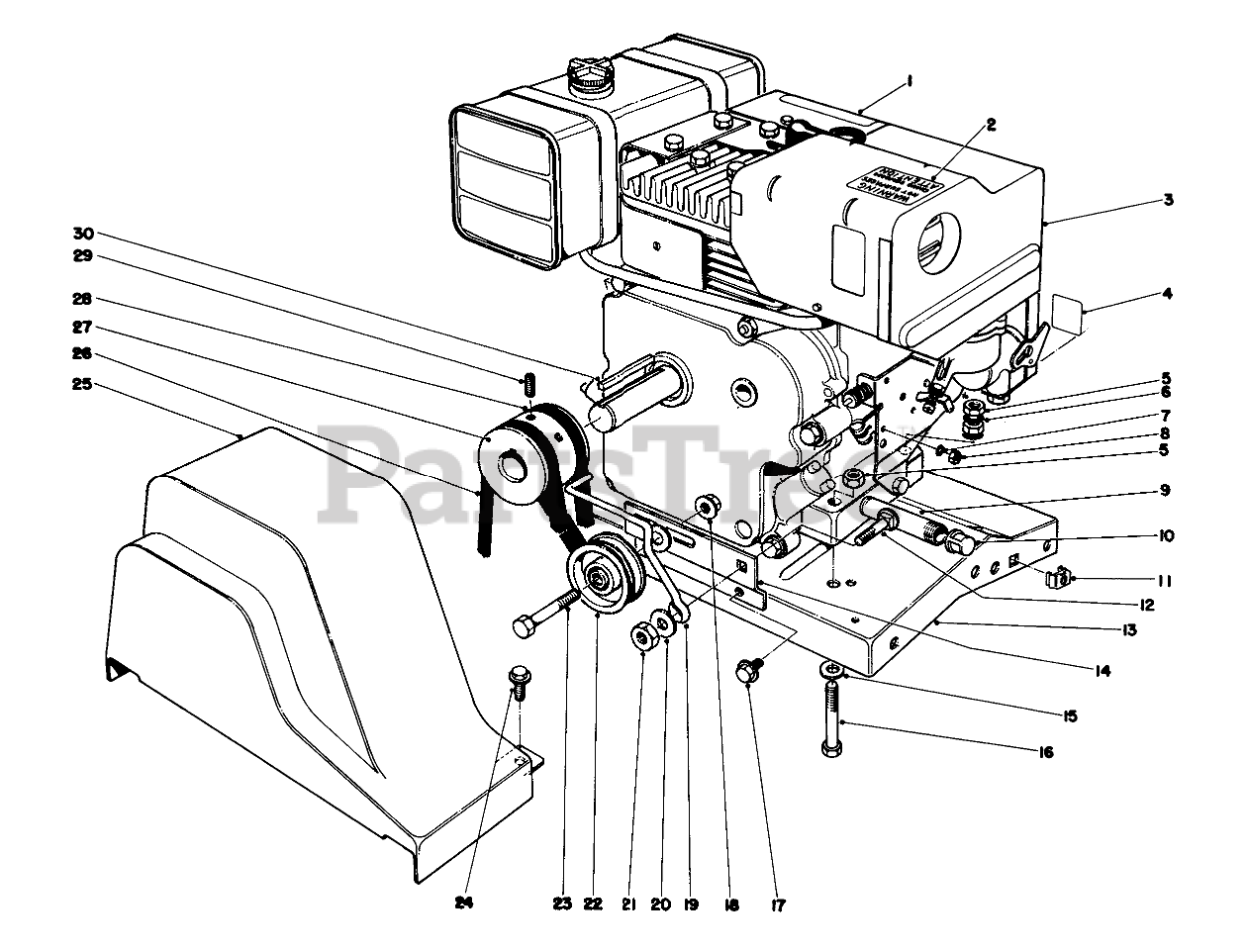

38155 (826) - Toro Snow Thrower (SN: 000000001 - 000999999) (1980) ENGINE ASSEMBLY Parts Diagram

Snow Thrower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 39-7200

HAZARDS CAUTION DECAL
(Superseded to 54-9750)

$

$

Not available

2

Toro 39-7100

Decal
(Superseded to 53-7680)

$

$

Not available

3

Toro 221-600

Engine

$

$

Currently unavailable

4

Toro 39-7070

Decal-Choke

$

$

Not available

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 32542

Lockwasher

$

$

Currently unavailable

7

Toro 3254-10

WASHER-LOCK/INT

$

$

Not available

8

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

9

Toro 289-20

NIPPLE-PIPE

$

$

Not available

10

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

11

Toro 3290-398

Retained Nut
(Superseded to 3290-433)

$

$

Not available

12

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

13

Toro 22-9030

Base-Engine

$

$

Not available

14

Toro 22-7960

Belt Idler Bracket
(Superseded to 41-8580)

$

$

Not available

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

17

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

18

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

19

Toro 8-8830

BELT GUIDE

$

$

Not available

20

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 6

0

21

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

22

Toro 244-63

PULLEY B

$

$

Not available

23

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

25

Toro 17-6550

BELT GUARD

$

$

Not available

26

Toro 26-9670

V-BELT

$25.99

$

In Stock, only 1 left!

0

27

Toro 21-4100

ENGINE PULLEY

$

$

Not available

28

Toro 17-6540

V-BELT

$30.99

$

In Stock, Qty 5

0

29

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$12.99

$

Usually ships in 3-6 days

0

30

Toro 5-0930

KEY

$14.99

$

Usually ships in 3-6 days

0

Toro 259150

Decal-Replacement Serial Plate

Note: Not illustrated

$

$

Currently unavailable
