38155 (826) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981) Engine Model No. 190402 Type 0989-01 (model 38155) Parts Diagram

Snow Thrower

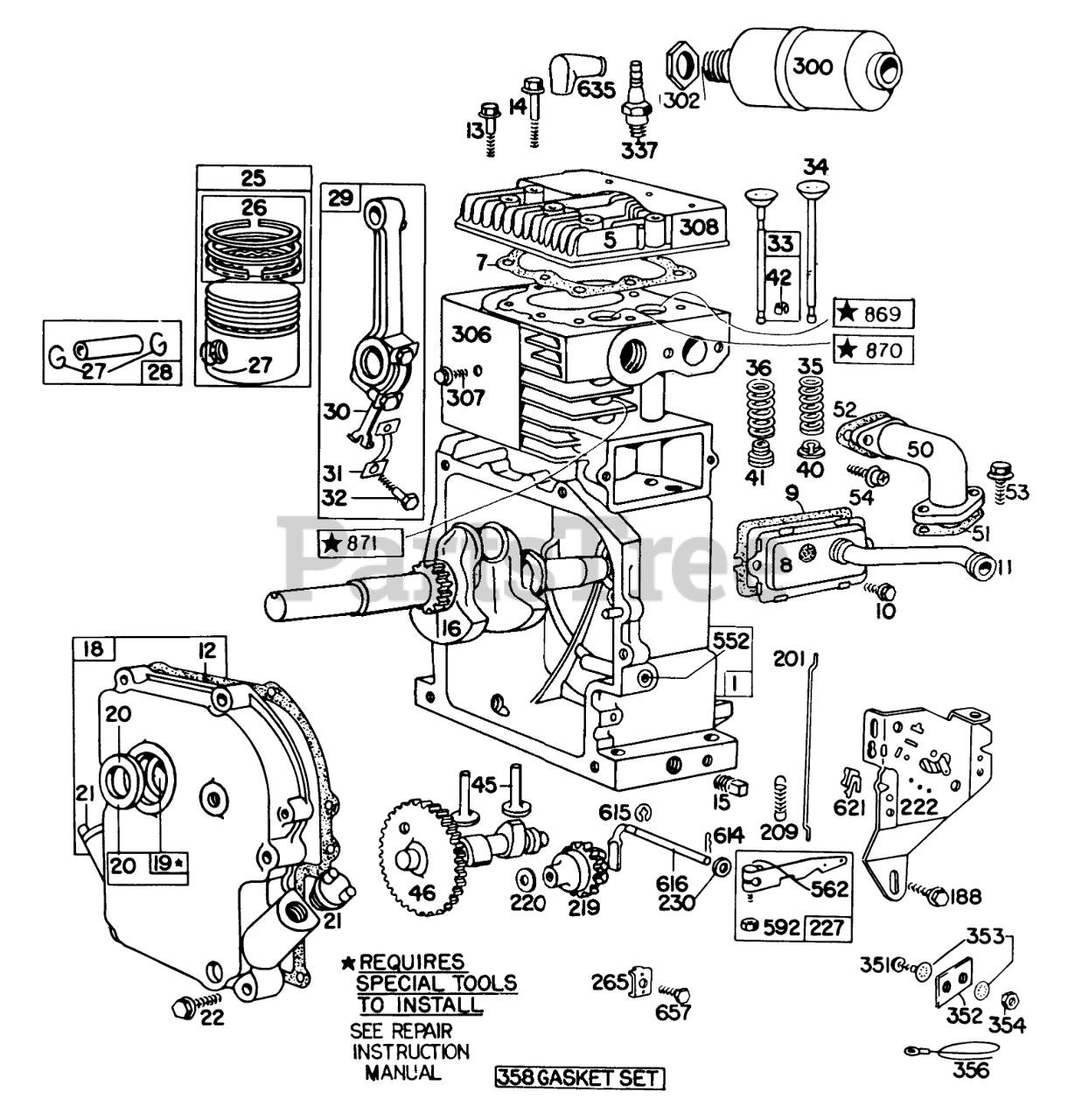

Engine Model No. 190402 Type 0989-01 (model 38155) Parts Diagram

  • Title

1

Toro 392001

Cylinder Assembly

$

$

Currently unavailable

5

Toro 211778

Head-Cylinder

$

$

Currently unavailable

7

Toro 270430

Gasket-Cylinder Hd.

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

8

Toro 390321

Breather Assembly

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

10

Toro 93536

Screw

$

$

Currently unavailable

11

Toro 67068

Tube-Breather

$

$

Currently unavailable

12

Toro 27750

Gasket-Crankcase Cover 1/64" Thick

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

Toro 27876

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

Toro 27877

33154A,55A,60A W/FO

Note: Included in Gasket Set-Part No. 299577

$3.23

$

Usually ships in 3-6 days

0

13

Toro 93113

Screw-Cylinder Head

$

$

Currently unavailable

14

Toro 93211

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 91084

Plug-Pipe

$

$

Currently unavailable

16

Toro 261077

Crankshaft

$

$

Currently unavailable

18

Toro 299167

Cover Assy.-Crankcase

$

$

Currently unavailable

19

Toro 295964

Bushing

$

$

Currently unavailable

20

Toro 298423

Seal-OiI

$

$

Currently unavailable

21

Toro 66768

Plug-Oil

$

$

Currently unavailable

22

Toro 93585

Screw-Sem

$

$

Currently unavailable

25

Toro 391673

Piston Assy.-Std.

$

$

Currently unavailable

Toro 391674

Piston Assy.-.010" OS.

$

$

Currently unavailable

Toro 391675

Piston Assy.-.020" OS.

$

$

Currently unavailable

Toro 391676

Piston Assembly

$

$

Currently unavailable

26

Toro 391669

Ring Piston-Std.

$

$

Currently unavailable

Toro 391670

Ring Set (.010" O.S.)

$

$

Currently unavailable

Toro 391671

Ring Set (.020" O.S.)

$

$

Currently unavailable

Toro 391672

Ring Set (.030" O.S.)

$

$

Currently unavailable

27

Toro 68546

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 295840

Assembly-Piston-Std

$

$

Currently unavailable

Toro 295841

Pin-Piston (.005" O.S.)

$

$

Currently unavailable

29

Toro 390401

Rod Assy.-Connecting

$

$

Currently unavailable

30

Toro 222113

Dipper-Conn. Rod

$

$

Currently unavailable

31

Toro 222114

Lock-Conn. Rod Screw

$

$

Currently unavailable

32

Toro 92659

Screw Conn. Rod

$

$

Currently unavailable

33

Toro 390419

Valve-Exhaust

$

$

Currently unavailable

34

Toro 261055

VaIve-Intake

$

$

Currently unavailable

35

Toro 65906

Spring-Valve

$

$

Currently unavailable

36

Toro 26828

Spring-Valve

$

$

Currently unavailable

40

Toro 221596

Retainer-Valve

$

$

Currently unavailable

41

Toro 292260

Retainer-Valve

$

$

Currently unavailable

42

Toro 93630

Retainer-Rotocoil

$

$

Currently unavailable

45

Toro 260933

Tappet-Valve

$

$

Currently unavailable

46

Toro 211689

Gear-Cam

$

$

Currently unavailable

50

Toro 211812

Elbow-Intake

$

$

Currently unavailable

51

Toro 270684

Gasket-Carb. Mtg.

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

52

Toro 27828

Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

53

Toro 93128

Screw-Carburetor Mounting

$

$

Currently unavailable

54

Toro 93208

Screw-Sem

$

$

Currently unavailable

188

Toro 93535

Crew

$

$

Currently unavailable

201

Toro 260872

Link-Governor

$

$

Currently unavailable

209

Toro 261126

Spring-Gov.

$

$

Currently unavailable

219

Toro 391737

Gear Governor

$

$

Currently unavailable

220

Toro 221551

Washer-Thrust

$

$

Currently unavailable

222

Toro 390670

Plate-Gov. Control

$

$

Currently unavailable

227

Toro 391965

Lever Assy.-Governor

$

$

Currently unavailable

230

Toro 222450

DISCONTINUE-DESA

$

$

Not available

265

Toro 221535

Clamp-Casing

$

$

Currently unavailable

300

Toro 393010

Muffler-Exhaust

$

$

Currently unavailable

302

Toro 91242

Locknut-Muffler

$

$

Currently unavailable

306

Toro 221898

Screw-Cylinder

$

$

Currently unavailable

307

Toro 93163

Screw

$

$

Currently unavailable

308

Toro 221901

Cover-Cylinder Head

$

$

Currently unavailable

337

Toro 293918

Plug-Spark

$

$

Currently unavailable

351

Toro 90200

Screw-Terminal

$

$

Currently unavailable

352

Toro 66895

InsuIator

$

$

Currently unavailable

353

Toro 92791

Washer-Lock

$

$

Currently unavailable

354

Toro 90576

Nut

$

$

Currently unavailable

356

Toro 299500

Wire-Ground

$

$

Currently unavailable

358

Toro 299577

Gasket Set

$

$

Currently unavailable

552

Toro 231056

Crank-Governor

$

$

Currently unavailable

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 231082

Nut (Governor Control Lever)

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

615

Toro 93307

Retainer-Ring

$

$

Currently unavailable

616

Toro 231057

Ring-Retainer

$

$

Currently unavailable

621

Toro 297472

Switch-Stop

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

657

Toro 93496

Screw

$

$

Currently unavailable

869

Toro 211661

Seat-Ex. Valve

$

$

Currently unavailable

870

Toro 211661

Seat-Ex. Valve

$

$

Currently unavailable

871

Toro 230655

Guide-Valve

$

$

Currently unavailable
