38155 (826) - Toro Snow Thrower (SN: 007000001 - 007999999) (1987) Engine Briggs Stratton Model No. 190406-3054-01 (continued) Parts Diagram

Snow Thrower

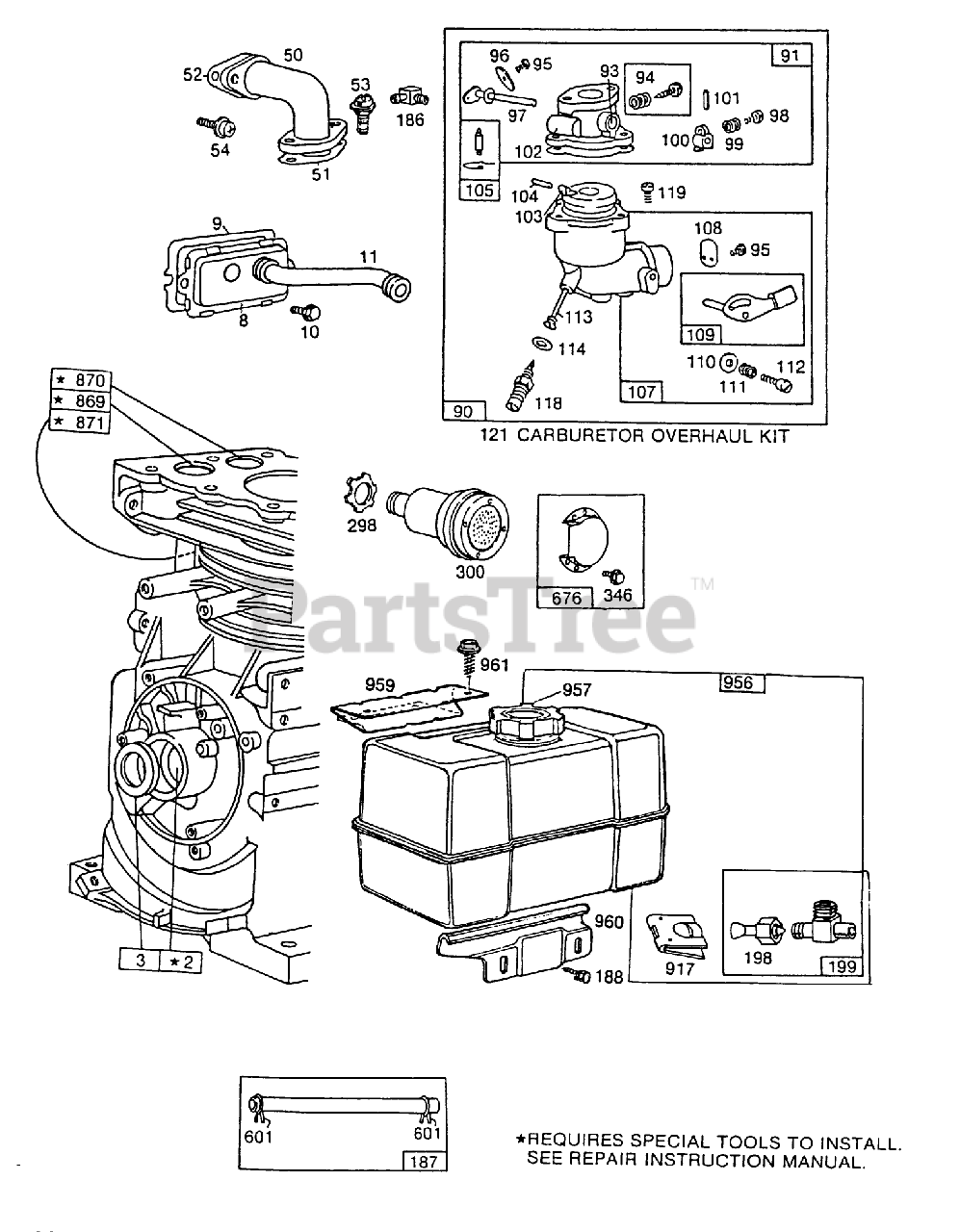

Engine Briggs Stratton Model No. 190406-3054-01 (continued) Parts Diagram

  • Title

2

Toro 295962

Bushing-Cylinder

$

$

Currently unavailable

3

Toro 294606

Seal-Oil

$

$

Currently unavailable

8

Toro 390321

Breather Assembly

$

$

Currently unavailable

9

*27803 Gasket-Valve Cover

Note: Included in Gasket Set-Part No. 299577.

$

$

Not available

10

Toro 93394

Screw

$

$

Currently unavailable

11

Toro 280733

Tube-Breather

$

$

Currently unavailable

50

Toro 490050

Elbow-Intake

$

$

Currently unavailable

51

*270684 Gasket-Carb. Mtg.

Note: Included in Gasket Set-Part No. 299577.

$

$

Not available

52

*27828 Gasket-Intake Elbow Mtg.

Note: Included in Gasket Set-Part No. 299577.

$

$

Not available

53

Toro 93357

Screw

$

$

Currently unavailable

54

Toro 93208

Screw-Sem

$

$

Currently unavailable

90

Toro 490140

Carburetor

$

$

Currently unavailable

91

Toro 399443

Body Assy.-Upper

$

$

Currently unavailable

93

Toro 23108

Bushing-Throttle Shaft

$

$

Currently unavailable

94

?292681 Valve Assy.-Carburetor Idle

Note: Included in Carburetor Overhaul Kit-Part No. 398235.

$

$

Not available

95

Toro 93499

Screw

$

$

Currently unavailable

96

Toro 62940

Value-Throttle

$

$

Currently unavailable

97

Toro 298826

Shaft-Throttle

$

$

Currently unavailable

98

Toro 91920

Screw

$

$

Currently unavailable

99

Toro 26157

Spring

$

$

Currently unavailable

100

Toro 61967

Stop-Throttle

$

$

Currently unavailable

101

Toro 93043

Pin

$

$

Currently unavailable

102

?27918 Gasket-Carburetor Body

Note: Included in Carburetor Overhaul Kit-Part No. 398235.

$

$

Not available

103

Toro 99333

Float-Carburetor

$

$

Currently unavailable

104

?230896 Pin-Float Hinge

Note: Included in Carburetor Overhaul Kit-Part No. 398235.

$

$

Not available

105

Toro 394681

Valve-Fuel Inlet

$

$

Currently unavailable

107

Toro 399258

Body Assy.-Lower

$

$

Currently unavailable

108

Toro 223727

Valve-Choke

$

$

Currently unavailable

109

Toro 391888

Shaft Assy.-Choke

$

$

Currently unavailable

110

Toro 222712

Washer

$

$

Currently unavailable

111

Toro 26155

Spring-Lever

$

$

Currently unavailable

112

Toro 23123

Screw-Choke Lever

$

$

Currently unavailable

113

?398202 Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 398235.

$

$

Not available

114

?68667 Gasket-Nozzle

Note: Included in Carburetor Overhaul Kit-Part No. 398235.

$

$

Not available

118

?99525 Valve-Needle

Note: Included in Carburetor Overhaul Kit-Part No. 398235.

$

$

Not available

119

Toro 94152

Screw

$

$

Currently unavailable

121

Toro 398235

Carburetor Kit

$

$

Currently unavailable

186

Toro 67218

Connector-Fuel

$

$

Currently unavailable

187

Toro 393815

Line-Vacuum

$

$

Currently unavailable

188

Toro 93535

Crew

$

$

Currently unavailable

198

Toro 293934

Valve-Shut Off

$

$

Currently unavailable

199

Toro 390303

Outlet-Fuel Tank

$

$

Currently unavailable

298

Toro 261409

Locknut-Mufler

$

$

Currently unavailable

300

Toro 393010

Muffler-Exhaust

$

$

Currently unavailable

346

Toro 93705

Screw

$

$

Currently unavailable

601

Toro 93807

Clamp-Hose

$

$

Currently unavailable

676

Toro 393757

Deflector-Exhaust

$

$

Currently unavailable

869

Toro 211661

Seat-Ex. Valve

$

$

Currently unavailable

870

Toro 211661

Seat-Ex. Valve

$

$

Currently unavailable

871

Toro 231218

Guide-Valve
(Superseded to 702263)

$

$

Not available

917

Toro 223271

Valve Handle

$

$

Currently unavailable

956

Toro 397928

Screw

$

$

Currently unavailable

957

Toro 397975

Cap-Fuel Tank

$

$

Currently unavailable

959

Toro 223462

Bracket-Fuel Tank (Up.)

$

$

Currently unavailable

960

Toro 222463

Bracket-Fuel Tank (Low.)

$

$

Currently unavailable

961

Toro 94095

Screw-Hex.

$

$

Currently unavailable
