38160 (1132) - Toro Snow Thrower (SN: 007000001 - 007999999) (1987) AUGER ASSEMBLY Parts Diagram

Snow Thrower

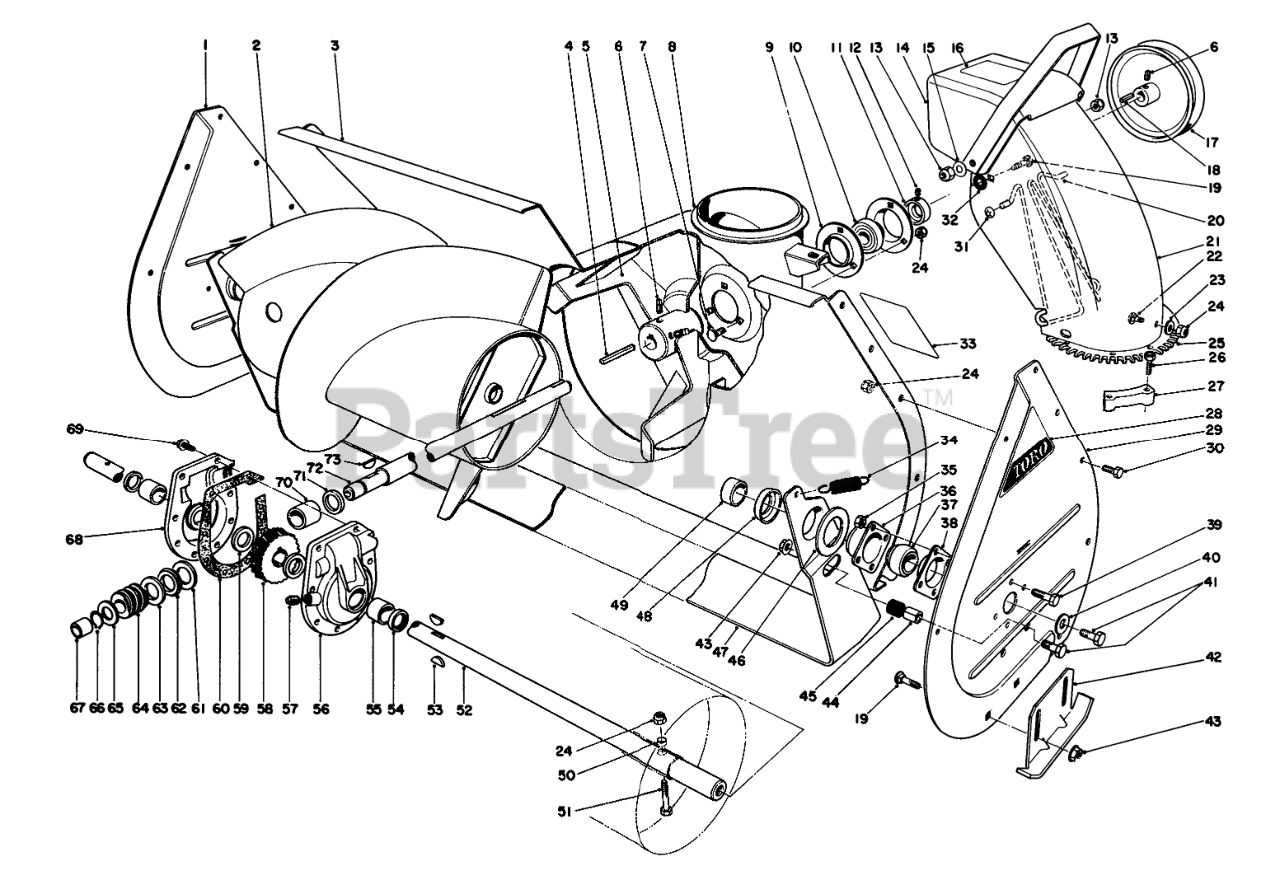

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 39-6120

RH AUGER SIDE PLT R

$

$

Not available

Toro 26-6180

RH AUGER ASM - 32"

Note: Not illustrated

$1066.99

$

Usually ships in 3-6 days

0

2

Toro 26-6190

LH AUGER WA 32" B

$1066.99

$

Usually ships in 3-6 days

0

3

Toro 25-5110

AUGER HSG WA 32" R

$1944.99

$

Usually ships in 3-6 days

0

4

Toro 6-8590

KEY

$13.99

$

Usually ships in 3-6 days

0

5

Toro 19-8890

IMPELLER ASM
(Superseded to 19-8890-03)

$753.99

$

Usually ships in 3-6 days

0

6

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, Qty 12

0

7

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

8

Toro 25-5170

CHUTE RING

$

$

Not available

9

Toro 251-229

BRG FLANGE

$50.99

$

In Stock, only 1 left!

0

10

Toro 251-224

BALL BRG W/COLLAR

$65.99

$

Usually ships in 3-6 days

0

11

Toro 251-231

EXT LOCKING COLLAR

$40.99

$

In Stock, only 1 left!

0

12

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

13

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, only 3 left!

0

14

Toro 11-93490

Deflector (Incl. Ref. #16)

$

$

Currently unavailable

15

Toro 3290-340

WASHER-BELLEVILLE

$8.99

$

In Stock, Qty 6

0

16

Toro 53-7660

Decal-Danger
(Superseded to 94-2558)

$42.99

$

In Stock, only 1 left!

0

17

Toro 5-7400

1/2 X 9.5 DIA PULLEY

$

$

Not available

18

Toro 3-6857

SQUARE KEY

$19.99

$

Usually ships in 3-6 days

0

19

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, only 1 left!

0

20

Toro 54-9770

CHUTE WIRE

$

$

Not available

21

Toro 56-2600

Chute-Upper
(Superseded to 92-6335-01)

$241.99

$

Usually ships in 3-6 days

0

22

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 25-5290

Screw
(Superseded to 25-5290-01)

$75.99

$

Usually ships in 3-6 days

0

26

Toro 27-0220

SCREW-SPECIAL

$8.49

$

In Stock, only 4 left!

0

27

Toro 25-5450

RETAINER-CHUTE

$41.99

$

In Stock, only 2 left!

0

28

Toro 17-6500

AUGER SIDE PLT DECAL

$

$

Not available

29

Toro 39-6130

LH AUGER SIDE PLT R

$

$

Not available

30

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

31

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

32

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 5

0

33

Toro 53-7670

DECAL-WARNING, AUGER
(Superseded to 94-2568)

$11.99

$

In Stock, only 3 left!

0

34

Toro 5-7290

SPRING-TENSION

$26.99

$

In Stock, only 1 left!

0

35

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

36

Toro 20-0990

BEARING-FLANGE, FRONT

$12.99

$

In Stock, Qty 7

0

37

Toro 20-0980

BEARING

$25.99

$

In Stock, Qty 9

0

38

Toro 20-1000

BEARING-FLANGE, REAR

$12.99

$

In Stock, Qty 7

0

39

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 3-0750

WASHER

$8.49

$

In Stock, only 2 left!

0

41

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

42

Toro 20-2840

AUGER SKID WA R
(Superseded to 20-2840-01)

$45.99

$

In Stock, Qty 9

0

43

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

44

Toro 25-5140

SCRAPER STOP SPACER

$

$

Not available

45

Toro 25-5150

SCRAPER STOP CUSHION

$9.99

$

Usually ships in 3-6 days

0

46

Toro 20-0300

SCRAPER BLADE SPACER

$10.99

$

Usually ships in 3-6 days

0

47

Toro 19-9160

SCRAPER BLADE 32" R

$368.99

$

Usually ships in 3-6 days

0

48

Toro 26-6400

Positioner-Scraper

$

$

Not available

49

Toro 26-6390

AUGER SPACER

$

$

Not available

50

Toro 25-5090

SPACER-HUB, AUGER

$12.99

$

In Stock, only 4 left!

0

51

Toro 17-7030

Auger Bolt
(Superseded to 322-12)

$2.49

$

In Stock, Qty 9

0

52

Toro 11-7010

32 AUGER SHAFT

$

$

Not available

53

Toro 3257-33

KEY-WOODRUFF

$2.49

$

Usually ships in 3-6 days

0

54

Toro 7-0045

SEAL-OIL

$20.99

$

In Stock, Qty 20+

0

55

Toro 256-237

BUSHING

$17.99

$

Usually ships in 3-6 days

0

56

Toro 37-8860

Gear Case L.H. (Incl. Ref. #54-55)
(Superseded to 14-2459)

$164.99

$

In Stock, only 2 left!

0

57

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

58

Toro 5-7180

GEAR-WORM, 27T

$173.99

$

Usually ships in 3-6 days

0

59

Toro 252-71

WASHER-THRUST

$18.99

$

In Stock, only 2 left!

0

60

Toro 51-0460

GASKET-CASE, GEAR

$9.99

$

In Stock, Qty 5

0

61

Toro 252-78

WASHER-THRUST

$24.99

$

Usually ships in 3-6 days

0

62

Toro 252-76

BEARING-THRUST

$23.99

$

In Stock, only 1 left!

0

63

Toro 252-77

THRUST-WASHER

$11.99

$

In Stock, only 3 left!

0

64

Toro 5-7170

GEAR

$124.99

$

In Stock, only 3 left!

0

65

Toro 3-8664

WASHER-THRUST

$7.49

$

In Stock, only 2 left!

0

66

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, Qty 7

0

67

Toro 256-32

BUSHING

$11.99

$

In Stock, Qty 9

0

68

Toro 37-8850

Gear Case R.H. (Incl. Ref. #54-55)
(Superseded to 14-2449)

$164.99

$

In Stock, only 2 left!

0

69

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

70

Toro 20-3210

BUSHING-SPECIAL

$13.99

$

In Stock, only 3 left!

0

71

Toro 237-87

RING-QUAD

$7.99

$

In Stock, Qty 7

0

72

Toro 19-8540

SHAFT-IMPELLER

$397.99

$

Usually ships in 3-6 days

0

73

Toro 3257-23

KEY-WOODRUFF

$7.99

$

In Stock, Qty 9

0

Toro 25-5280

Gear Case Assembly Complete

Note: Not illustrated

$

$

Not available

Toro 20-0650

Drift Breaker Kit

Note: Optional equipment

$

$

Not available
