38160 (1132) - Toro Snow Thrower (SN: 007000001 - 007999999) (1987) Starter Motor Kit Model No. 37-4630 (optional) Parts Diagram

Snow Thrower

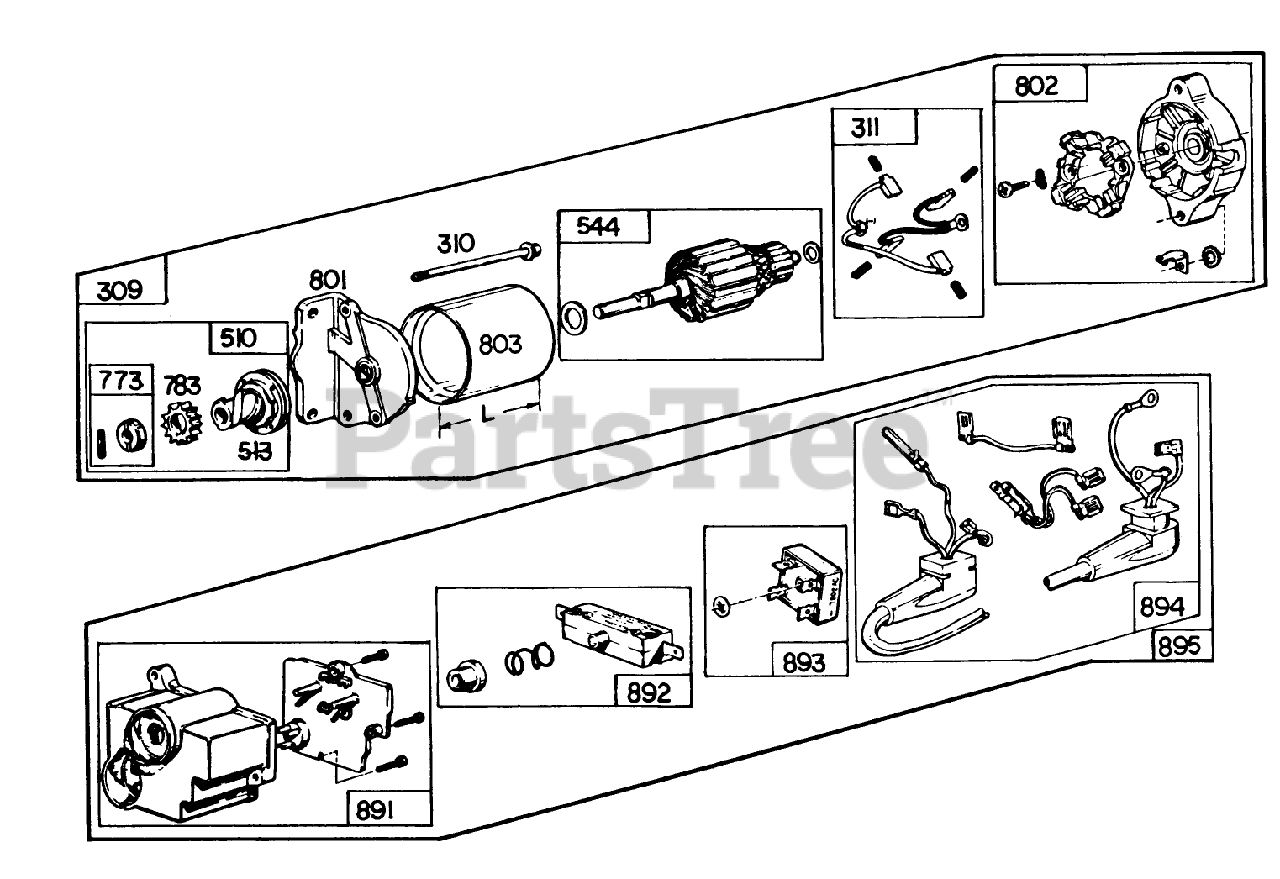

Starter Motor Kit Model No. 37-4630 (optional) Parts Diagram

  • Title

309

Toro 393851

Motor Drive Assembly

$

$

Currently unavailable

310

Toro 93889

Thru Bolt Assembly

$

$

Currently unavailable

311

Toro 393612

Brush Assembly

$

$

Currently unavailable

510

Toro 391461

Drive Assembly

$

$

Currently unavailable

513

Toro 391135

Clutch Assembly

$

$

Currently unavailable

544

Toro 393607

Armature Assembly

$

$

Currently unavailable

773

Toro 391462

Gear-Starter

$

$

Currently unavailable

783

Toro 280104

Gear

$

$

Currently unavailable

801

Toro 393228

Drive End Cap Assembly

$

$

Currently unavailable

802

Toro 393833

Comm. End Cap Assembly

$

$

Currently unavailable

803

Toro 393433

Housing Assembly

$

$

Currently unavailable

891

Toro 393705

Housing Group

$

$

Currently unavailable

892

Toro 393708

Switch Group

$

$

Currently unavailable

893

Toro 393707

Rectifier

$

$

Currently unavailable

894

Toro 393706

Lead Group

$

$

Currently unavailable

895

Toro 393486

Control Group

$

$

Currently unavailable

Toro 38-0070

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 38-0070

DISCONTINUED

Note: Obtain from The Toro Co.

$

$

Not available

Toro 3296-2

NUT-LOCK, NI

Note: Obtain from The Toro Co.

$2.49

$

In Stock, Qty 13

0

Toro 3296-2

NUT-LOCK, NI

Note: Not illustrated

$2.49

$

In Stock, Qty 13

0

Toro 3252-6

10-24 X 1 FIL HD MS

Note: Not illustrated

$

$

Currently unavailable

Toro 3252-6

10-24 X 1 FIL HD MS

Note: Obtain from The Toro Co.

$

$

Currently unavailable
