38162 (S-620) - Toro Snow Thrower (SN: 006000001 - 006999999) (1986) Carburetor No. 632142a Parts Diagram

Snow Thrower

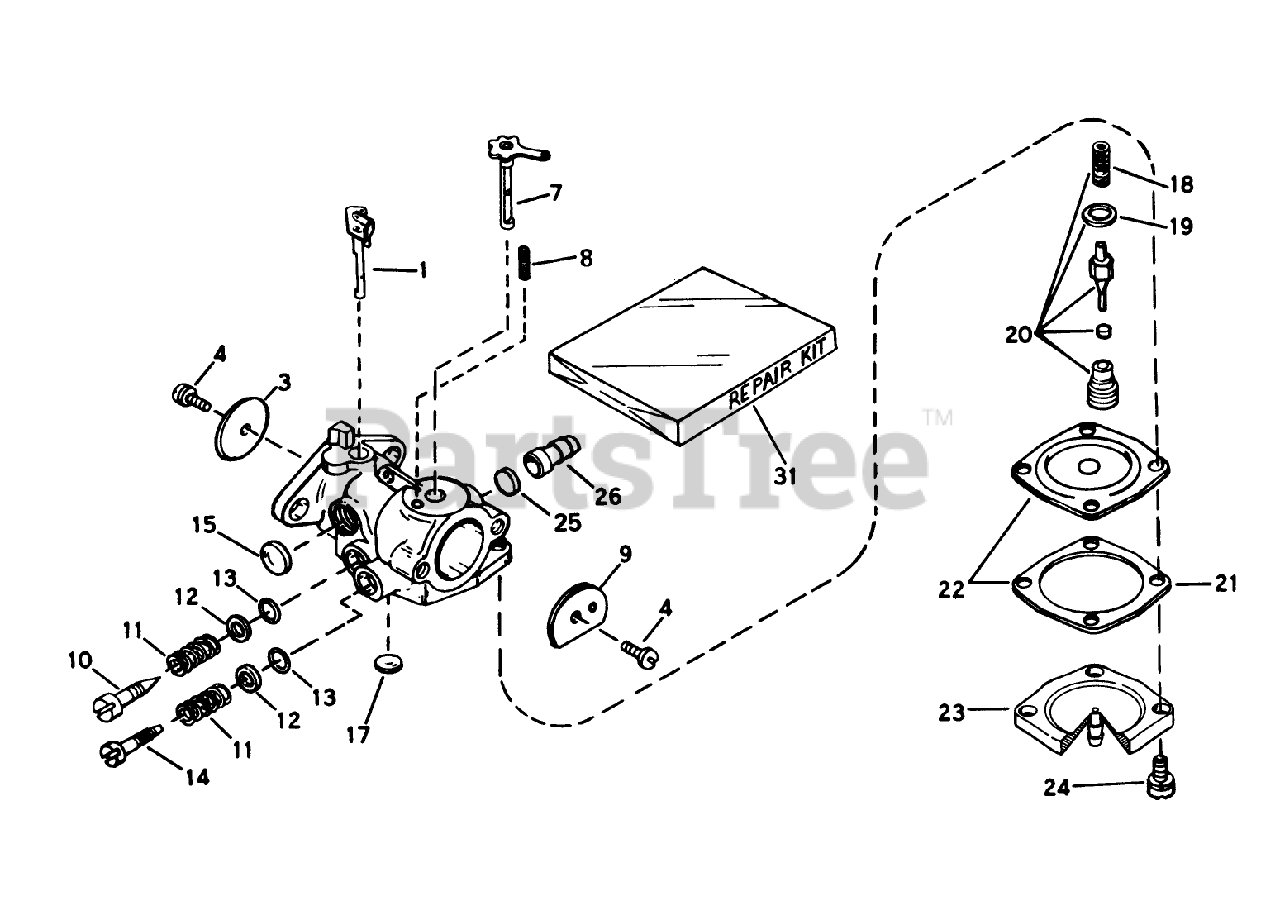

Carburetor No. 632142a Parts Diagram

  • Title

1

Toro 632130

Shaft/Lever-Throttle

$

$

Currently unavailable

3

Toro 631036

Shutter-Throttle

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

7

Toro 631888

Shaft Lever Assembly

$

$

Currently unavailable

8

Toro 630735

Spring-Positioning, Choke

$

$

Currently unavailable

9

Toro 31837

DISCONTINUED

$

$

Not available

10

Toro 631562

Screw-Idle Adjustment

$

$

Currently unavailable

11

Toro 630738

Spring

$

$

Currently unavailable

12

Toro 630739

Washer

$

$

Currently unavailable

13

Toro 630740

ORing

Note: Included in Repair Kit part no. 631893.

$

$

Currently unavailable

14

Toro 630898

Screw Main Adjustment

$

$

Currently unavailable

15

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Included in Repair Kit part no. 631893.

$

$

Currently unavailable

17

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Included in Repair Kit part no. 631893.

$

$

Currently unavailable

18

Toro 631049

Spring-Valve

$

$

Currently unavailable

19

Toro 630742

Gasket-Valve Seat

$

$

Currently unavailable

20

Toro 630932A

Inlet Needle, Seat, Spring Gasket Assy. (lncl. #1819)

Note: Included in Repair Kit part no. 631893.

$

$

Currently unavailable

21

Toro 630750

Gasket-Diaphragm

$

$

Currently unavailable

22

Toro 630978

Diaphragm Ass. (Incl. No. 21)

Note: Included in Repair Kit part no. 631893.

$

$

Currently unavailable

23

Toro 632127

Cover-Diaphragm

$

$

Currently unavailable

24

Toro 650817

Screw

$

$

Currently unavailable

25

Toro 632163

Disk

$

$

Currently unavailable

26

Toro 632164

Fitting-Fuel

$

$

Currently unavailable

31

Toro 631893

Kit-Repair

$

$

Currently unavailable
