38172 - Toro CCR Powerlite Snow Thrower (SN: 280000001 - 280999999) (2008) Engine Assembly Tecumseh TH098SA-1723F Parts Diagram

CCR Powerlite Snow Thrower

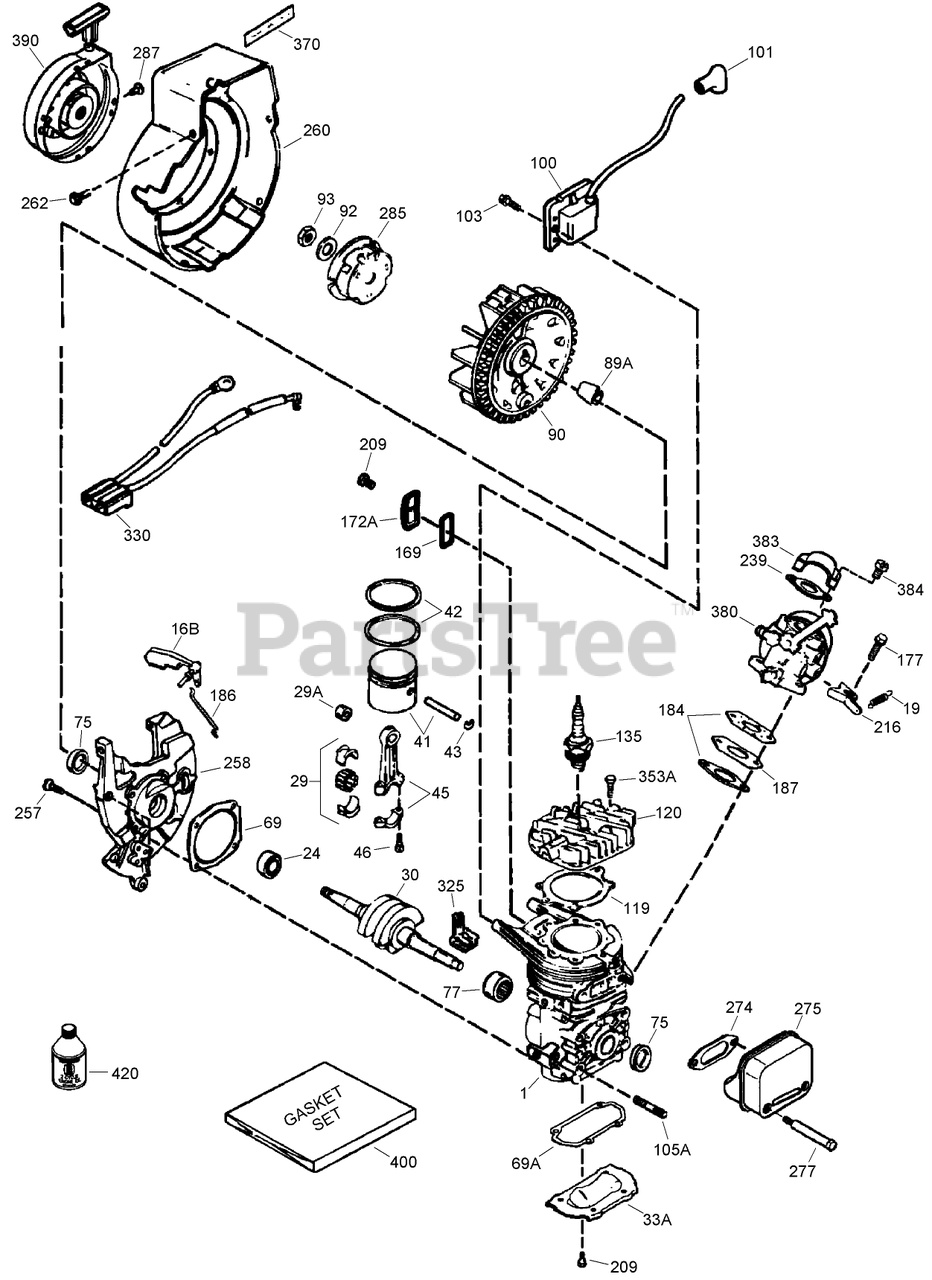

Engine Assembly Tecumseh TH098SA-1723F Parts Diagram

  • Title

1

Toro 710515A

Short Block-Replacement

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

16B

Toro 490291A

Vane-Air

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

19

Toro 570707

Spring-Extention

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

24

Toro 530110

Bearing-Ball

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

29

Toro 530150A

Needle Bearing and Liner Set (37 Needle)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

29A

Toro 530104A

Bearing-Cartridge

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

30

Toro 290602

Crankshaft

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

33A

Toro 570644

Plate-Cover

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

41

Toro 310294A

Piston and Pin Asm

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

42

Toro 310289A

Ring Set

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

43

Toro 310167

Ring-Retaning

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

45

Toro 310235C

Connecting Rod Asm (Includes 29)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

46

Toro 650633

Bolt-Rod, Connecting

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

69

Toro 510292A

Gasket-Cover, Cylinder

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

75

Toro 510319

Seal-Oil

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

77

Toro 530105

Bearing-Cartridge

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

89A

Toro 611032

Blade (20 inch)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

89A

Toro 611032

Blade (20 inch)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

90

Toro 611066

CARB BODY S

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

90

Toro 611066

CARB BODY S

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

92

Toro 650815

Washer-Belleville

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

93

Toro 650390

Nut-Flywheel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

100

Toro 34443C

Ignition-State, Solid

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

101

Toro 610118

Cover-Spark Plug

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

103

Toro 651007

Screw (T-15, 10-24 x 15/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

105A

Toro 650796

Stud

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

119

Toro 510274A

Gasket-Head, Cylinder

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

120

Toro 250240B

Head-Cylinder

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

135

Toro 611049

Spark Plug-Resistor (R C J 8Y)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

169

Toro 510323A

Gasket-Plate, Cover

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

172A

Toro 570708

Cover-Release, Compression

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

177

Toro 650959

Screw (5/32 Allen, 1/4-20 x 1)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

184

Toro 510326A

Gasket-Carburetor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

186

Toro 490322

Governor-Link

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

187

Toro 570438A

Spacer

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

209

Toro 650579

Screw (T-25, 10-24 x 1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

216

Toro 570645

Lever-Adjusting, Rpm

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

239

Toro 35815

2060A77 WIZARD ROTA

Note: Obtain parts from www.tecumsehpower.com

$3.23

$

Usually ships in 3-6 days

0

257

Toro 650911

Screw (T-30, 1/4-20 x 5/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

258

Toro 350422

Base Ass-y-Blower Housing (Incl Ref. #20)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

260

Toro 350437

Housing-Blower

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

262

Toro 650737

Screw (1/4-20 x 1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

274

Toro 510207A

Gasket-Exhaust

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

275

Toro 390332

Muffler (Incl. Ref. #274 277)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

277

Toro 650869

Screw (1/4-20 x 2-3/4)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

285

Toro 590551A

Cup-Starter

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

287

Toro 650926

Screw (8-32 x 21/64)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

325

Toro 29443

Clip-Wire

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

330

Toro 611131A

Harness-Wire

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

353A

Toro 650477

Screw (T-30, 1/4-20 x 3/4)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

370

Toro 36695

Decal-Tecumseh Logo for Top of Recoil Starter
(Superseded to 704857)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

380

Toro 640086A

Carburetor (Incl. 184 of Engine Parts List)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

383

Toro 570434

Baffle-Carburetor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

384

Toro 650431

Screw (T-25, 10-32 x 5/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

390

Toro 590745

Starter-Rewind

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

400

Toro 510324B

Gasket Set

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

420

Toro 730227D

Oil-2 Cycle (8 Oz)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

Toro 900392B

Engine-Replacement

Note: Not illustrated

$

$

Currently unavailable

Toro 900392B

Engine-Replacement

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable
