381777-0110-E1 - Briggs & Stratton Vertical Engine Cylinder, Piston/Rings/Connecting Rod, Lubrication Parts Diagram

Vertical Engine

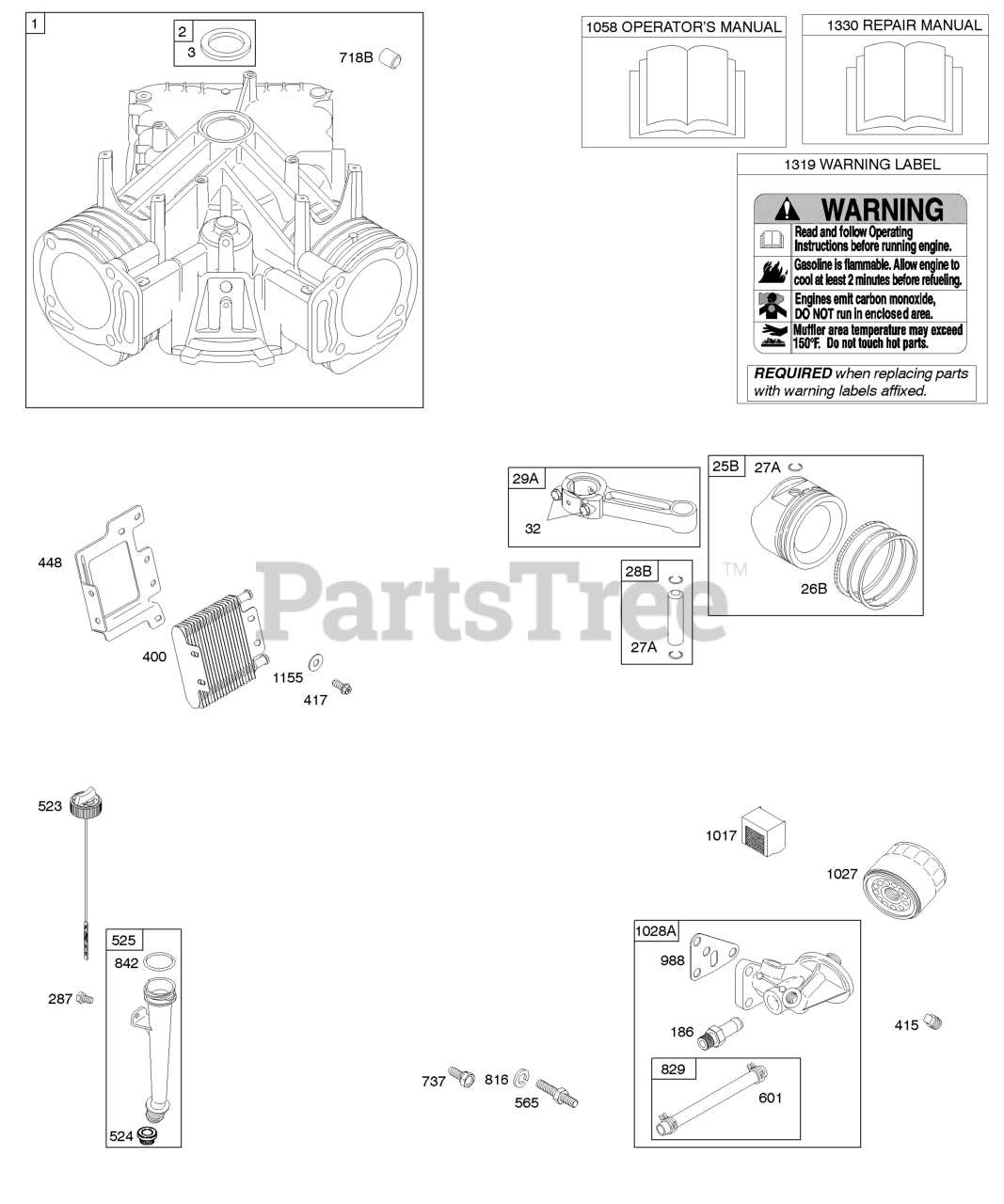

Cylinder, Piston/Rings/Connecting Rod, Lubrication Parts Diagram

  • Title

1

Briggs & Stratton 808809

Cylinder Assembly
(Superseded to 843541)

Note: Used Before Code Date 05080100

$

$

Not available

1

Briggs & Stratton 842624

Cylinder Assembly

Note: Used After Code Date 05073100

$675.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

Kit-Bushing/Seal

Note: (Magneto Side)

$

$

Not available

3

Briggs & Stratton 805101S

Seal-Oil
(Superseded to 845659)

Note: (Magneto Side)

$13.99

$

In Stock, Qty 13

0

25B

Briggs & Stratton 808527

Piston Assembly
(Superseded to 844009)

Note: (Standard)

$149.99

$

In Stock, only 2 left!

0

25B

Briggs & Stratton 808652

Piston Assembly
(Superseded to 843823)

Note: (.020 Oversize)

$

$

Not available

26B

Briggs & Stratton 808528

Ring Set
(Superseded to 843806)

Note: (Standard)

$58.99

$

In Stock, Qty 5

0

26B

Briggs & Stratton 808661

Ring Set
(Superseded to 843824)

Note: (.020 Oversize)

$

$

Not available

27A

Briggs & Stratton 806378

Lock-Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28B

Briggs & Stratton 808526

Pin-Piston

$17.99

$

Usually ships in 2-12 days

0

29A

Briggs & Stratton 808646

Rod-Connecting
(Superseded to 844009)

$149.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 690698

Screw

Note: (Connecting Rod)

$7.99

$

In Stock, only 3 left!

0

186

Briggs & Stratton 693184

Connector-Hose

$10.99

$

Usually ships in 2-12 days

0

287

Briggs & Stratton 807084

SCREW

Note: (Dipstick Tube)

$3.99

$

In Stock, only 3 left!

0

400

Briggs & Stratton 808657

Cooler-Oil
(Superseded to 846489)

$155.99

$

In Stock, only 1 left!

0

415

Briggs & Stratton 690283

Plug
(Superseded to 794903)

Note: (Oil Filter Adapter)

$5.99

$

In Stock, Qty 8

0

417

Briggs & Stratton 810074

Screw
(Superseded to 843345)

Note: (Oil Cooler)

$5.99

$

Usually ships in 2-12 days

0

448

Briggs & Stratton 806423

Bracket-Oil Cooler

$36.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 692101

Dipstick

$26.99

$

In Stock, only 2 left!

0

524

Briggs & Stratton 692053

Seal-Dipstick Tube

$6.99

$

In Stock, only 2 left!

0

525

Briggs & Stratton 692093

Tube-Dipstick

$22.99

$

In Stock, only 2 left!

0

565

Briggs & Stratton 690682

Stud

Note: (Oil Filter Adapter)

$4.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 841597

CLAMP, Hose

Note: (Oil Hose)

$4.49

$

In Stock, only 3 left!

0

718B

Briggs & Stratton 806469

Pin-Locating

$6.49

$

In Stock, only 2 left!

0

737

Briggs & Stratton 690679

Screw

Note: (Oil Filter Adapter)

$3.99

$

In Stock, only 2 left!

0

816

Briggs & Stratton 690706

Washer

Note: (Oil Filter Adapter)

$4.49

$

In Stock, only 2 left!

0

829

Briggs & Stratton 841999

Hose-Oil

$51.99

$

In Stock, only 2 left!

0

842

Briggs & Stratton 691870

Seal-O Ring

Note: (Dipstick Tube)

$4.49

$

In Stock, Qty 7

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, Qty 15

0

1017

Briggs & Stratton 690878

Screen-Oil Pump

$17.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 842921

Filter-Oil

$14.99

$

In Stock, Qty 20+

0

1028A

Briggs & Stratton 808537

Adapter-Oil Filter
(Superseded to 843898)

$100.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 277107

Operator's Manual

$

$

Not available

1155

Briggs & Stratton 806647

Washer

Note: (Oil Cooler)

$4.99

$

Usually ships in 2-12 days

0

1319

Briggs & Stratton 794467

LABEL, Warning

$23.99

$

In Stock, only 1 left!

0

1330

Briggs & Stratton 272144

Repair Manual

$48.99

$

Usually ships in 2-12 days

0
