38181 (CCR 2000) - Toro Snow Thrower (SN: 010000001 - 019999999) (1991) CONTROL PANEL & SHROUDING ASSEMBLY Parts Diagram

Snow Thrower

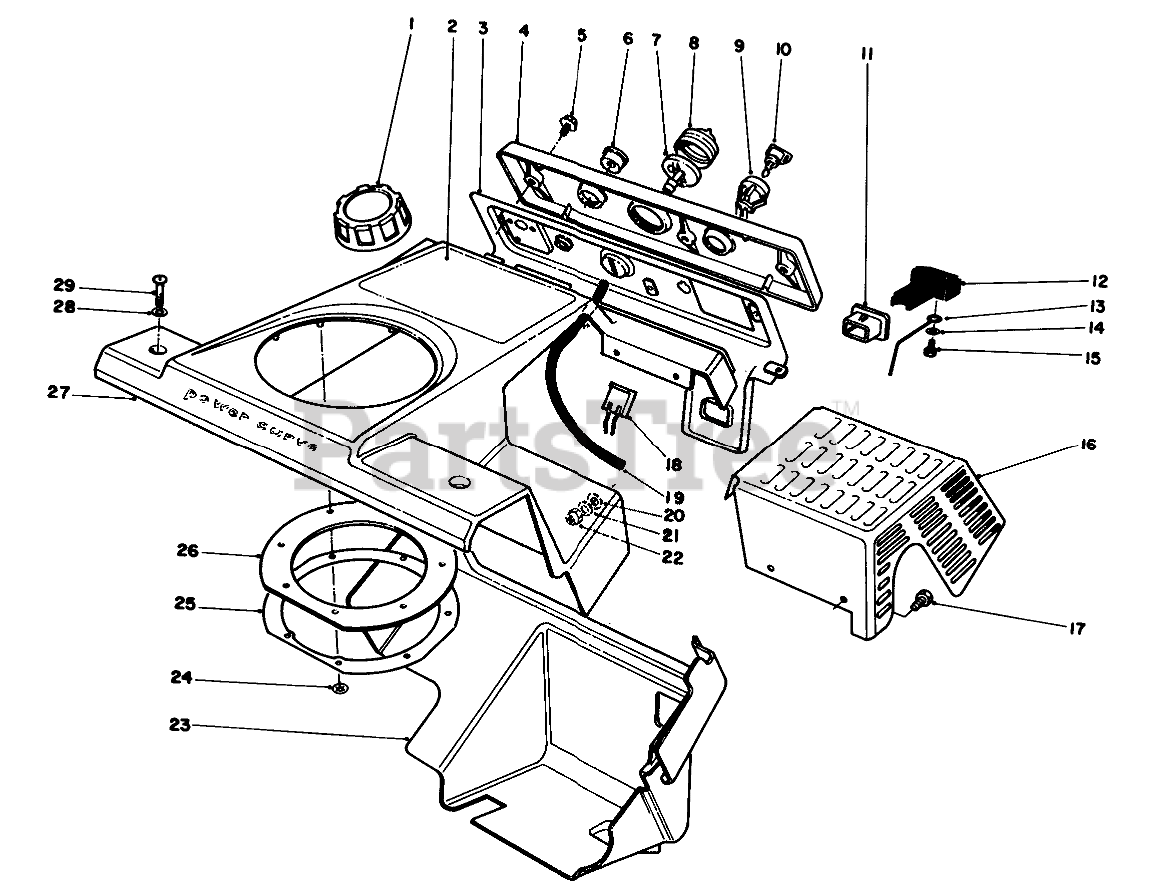

CONTROL PANEL & SHROUDING ASSEMBLY Parts Diagram

  • Title

1

Toro 55-3573

CAP-FUEL ASM
(Superseded to 104-4133)

$14.99

$

Usually ships in 3-6 days

0

2

Toro 77-5220

DECAL - CCR 2000E

$

$

Not available

3

Toro 12-4659

Control Panel Assembly (Incl. Ref. #6-8 & 11)

$87.99

$

Usually ships in 3-6 days

0

4

Toro 55-9350

CONTROL NAMEPLATE
(Superseded to 104-2771)

$

$

Not available

Toro 60-9490

CONT NAMEPLATE-INTL

$

$

Not available

5

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

6

Toro 55-9410

GUIDE-ROPE, STARTER

$9.49

$

Usually ships in 3-6 days

0

7

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

8

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

9

Toro 40-5940

SWITCH

$15.99

$

In Stock, Qty 11

0

10

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

11

Toro 55-8820

FITTING

$8.49

$

In Stock, only 3 left!

0

12

Toro 55-8810

CONTROL-CHOKE

$11.99

$

In Stock, only 3 left!

0

Toro 55-8811

CHOKE CONTROL

$

$

Not available

13

Toro 61-4650

Linkage-Choke
(Superseded to 94-2797)

$28.99

$

In Stock, Qty 9

0

14

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

15

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

16

Toro 55-9210

Wa-Shield
(Superseded to 55-9210-03)

$

$

Not available

17

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

18

Toro 218-532

CONNECTOR-BODY

$13.99

$

Usually ships in 3-6 days

0

19

Toro 44-3171

PRIMER HOSE

$8.99

$

In Stock, only 4 left!

0

20

Toro 55-9660

WASHER

$1.49

$

Usually ships in 3-6 days

0

21

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

Usually ships in 3-6 days

0

23

Toro 55-8790

Shroud-Lower
(Superseded to 55-8791)

$

$

Not available

24

Toro 3290-474

PALNUT

$0.99

$

In Stock, Qty 11

0

25

Toro 55-9540

Retainer-Chute Seal
(Superseded to 55-9540-03)

$18.99

$

In Stock, only 1 left!

0

26

Toro 55-9260

SEAL-CHUTE
(Superseded to 105-3543)

$12.99

$

In Stock, only 1 left!

0

27

Toro 12-4649

Upper Shroud Assembly (Incl. Ref. #2 & 24-26)
(Superseded to 94-2796)

$

$

Not available

28

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0
