38185 (CCR 2000) - Toro Snow Thrower (SN: 049000001 - 049999999) (1994) STARTER MOTOR & SWITCH HOUSING ASSEMBLY Parts Diagram

Snow Thrower

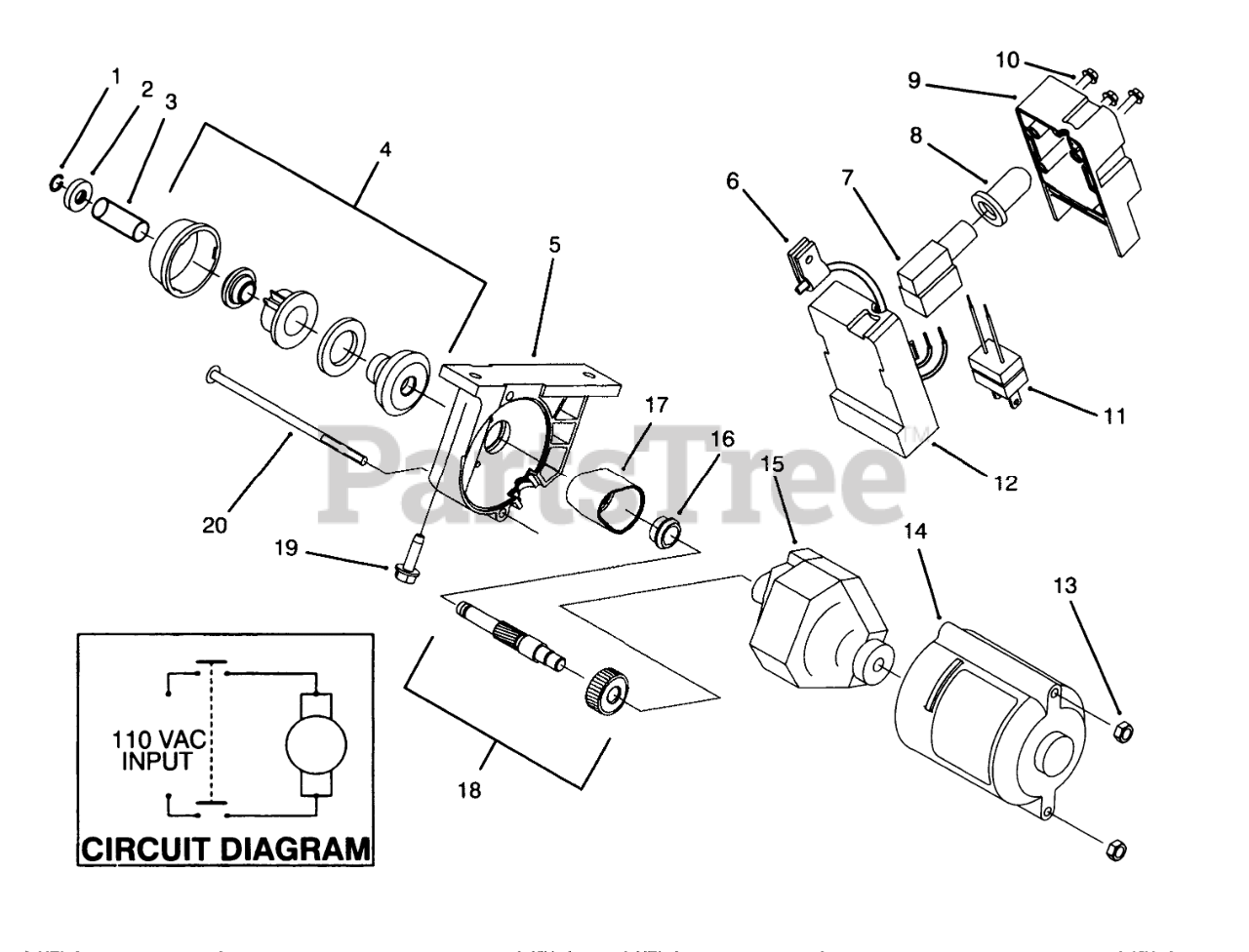

STARTER MOTOR & SWITCH HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 20+

0

2

Toro 61-4670

PINION STOP

$15.99

$

In Stock, only 3 left!

0

3

Toro 61-4690

SPRING

$

$

Not available

4

Toro 61-4700

Pinion ASM

$

$

Not available

5

Toro 80-0710

HOUSING

$

$

Not available

6

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

7

Toro 61-4820

SWITCH-STARTER

$19.99

$

In Stock, only 3 left!

0

8

Toro 61-4810

BOOT-SWITCH

$

$

Not available

9

Toro 80-3740

Cap-Switch Housing
(Superseded to 100-3442)

$14.99

$

Usually ships in 3-6 days

0

10

Toro 32144-27

SCREW-PLASTITE

$

$

Not available

11

Toro 36-8370

Plug
(Superseded to 94-9933)

$

$

Not available

12

Toro 80-3730

OBS BASE X
(Superseded to 98-2253)

$

$

Not available

13

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 15

0

14

Toro 83-7350

HOUSING - LOWER STARTER

$

$

Not available

15

Toro 70-7801

STARTER MOTOR ASSEMBLY

$

$

Not available

16

Toro 70-7900

BUSHING

$3.99

$

Usually ships in 3-6 days

0

17

Toro 70-7850

COVER-GEAR

$12.99

$

Usually ships in 3-6 days

0

18

Toro 92-6003

Asm-shaft & Gear
(Superseded to 105-8831)

$129.99

$

Usually ships in 3-6 days

0

19

Toro 56-6380

SCREW
(Superseded to 110-3986)

$1.49

$

Usually ships in 3-6 days

0

20

Toro 32144-101

SCREW

$1.99

$

In Stock, only 4 left!

0
