38190 (CCR 1000) - Toro Snow Thrower (SN: 000000001 - 000999999) (1990) HANDLE ASSEMBLY Parts Diagram

Snow Thrower

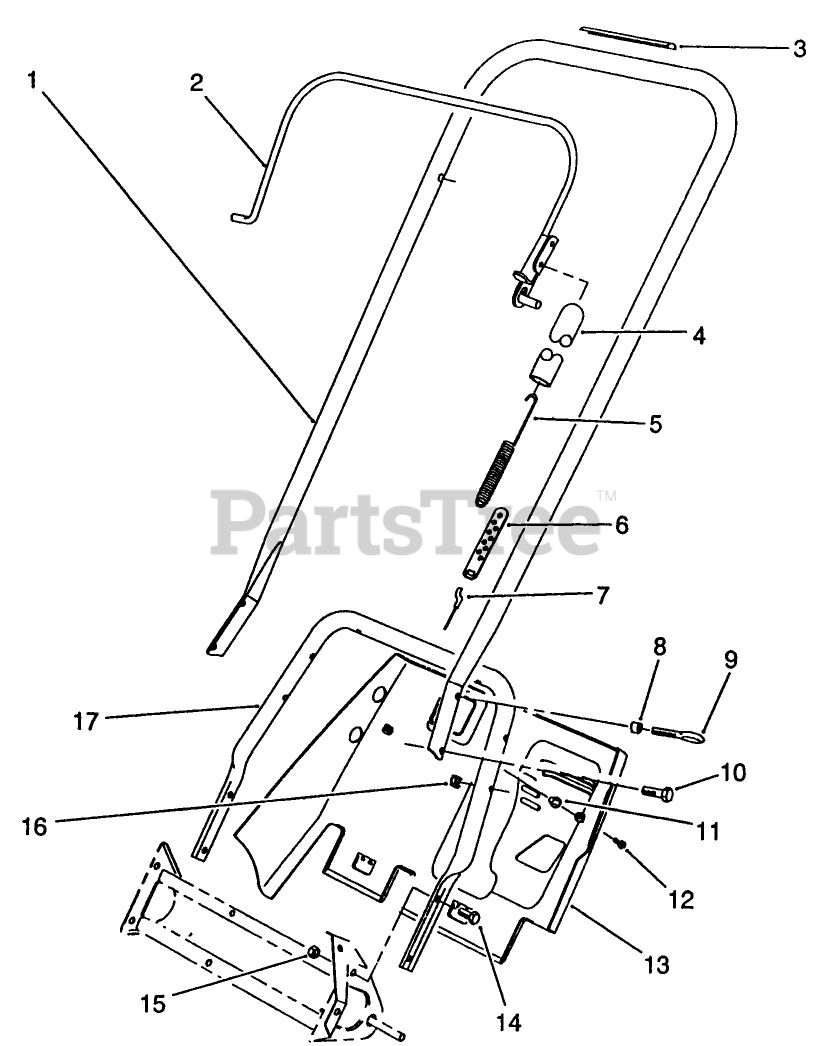

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 71-5090

Handle-Upper
(Superseded to 100-3599)

$

$

Not available

2

Toro 71-5120

Bail
(Superseded to 71-5120-03)

$40.99

$

In Stock, only 3 left!

0

3

Toro 66-6870

DECAL - ROTOR DRIVE
(Superseded to 104-2775)

$3.49

$

Usually ships in 3-6 days

0

4

Toro 71-5530

COVER-SPRING

$4.99

$

In Stock, only 2 left!

0

5

Toro 71-5480

SPRING-CLUTCH

$6.99

$

In Stock, only 2 left!

0

6

Toro 71-5330

ADJUSTER-CABLE, CLUTCH
(Superseded to 136-7126)

$6.99

$

In Stock, Qty 20+

0

7

Toro 71-5400

Cable-Clutch
(Superseded to 55-9322)

$9.99

$

In Stock, Qty 9

0

8

Toro 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, Qty 8

0

9

Toro 3299-1

EYEBOLT

$

$

Not available

10

Toro 32105-11

SCREW-HEX HD SLOT
(Superseded to 108-7301)

$1.99

$

In Stock, only 1 left!

0

11

Toro 3290-486

EXPANSION TYPE FASTENER

$1.49

$

In Stock, Qty 8

0

12

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.49

$

In Stock, Qty 10

0

13

Toro 71-5040

LOWER SHROUD

$

$

Not available

Toro 71-5041

LOWER SHROUD
(Superseded to 71-5040)

$

$

Not available

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 3290-225

TINNERMAN NUT

$8.99

$

In Stock, only 4 left!

0

17

Toro 71-5370

Handle-Lower
(Superseded to 71-5370-03)

$52.99

$

Usually ships in 3-6 days

0
