38195 (CCR 1000) - Toro Snow Thrower (SN: 010000001 - 019999999) (1991) Starter Motor Assembly Parts Diagram

Snow Thrower

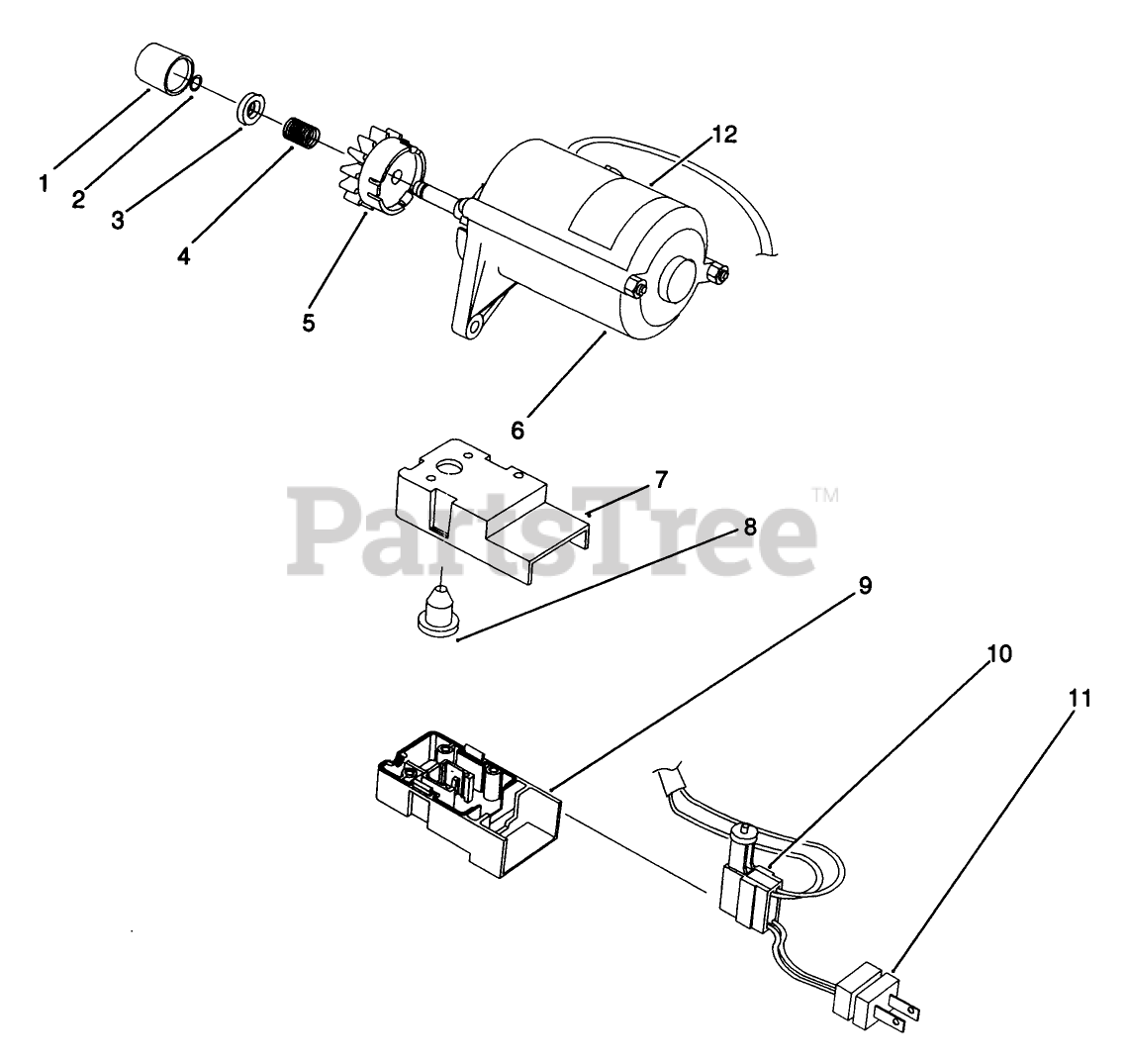

Starter Motor Assembly Parts Diagram

  • Title

1

Toro 70-7890

CAP-PINION

$

$

Not available

2

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 18

0

3

Toro 61-4670

PINION STOP

$15.99

$

In Stock, only 3 left!

0

4

Toro 61-4690

SPRING

$

$

Not available

5

Toro 80-4710

See Supercession: 84-5240
(Superseded to 84-5240)

$

$

Not available

6

Toro 70-7800

DISCONTINUED,ORDER COMP STARTER

$

$

Not available

7

Toro 80-3740

See Supercession: 100-3442
(Superseded to 100-3442)

$14.99

$

Usually ships in 3-6 days

0

8

Toro 36-8350

BOOT-SWITCH

$10.99

$

In Stock, Qty 6

0

9

Toro 80-3730

See Supercession: 98-2253
(Superseded to 98-2253)

$

$

Not available

10

Toro 36-8340

SWITCH-STARTER

$31.99

$

In Stock, only 1 left!

0

11

Toro 36-8370

See Supercession: 94-9933
(Superseded to 94-9933)

$

$

Not available

12

Toro 77-0410

DISCONTINUED

$

$

Not available

Toro 77-0401

DISCONTINUED
(Superseded to 105-2953)

$

$

Not available
