38195 (CCR 1000) - Toro Snow Thrower (SN: 020000001 - 029999999) (1992) Engine Tecumseh Model No. Hsk600 Type 1667p (model No. 38195 Only) Parts Diagram

Snow Thrower

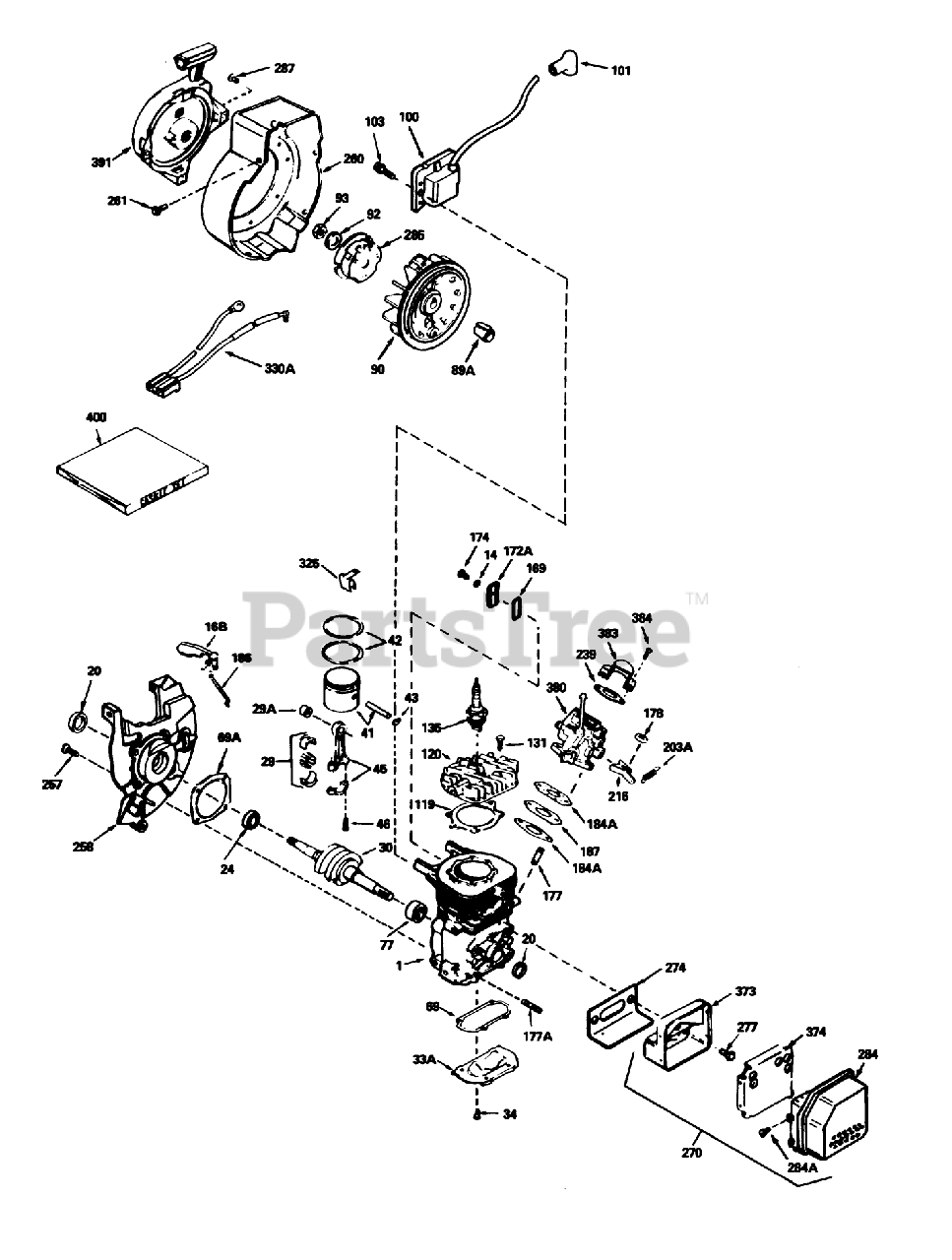

Engine Tecumseh Model No. Hsk600 Type 1667p (model No. 38195 Only) Parts Diagram

  • Title

1

Block Ass-y-Cylinder (Order short block if replacement is required)

$

$

Not available

14

Toro 650838

Washer

$

$

Currently unavailable

16B

Toro 490291A

Vane-Air

$

$

Currently unavailable

20

Toro 510319

Seal-Oil

$

$

Currently unavailable

24

Toro 530110

Bearing-Ball

$

$

Currently unavailable

29

Toro 530150

Needle Bearing and Liner Set (37 Needles)

$

$

Currently unavailable

29A

Toro 530104A

Bearing-Cartridge

$

$

Currently unavailable

30

Toro 290602

Crankshaft

$

$

Currently unavailable

33A

Toro 570644

Plate-Cover

$

$

Currently unavailable

34

Toro 650579

Screw (T-25, 10-24 x 1/2)

$

$

Currently unavailable

41

Toro 310283A

Piston (Incl. Ref. #43)

$

$

Currently unavailable

42

Toro 310190

Ring Set

$

$

Currently unavailable

43

Toro 310167

Ring-Retaning

$

$

Currently unavailable

45

Toro 310235B

Rod Assy.-Connecting (Incl. Ref. #3, 3A 3B)

$

$

Currently unavailable

46

Toro 650633

Bolt-Rod, Connecting

$

$

Currently unavailable

69

Toro 510323A

Gasket-Plate, Cover

$

$

Currently unavailable

69A

Toro 510292A

Gasket-Cover, Cylinder

$

$

Currently unavailable

77

Toro 530105

Bearing-Cartridge

$

$

Currently unavailable

89A

Toro 611032

Blade (20 inch)

$

$

Currently unavailable

90

Toro 611066

CARB BODY S

$

$

Not available

92

Toro 650815

Washer-Belleville

$

$

Currently unavailable

93

Toro 650390

Nut-Flywheel

$

$

Currently unavailable

100

Toro 34443A

Solid State

$

$

Currently unavailable

101

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

103

Toro 650814

Screw

$

$

Currently unavailable

119

Toro 510274A

Gasket-Head, Cylinder

$

$

Currently unavailable

120

Toro 250240A

Head-Cylinder

$

$

Currently unavailable

131

Toro 650477

Screw (T-30, 1/4-20 x 3/4)

$

$

Currently unavailable

135

Toro 611049

Spark Plug-Resistor (R C J 8Y)

$

$

Currently unavailable

169

Toro 510325A

Cover-Compression, Release

$

$

Currently unavailable

172A

Toro 570647

Comp. Release Cover

$

$

Currently unavailable

174

Toro 650579

Screw (T-25, 10-24 x 1/2)

$

$

Currently unavailable

177

Toro 650916

Stud-Carburetor

$

$

Currently unavailable

177A

Toro 650796

Stud

$

$

Currently unavailable

178

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

184A

Toro 510326A

Gasket-Carburetor

$

$

Currently unavailable

186

Toro 490294

Link-Governor

$

$

Currently unavailable

187

Toro 570438A

Spacer

$

$

Currently unavailable

203A

Toro 570646

Spring-Governor

$

$

Currently unavailable

216

Toro 570645

Lever-Adjusting, Rpm

$

$

Currently unavailable

239

Toro 35815

2060A77 WIZARD ROTA

$3.23

$

Usually ships in 3-6 days

0

257

Toro 650911

Screw (T-30, 1/4-20 x 5/8)

$

$

Currently unavailable

258

Toro 350422

Base Ass-y-Blower Housing (Incl Ref. #20)

$

$

Currently unavailable

260

Toro 350423

Housing-Blower

$

$

Currently unavailable

261

Toro 650737

Screw (1/4-20 x 1/2)

$

$

Currently unavailable

270

Toro 390263B

Muffler Assembly (Incl. Ref. #53-57)

$

$

Currently unavailable

274

Toro 510346

Gasket-Exhaust

$

$

Currently unavailable

277

Toro 650911

Screw (T-30, 1/4-20 x 5/8)

$

$

Currently unavailable

284

Toro 390267

Cover Muffler

$

$

Currently unavailable

284A

Toro 650578

Screw

$

$

Currently unavailable

285

Toro 590551

Cup-Starter

$

$

Currently unavailable

287

Rivet-Pop

$

$

Not available

325

Toro 29443

Clip-Wire

$

$

Currently unavailable

330A

Toro 611153

Harness-Wire

$

$

Currently unavailable

373

Toro 390292

Base-Muffler

$

$

Currently unavailable

374

Toro 390272

Baffle-Muffler

$

$

Currently unavailable

380

Toro 632552

Carburetor (Incl. Ref. #184A)

$

$

Currently unavailable

383

Toro 570434

Baffle-Carburetor

$

$

Currently unavailable

384

Toro 650229

Screw

$

$

Currently unavailable

391

Toro 590537

Starter-Rewind

$

$

Currently unavailable

400

Toro 510324B

Gasket Set

$

$

Currently unavailable
