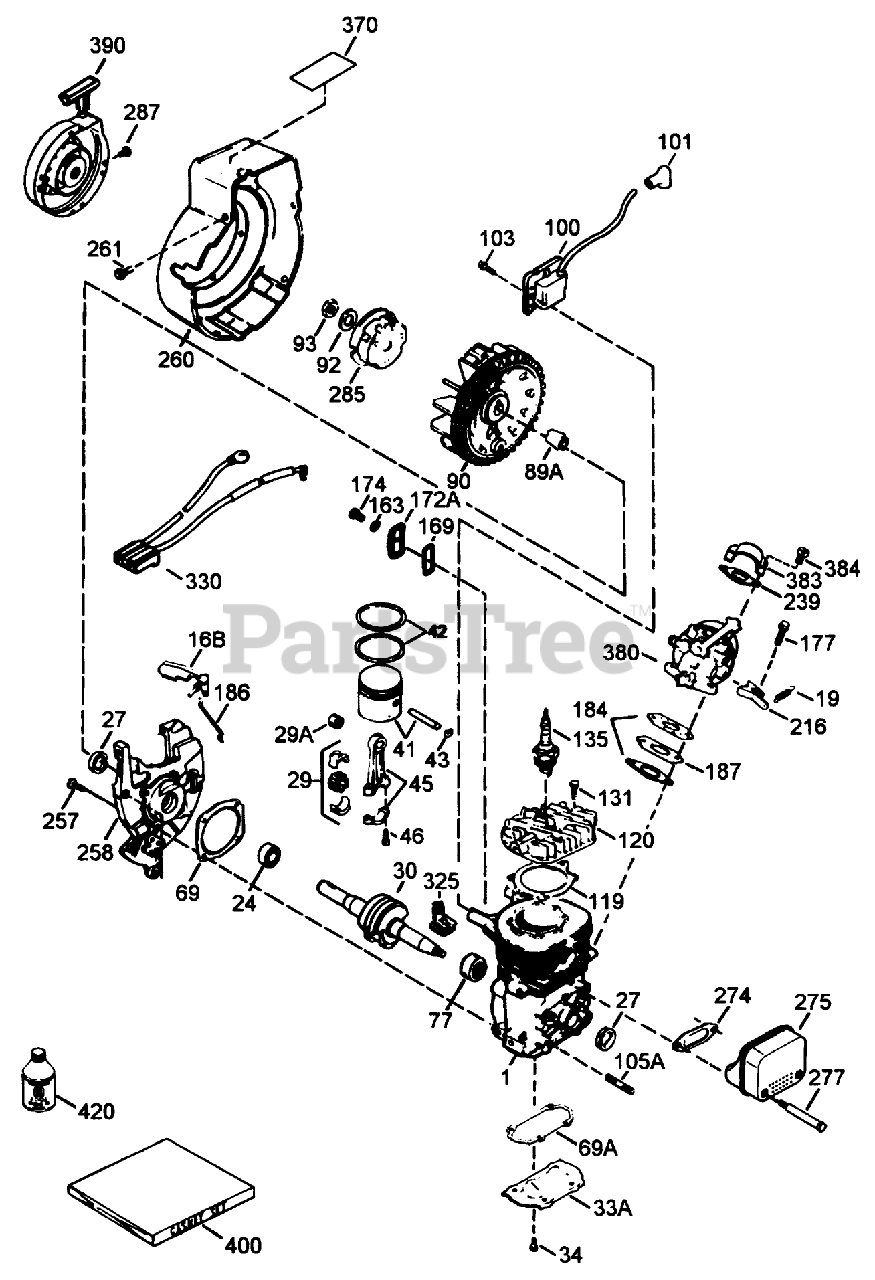

38195 (CCR 1000) - Toro Snow Thrower (SN: 049000001 - 049999999) (1994) Engine Tecumseh Model No. Hsk600-1681s (model No. 38196) Parts Diagram

Snow Thrower

Engine Tecumseh Model No. Hsk600-1681s (model No. 38196) Parts Diagram

  • Title

1

Cylinder (Order Short Block if Replacement is Needed)

$

$

Not available

16B

Toro 490291A

Vane-Air

$

$

Currently unavailable

19

Toro 570707

Spring-Extention

$

$

Currently unavailable

24

Toro 530110

Bearing-Ball

$

$

Currently unavailable

27

Toro 510319

Seal-Oil

$

$

Currently unavailable

29

Toro 530150

Needle Bearing and Liner Set (37 Needles)

$

$

Currently unavailable

29A

Toro 530104A

Bearing-Cartridge

$

$

Currently unavailable

30

Toro 290602

Crankshaft

$

$

Currently unavailable

33A

Toro 570644

Plate-Cover

$

$

Currently unavailable

34

Toro 650579

Screw (T-25, 10-24 x 1/2)

$

$

Currently unavailable

41

Toro 310283A

Piston (Incl. Ref. #43)

$

$

Currently unavailable

42

Toro 310190

Ring Set

$

$

Currently unavailable

43

Toro 310167

Ring-Retaning

$

$

Currently unavailable

45

Toro 310235B

Rod Assy.-Connecting (Incl. Ref. #3, 3A 3B)

$

$

Currently unavailable

46

Toro 650633

Bolt-Rod, Connecting

$

$

Currently unavailable

69

Toro 510292A

Gasket-Cover, Cylinder

Note: Included in Gasket Set No. 510324.

$

$

Currently unavailable

69A

Toro 510323A

Gasket-Plate, Cover

Note: Included in Gasket Set No. 510324.

$

$

Currently unavailable

77

Toro 53-105

Cartridge Bearing

$

$

Currently unavailable

89

Toro 611032

Blade (20 inch)

$

$

Currently unavailable

90

Toro 611066

CARB BODY S

$

$

Not available

92

Toro 650815

Washer-Belleville

$

$

Currently unavailable

93

Toro 650390

Nut-Flywheel

$

$

Currently unavailable

100

Toro 34443A

Solid State

$

$

Currently unavailable

101

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

103

Toro 650814

Screw

$

$

Currently unavailable

105A

Toro 650796

Stud

$

$

Currently unavailable

119

Toro 510274A

Gasket-Head, Cylinder

Note: Included in Gasket Set No. 510324.

$

$

Currently unavailable

120

Toro 250240B

Head-Cylinder

$

$

Currently unavailable

131

Toro 650477

Screw (T-30, 1/4-20 x 3/4)

$

$

Currently unavailable

135

Toro 611049

Spark Plug-Resistor (R C J 8Y)

$

$

Currently unavailable

163

Toro 650838

Washer

$

$

Currently unavailable

169

Toro 510325A

Cover-Compression, Release

Note: Included in Gasket Set No. 510324.

$

$

Currently unavailable

172A

Toro 570708

Cover-Release, Compression

$

$

Currently unavailable

174

Toro 650579

Screw (T-25, 10-24 x 1/2)

$

$

Currently unavailable

177

Toro 650959

Screw (5/32 Allen, 1/4-20 x 1)

$

$

Currently unavailable

184

Toro 510326A

Gasket-Carburetor

Note: Included in Gasket Set No. 510324.

$

$

Currently unavailable

186

Toro 490322

Governor-Link

$

$

Currently unavailable

187

Toro 570428A

Spacer

$

$

Currently unavailable

216

Toro 570645

Lever-Adjusting, Rpm

$

$

Currently unavailable

239

Toro 35815

2060A77 WIZARD ROTA

$3.23

$

Usually ships in 3-6 days

0

257

Toro 650911

Screw (T-30, 1/4-20 x 5/8)

$

$

Currently unavailable

258

Toro 350422

Base Ass-y-Blower Housing (Incl Ref. #20)

$

$

Currently unavailable

260

Toro 350437

Housing-Blower

$

$

Currently unavailable

261

Toro 650737

Screw (1/4-20 x 1/2)

$

$

Currently unavailable

274

Toro 510346A

Exhaust Gasket

Note: Included in Gasket Set No. 510324.

$

$

Currently unavailable

275

Toro 390330

Muffler (Incl. Ref. #274 277)

$

$

Currently unavailable

277

Toro 650869

Screw (1/4-20 x 2-3/4)

$

$

Currently unavailable

285

Toro 590551

Cup-Starter

$

$

Currently unavailable

287

Toro 650926

Screw (8-32 x 21/64)

$

$

Currently unavailable

325

Toro 29443

Clip-Wire

$

$

Currently unavailable

330

Toro 611153

Harness-Wire

$

$

Currently unavailable

370

Toro 35977

Decal-Warning

$

$

Currently unavailable

380

Toro 632641

Carburetor (Incl. Ref. #184A)

$

$

Currently unavailable

383

Toro 570434

Baffle-Carburetor

$

$

Currently unavailable

384

Toro 650229

Screw

$

$

Currently unavailable

390

Toro 590652

Rewind Starter

$

$

Currently unavailable

400

Toro 510324

Gasket Set

$

$

Currently unavailable

420

Toro 730227A

2-Cycle Oil (8oz)

$

$

Currently unavailable
