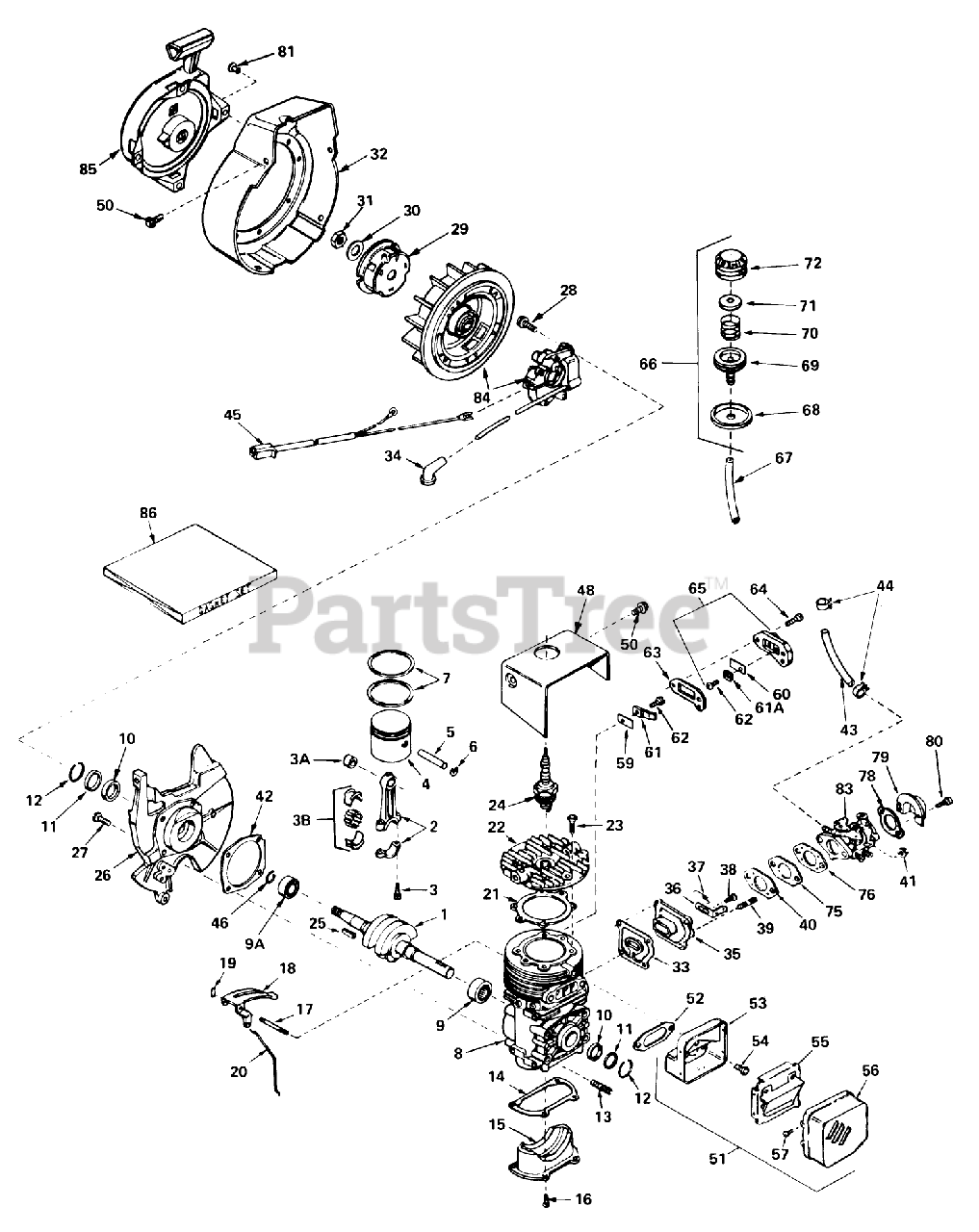

38210 (S-140) - Toro Snow Thrower (SN: 009000001 - 009999999) (1979) Engine Tecumseh Model No. Ah520 Type 1584 Parts Diagram

Snow Thrower

Engine Tecumseh Model No. Ah520 Type 1584 Parts Diagram

  • Title

1

Toro 290489

Crankshaft

$

$

Currently unavailable

2

Toro 310244

Rod Assembly, Connecting (Incl. #3, 3A 3B)

$

$

Currently unavailable

3

Toro 650633

Bolt-Rod, Connecting

$

$

Currently unavailable

3A

Toro 530104A

Bearing-Cartridge

$

$

Currently unavailable

3B

Toro 530148

Bearing Liner Set, Needle

$

$

Currently unavailable

4

Toro 310230

Piston

$

$

Currently unavailable

5

Toro 310178

Pin, Piston

$

$

Currently unavailable

6

Toro 310167

Ring-Retaning

$

$

Currently unavailable

7

Toro 310190

Ring Set

$

$

Currently unavailable

8

Toro 250271

DISCONTINUED

$

$

Not available

9

Toro 530105

Bearing-Cartridge

$

$

Currently unavailable

9A

Toro 530110

Bearing-Ball

$

$

Currently unavailable

10

Toro 510105

Seal, Crankshaft
(Superseded to 510195)

$

$

Not available

11

Toro 510106

Retainer, Crankshaft Seal

$

$

Currently unavailable

12

Toro 510109A

Spring, Crankshaft Seal Retainer

$

$

Currently unavailable

13

Toro 650796

Stud

$

$

Currently unavailable

14

Toro 510270

Gasket, Cover

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

$

$

Currently unavailable

15

Toro 570370

Plate, Cover

$

$

Currently unavailable

16

Toro 650579

Screw (T-25, 10-24 x 1/2)

$

$

Currently unavailable

17

Toro 490276

Shaft, Air Vane

$

$

Currently unavailable

18

Toro 490287

Vane Assy., Air

$

$

Currently unavailable

19

Toro 490278

Clip,Air Vane

$

$

Currently unavailable

20

Toro 490289

Link, Governor

$

$

Currently unavailable

21

Toro 510274

Gasket, Head

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

$

$

Currently unavailable

22

Toro 250240

DISCONTINUED

$

$

Not available

23

Toro 650477

Screw (T-30, 1/4-20 x 3/4)

$

$

Currently unavailable

24

Toro 611005

Head Adjustment Knob

$

$

Not available

25

Toro 650496

Key, Flywheel

$

$

Currently unavailable

26

Toro 350388

Base Assy., Housing (Incl. Nos. 29, 30 31)

$

$

Currently unavailable

27

Toro 650497

Screw

$

$

Currently unavailable

28

Toro 650747

Screw, Hex Washer Hd.

$

$

Currently unavailable

29

Toro 590416

Starter Cup

$

$

Currently unavailable

30

Toro 650763

Washer-Spring

$

$

Currently unavailable

31

Toro 650390

Nut-Flywheel

$

$

Currently unavailable

32

Toro 350391

Housing, Blower

$

$

Currently unavailable

33

Toro 510312

Gasket, Port

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

$

$

Currently unavailable

34

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

35

Toro 570471

Adapter, Cover

$

$

Currently unavailable

36

Toro 570633

Lever, Adjusting

$

$

Currently unavailable

37

Toro 570417

Spring, Governor

$

$

Currently unavailable

38

Toro 650576

Screw

$

$

Currently unavailable

39

Toro 650527

Stud

$

$

Currently unavailable

40

Toro 510229

Gasket, Carburetor 1/8" thick)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

$

$

Currently unavailable

41

Toro 650457

Locknut

$

$

Currently unavailable

42

Toro 510292

Gasket, Shroud Base

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

$

$

Currently unavailable

43

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

44

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

45

Toro 610999

Harness, Wire

$

$

Not available

46

Toro 570630

Ring, Retaining

$

$

Currently unavailable

48

Toro 350389

Shroud, Cylinder

$

$

Currently unavailable

50

Toro 650356

Screw-Hex, Hd.

$

$

Currently unavailable

51

Toro 390294

Muffler Assembly (Incl. #53-57)

$

$

Currently unavailable

52

Toro 510230

Gasket-Muffler

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

$

$

Currently unavailable

53

Toro 390292

Base-Muffler

$

$

Currently unavailable

54

Toro 650497

Screw

$

$

Currently unavailable

55

Toro 390295

Baffle, Muffler

$

$

Currently unavailable

56

Toro 390296

Cover, Muffler

$

$

Currently unavailable

57

Toro 650578

Screw

$

$

Currently unavailable

59

Toro 470136

Reed, Compression Release

$

$

Currently unavailable

60

Toro 470135

Reed, Compression Release

$

$

Currently unavailable

61

Toro 470151

Plate, Reed Hold Down

$

$

Currently unavailable

61A

Toro A470137

Plate, Reed hold down

$

$

Currently unavailable

62

Toro 650654

Screw

$

$

Currently unavailable

63

Toro 510263

Gasket, Compression Release

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

$

$

Currently unavailable

64

Toro 650576

Screw

$

$

Currently unavailable

65

Toro 570437A

Cover Assy., Compression release (Incl. Nos. 60, 61A 62)

$

$

Currently unavailable

66

Toro 570629

Primer Assy. (Incl. Nos. 67 thru 72)

$

$

Currently unavailable

67

Toro 32180A

Line, Primer

$

$

Currently unavailable

68

Toro 32312

Retainer, Primer Bulb

$

$

Currently unavailable

69

Toro 32184

Body, Primer

$

$

Currently unavailable

70

Toro 570443

Spring, Primer Bulb

$

$

Currently unavailable

71

Toro 570444

Washer, Primer Bulb

$

$

Currently unavailable

72

Toro 570442

Bulb, Primer

$

$

Currently unavailable

75

Toro 570438A

Spacer

$

$

Currently unavailable

76

Toro 510241

Gasket, Carburetor (1/16"thick)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

$

$

Currently unavailable

78

Toro 510206

Gasket

$

$

Currently unavailable

79

Toro 570434

Baffle-Carburetor

$

$

Currently unavailable

80

Toro 650229

Screw

$

$

Currently unavailable

81

Rivet, Pop (3/16" dia.)(Can be purchased locally)

$

$

Not available

83

Toro 632035

Carburetor (Incl. No. 76)

$

$

Currently unavailable

84

Toro 610794A

Magneto

$

$

Currently unavailable

85

Toro 590537

Starter-Rewind

$

$

Currently unavailable

86

Toro 510264D

Gasket Set (Incl. items marked *)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

$

$

Currently unavailable
