38211 - Gravely 38" Grass Bagger for 1100 & 1200 Series Tractor GRASS CATCHER 38" Parts Diagram

38" Grass Bagger for 1100 & 1200 Series Tractor

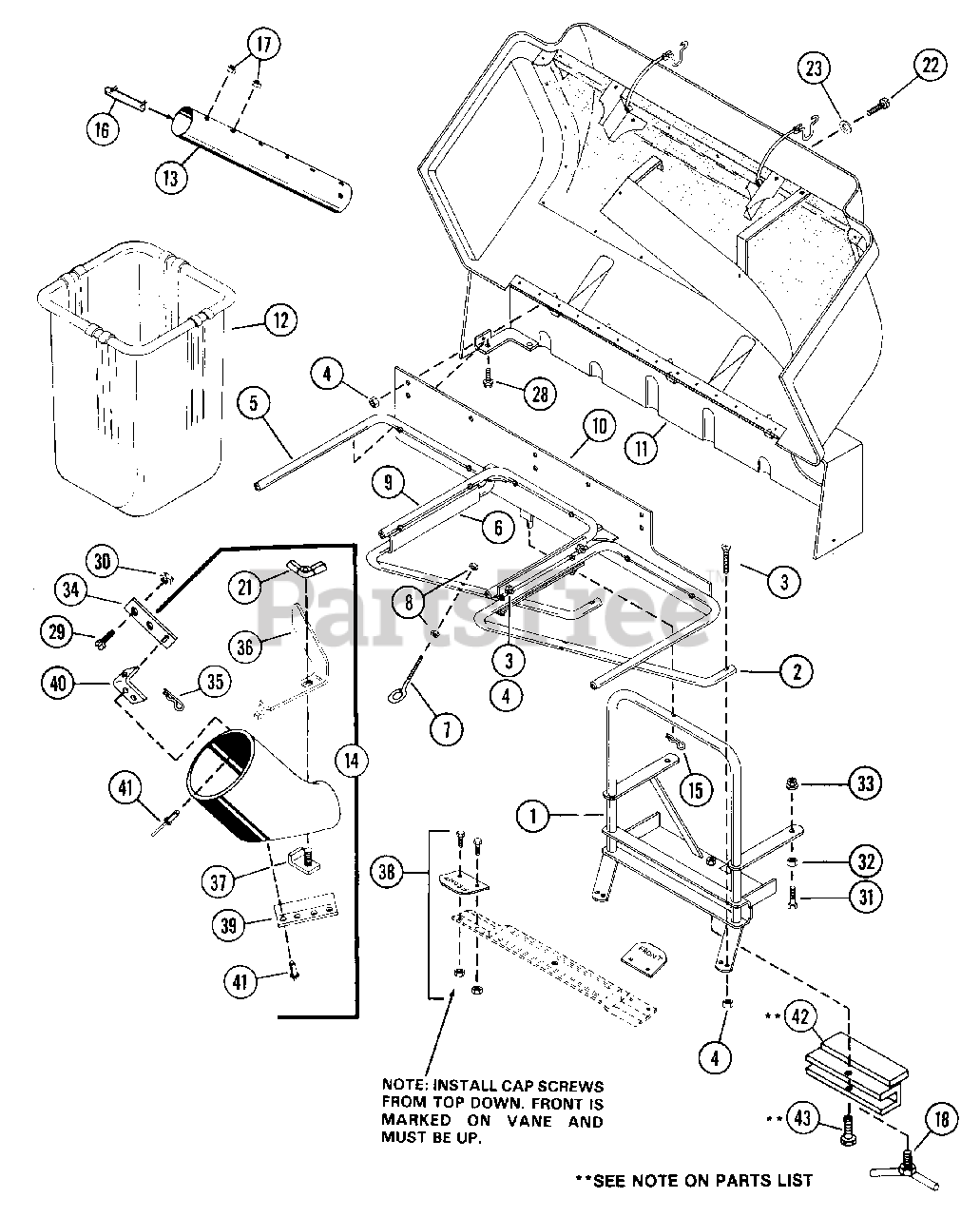

GRASS CATCHER 38" Parts Diagram

  • Title

1

Gravely 038320

ATTACHMENT FRAME

$

$

Not available

2

Gravely 038321

RIGHT TUBE
(Superseded to 03324800)

$

$

Not available

3

Gravely 035809

SCR-MCH .31-18 X 1.50 YWZC
(Superseded to 06119100)

$

$

Not available

4

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

5

Gravely 038322

LEFT TUBE
(Superseded to 03324900)

$

$

Not available

6

Gravely 038323

TUBE BRACKET
(Superseded to 02724700)

$

$

Not available

7

Gravely 038324

EYEBOLT
(Superseded to 02440100)

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 424215

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 038325

CENTER TUBE
(Superseded to 02724651)

$

$

Not available

10

Gravely 038326

MOUNTING BRACKET
(Superseded to 03551400)

$

$

Not available

11

Gravely 038327

G-COVER ASSEMBLY
(Superseded to 63511300)

$

$

Not available

12

Gravely 038328

GRASS BAGGER BASKET
(Superseded to 02724400)

$81.99

$

In Stock, only 4 left!

0

13

Gravely 038329

TUBE BLANK
(Superseded to 03558600)

$185.99

$

Usually ships in 4-12 days

0

14

Gravely 038330

G-BOOT ASSEMBLY - 38"

$

$

Not available

Gravely 038331

G-BOOT - 38"
(Superseded to 03552400)

$

$

Not available

15

Gravely 036075

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 2 left!

0

16

Gravely 035825

CLIP
(Superseded to 02533300)

$

$

Not available

17

Gravely 038345

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, only 3 left!

0

18

Gravely 035835

T-HANDLE BOLT
(Superseded to 03525900)

$

$

Not available

21

Gravely 148313

NUT-WING .312-18 YWZC
(Superseded to 06503800)

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 038334

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 038335

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

28

Gravely 180073

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.99

$

In Stock, only 2 left!

0

29

Gravely 159908

SCREW, MACHINE 10-24X.375 P/HD

$

$

Not available

30

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 180124

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

34

Gravely 038336

BOOT STRAP
(Superseded to 53506100)

$

$

Not available

35

Gravely 036566

PIN-HAIR INT .09X.188 PL
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

36

Gravely 038337

BOOT STRAP
(Superseded to 03536400)

$

$

Not available

37

Gravely 035838

CLIP CONE
(Superseded to 02532300)

$

$

Not available

38

Gravely 035832

SERVICE VANE PACKAGE
(Superseded to 53504600)

$54.99

$

Usually ships in 4-12 days

0

Gravely 036779

VANES

$

$

Not available

Gravely 181595

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

Gravely 035834

NUT-LK TOP .312-24 PL GR C
(Superseded to 06514500)

$

$

Not available

39

Gravely 035836

EXTENSION CHUTE
(Superseded to 02532200)

$

$

Not available

40

Gravely 036783

RETAINER
(Superseded to 02539600)

$

$

Not available

41

Gravely 036782

RVT-TBLR .187X.375 OH ST PL
(Superseded to 06806200)

$

$

Not available

42

Gravely 038338

ADAPTOR
(Superseded to 03532900)

$

$

Not available

43

Gravely 180183

BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.99

$

In Stock, only 2 left!

0
