38225 (S-200) - Toro Snow Thrower (SN: 000000001 - 000299999) (1980) Starter Motor Switch Assembly (model 38235) Parts Diagram

Snow Thrower

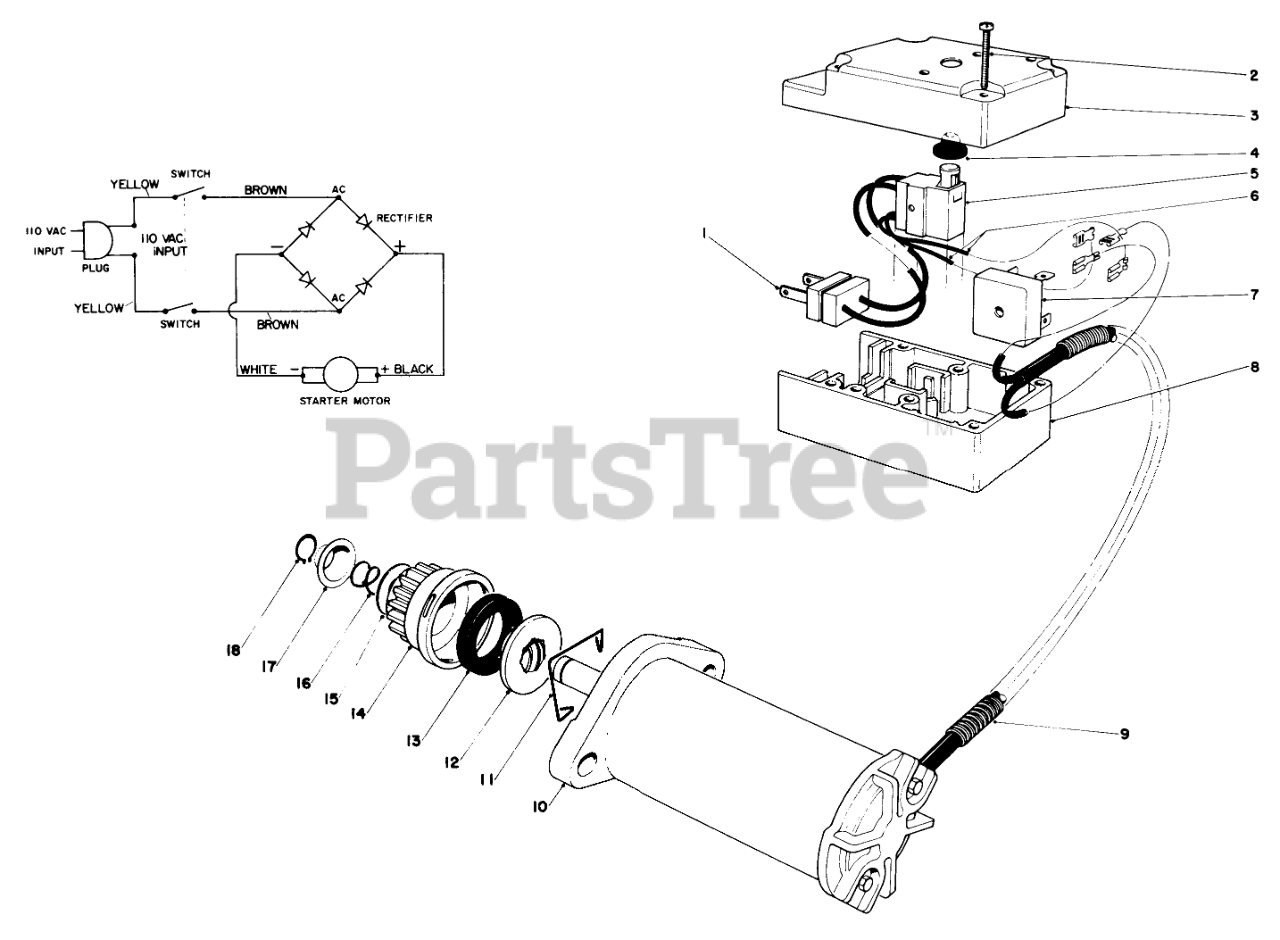

Starter Motor Switch Assembly (model 38235) Parts Diagram

  • Title

1

Toro 36-8370

See Supercession: 94-9933
(Superseded to 94-9933)

$6.99

$

In Stock, only 2 left!

0

2

Toro 32144-27

SCREW-PLASTITE

$6.49

$

In Stock, only 3 left!

0

3

Toro 28-9960

DISCONTINUED

$

$

Not available

4

Toro 36-8350

BOOT-SWITCH

$8.99

$

In Stock, Qty 6

0

5

Toro 36-8340

SWITCH-STARTER

$25.99

$

In Stock, Qty 5

0

6

Toro 36-8360

DISCONTINUED

$

$

Not available

7

Toro 37-7600

RECTIFIER-BRIDGE

$25.99

$

In Stock, only 2 left!

0

8

Toro 36-8330

DISCONTINUED

$

$

Not available

9

Toro 33-5130

DISCONTINUED

$

$

Not available

10

Starter Motor

$

$

Not available

11

Toro 5-6530

RETAINING CLIP

$7.49

$

In Stock, only 1 left!

0

12

Helix Pinion Nut

$

$

Not available

13

Toro 25-3400

RUBBER RING

$

$

Not available

14

Pinion

$

$

Not available

15

Toro 33-5570

WASHER

$

$

Not available

16

Toro 33-3230

SPRING-COMPRESSION

$6.99

$

In Stock, Qty 10

0

17

Toro 33-3210

PINION STOP

$18.99

$

In Stock, Qty 7

0

18

Toro 32151-49

RING-RETAINING, EXTERNAL

$3.99

$

In Stock, Qty 11

0

Toro 28-9140

SEE SB SNOW #48

Note: Not illustrated

$

$

Not available

Toro 36-5350

STARTER PINION ASM

Note: Not illustrated

$

$

Not available

Toro 28-9170

See Supercession: 106-4741
(Superseded to 106-4741)

Note: Not illustrated

$

$

Not available
