38232 (S-200) - Toro Snow Thrower (SN: 005000001 - 005999999) (1985) Engine Assembly (engine Tecumseh Model No. Ah520 Type 1602) Parts Diagram

Snow Thrower

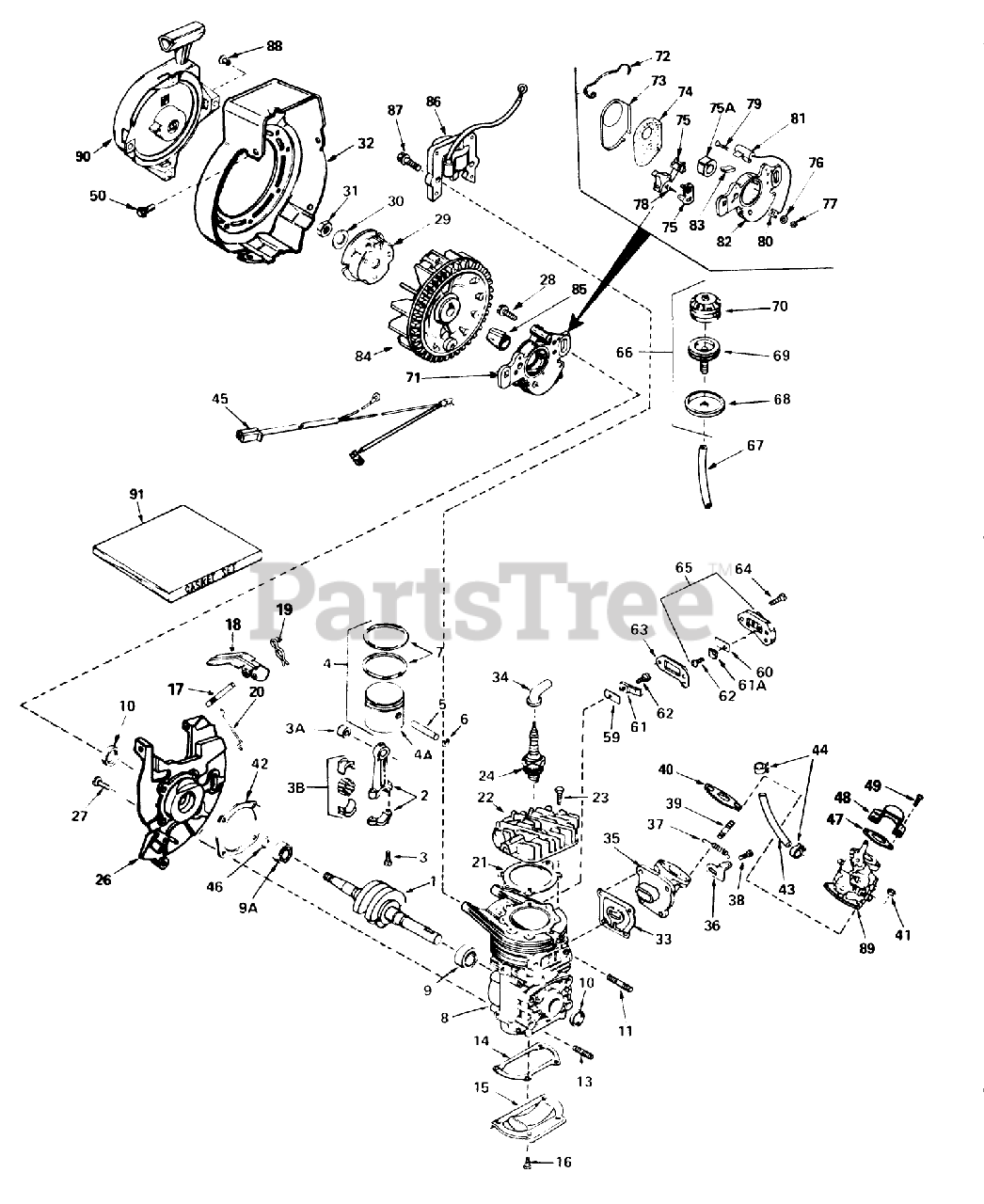

Engine Assembly (engine Tecumseh Model No. Ah520 Type 1602) Parts Diagram

  • Title

1

Toro 290497

Crankshaft

$

$

Currently unavailable

2

Toro 310244

Rod Assembly, Connecting (Incl. #3, 3A 3B)

$

$

Currently unavailable

3

Toro 650633

Bolt-Rod, Connecting

$

$

Currently unavailable

3A

Toro 530104A

Bearing-Cartridge

$

$

Currently unavailable

3B

Toro 530149

Bearing Liner Set Needle

$

$

Currently unavailable

4

Toro 310259

Piston, Pin Ring Assy. (Incl. Ref. #6 thru 9)

$

$

Currently unavailable

4A

Toro 310230B

Piston

$

$

Currently unavailable

5

Toro 310178

Pin, Piston

$

$

Currently unavailable

6

Toro 310167

Ring-Retaning

$

$

Currently unavailable

7

Toro 310190

Ring Set

$

$

Currently unavailable

8

Block Assy., Cylinder (Order short block if replacement is required)

$

$

Not available

9

Toro 530105

Bearing-Cartridge

$

$

Currently unavailable

9A

Toro 530110

Bearing-Ball

$

$

Currently unavailable

10

Toro 510319

Seal-Oil

$

$

Currently unavailable

11

Toro 650801

Stud

$

$

Currently unavailable

13

Toro 650796

Stud

$

$

Currently unavailable

14

Toro 510270

Gasket, Cover

Note: Included in Gasket Set.

$

$

Currently unavailable

15

Toro 570370A

Plate, Cover

$

$

Currently unavailable

16

Toro 650579

Screw (T-25, 10-24 x 1/2)

$

$

Currently unavailable

17

Toro 490295

Shaft, Air Vane

$

$

Currently unavailable

18

Toro 490296

Vane Assy., Air

$

$

Currently unavailable

19

Toro 490278

Clip,Air Vane

$

$

Currently unavailable

20

Toro 490294

Link-Governor

$

$

Currently unavailable

21

Toro 510274

Gasket, Head

Note: Included in Gasket Set.

$

$

Currently unavailable

22

Toro 250240A

Head-Cylinder

$

$

Currently unavailable

23

Toro 650477

Screw (T-30, 1/4-20 x 3/4)

$

$

Currently unavailable

24

Toro 611005

Head Adjustment Knob

$

$

Not available

26

Toro 350402

Base Assy., Blower Housing (Incl. Ref. #10 17)

$

$

Currently unavailable

27

Toro 650497

Screw

$

$

Currently unavailable

28

Toro 650747

Screw, Hex Washer Hd.

$

$

Currently unavailable

29

Toro 590551

Cup-Starter

$

$

Currently unavailable

30

Toro 650763

Washer-Spring

$

$

Currently unavailable

31

Toro 650390

Nut-Flywheel

$

$

Currently unavailable

32

Toro 350397

Housing-Blower

$

$

Currently unavailable

33

Toro 510312

Gasket, Port

Note: Included in Gasket Set.

$

$

Currently unavailable

34

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

35

Toro 570627

Elbow Assy., Adapter

$

$

Currently unavailable

36

Toro 570626

Lever, Adjusting

$

$

Currently unavailable

37

Toro 490293

Spring, Adjusting Lever

$

$

Currently unavailable

38

Toro 650576

Screw

$

$

Currently unavailable

39

Toro 650700

Stud Carburetor

$

$

Currently unavailable

40

Toro 510213

Gasket, Carburetor

Note: Included in Gasket Set.

$

$

Currently unavailable

41

Toro 650457

Locknut

$

$

Currently unavailable

42

Toro 510292

Gasket, Shroud Base

Note: Included in Gasket Set.

$

$

Currently unavailable

43

Toro 30705

Line-Fuel

$

$

Currently unavailable

44

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

45

Toro 611022

Harness, Wire

$

$

Currently unavailable

46

Toro 570630

Ring, Retaining

$

$

Currently unavailable

47

Toro 510206

Gasket

$

$

Currently unavailable

48

Toro 570434

Baffle-Carburetor

$

$

Currently unavailable

49

Toro 650229

Screw

$

$

Currently unavailable

50

Toro 650356

Screw-Hex, Hd.

$

$

Currently unavailable

59

Toro 470136

Reed, Compression Release

$

$

Currently unavailable

60

Toro 470135

Reed, Compression Release

$

$

Currently unavailable

61

Toro 470151

Plate, Reed Hold Down

$

$

Currently unavailable

61A

Toro 470137

Plate, Reed Hold Down

$

$

Currently unavailable

62

Toro 650654

Screw

$

$

Currently unavailable

63

Toro 510263

Gasket, Compression Release

Note: Included in Gasket Set.

$

$

Currently unavailable

64

Toro 650576

Screw

$

$

Currently unavailable

65

Toro 570437A

Cover Assy., Compression release (Incl. Nos. 60, 61A 62)

$

$

Currently unavailable

66

Toro 570629A

Primer Assy.

$

$

Currently unavailable

67

Toro 32180B

Line, Primer

$

$

Currently unavailable

68

Toro 32312

Retainer, Primer Bulb

$

$

Currently unavailable

69

Toro 32184

Body, Primer

$

$

Currently unavailable

70

Toro 570442A

Bulb-Primer

$

$

Currently unavailable

71

Toro 611006

Stator Plate Assy. (incl. Nos. 107, 111 thru 118 120)

$

$

Currently unavailable

72

Toro 30551

Spring Breaker Box

$

$

Currently unavailable

73

Toro 610947

Cover-Dust

$

$

Currently unavailable

74

Toro 30883

Gasket Dust

$

$

Currently unavailable

75

Toro 30547B

Breaker Assy.

$

$

Currently unavailable

75A

Toro 30552

Cam, Breaker

$

$

Currently unavailable

76

Toro 610385

Washer

$

$

Currently unavailable

77

Toro 610408

DECAL

$

$

Not available

78

Toro 29181

Breaker Screw

$

$

Currently unavailable

79

Toro 610593

Condenser Screw

$

$

Currently unavailable

80

Toro 33356

Terminal, Ground

$

$

Currently unavailable

81

Toro 30548B

Condenser

$

$

Currently unavailable

82

Toro 611008

Stator Plate

$

$

Currently unavailable

83

Toro 30549

Felt,Cam Wiper

$

$

Currently unavailable

84

Toro 611007

FIywheel

$

$

Currently unavailable

85

Toro 611014

SHIELD

$

$

Not available

86

Toro 34431

Lamination Coil Assy. (Incl. No. 42)

$

$

Currently unavailable

87

Toro 650814

Screw

$

$

Currently unavailable

88

Rivet, Pop (3/16" dia.)(Can be purchased locally)

$

$

Not available

89

Toro 632142

Carburetor (Incl. Ref. #40)

$

$

Currently unavailable

90

Toro 590537

Starter-Rewind

$

$

Currently unavailable

91

Toro 510264D

Gasket Set (Incl. items marked *)

$

$

Currently unavailable
