38283 - Toro 18" CCR Powerlite Snow Thrower (SN: 312000001 - 312999999) (2012) ELECTRIC START ENGINE COMPONENT ASSEMBLY NO. 119-1995 Parts Diagram

18" CCR Powerlite Snow Thrower

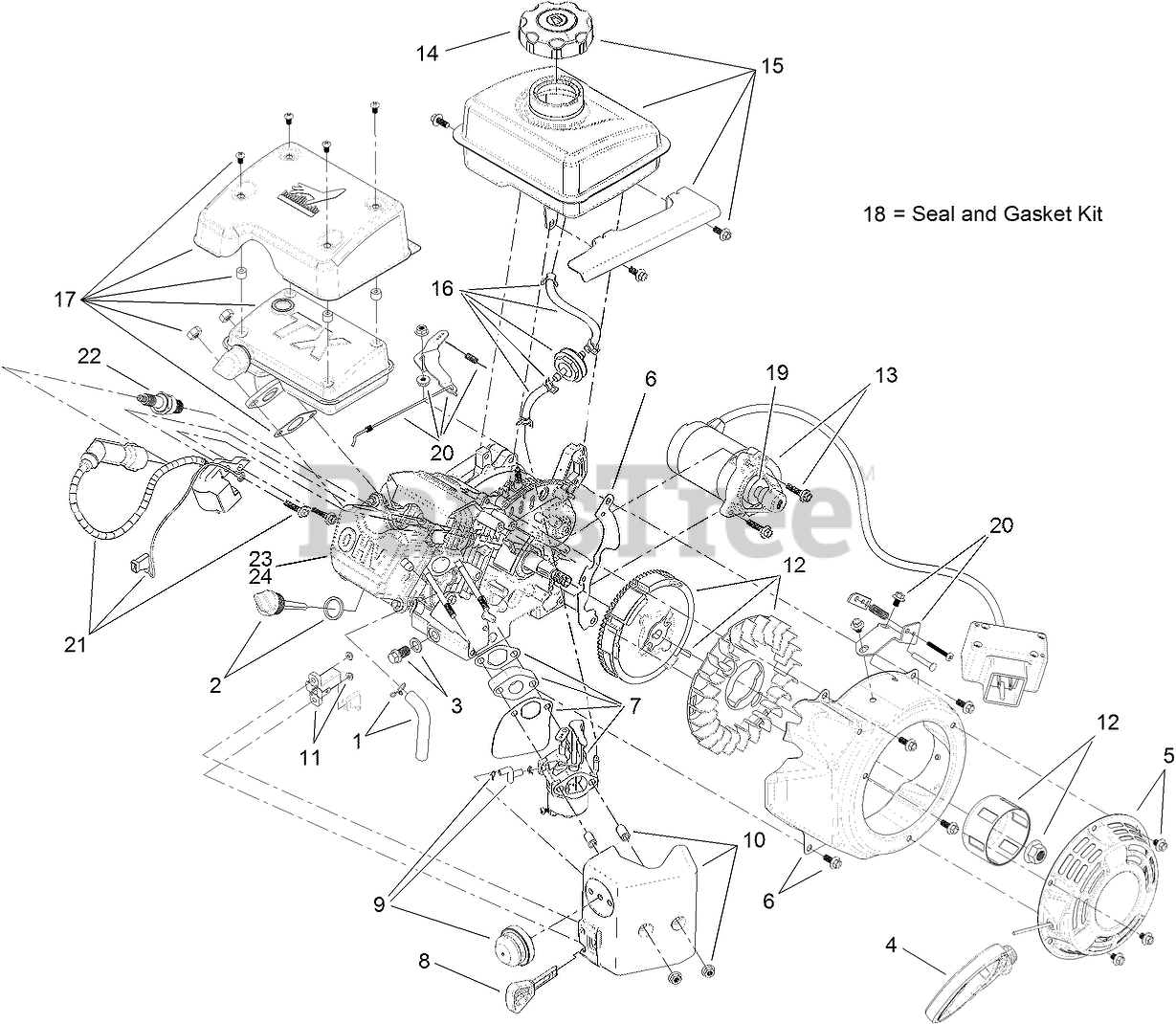

ELECTRIC START ENGINE COMPONENT ASSEMBLY NO. 119-1995 Parts Diagram

  • Title

1

Toro 119-1921

BREATHER TUBE KIT
(Superseded to 139-0630)

$3.49

$

In Stock, only 1 left!

0

2

Toro 119-1922

DIPSTICK AND O-RING KIT

$10.99

$

In Stock, only 1 left!

0

3

Toro 119-1923

DRAIN PLUG KIT

$7.99

$

Usually ships in 3-6 days

0

4

Toro 119-1924

MITTEN GRIP KIT

$13.99

$

Usually ships in 3-6 days

0

5

Toro 119-1925

RECOIL ASM KIT

$95.99

$

In Stock, only 2 left!

0

6

Toro 119-1926

BLOWER SHROUD KIT

$57.99

$

Usually ships in 3-6 days

0

7

Toro 119-1980

COMPLETE CARB SERVICE KIT

$84.99

$

In Stock, only 1 left!

0

7

Toro 119-1988

CARB FLOAT AND NEEDLE KIT

Note: Not illustrated

$23.99

$

Usually ships in 3-6 days

0

8

Toro 119-1929

KEY AND LANYARD KIT

$11.99

$

Usually ships in 3-6 days

0

9

Toro 119-1981

PRIMER BULB KIT

$35.99

$

In Stock, only 2 left!

0

10

Toro 119-1982

HEATER BOX KIT

$46.99

$

Usually ships in 3-6 days

0

11

Toro 119-1932

SWITCH KIT

$15.99

$

Usually ships in 3-6 days

0

12

Toro 119-1933

FLYWHEEL KIT

$150.99

$

Usually ships in 3-6 days

0

13

Toro 120-4429

ELECTRIC STARTER KIT

$273.99

$

Usually ships in 3-6 days

0

14

Toro 120-4410

FUEL CAP ASM
(Superseded to 133-9823)

$19.99

$

In Stock, only 1 left!

0

15

Toro 119-1998

FUEL TANK AND CAP ASM
(Superseded to 127-9368)

$108.99

$

In Stock, only 2 left!

0

16

Toro 120-4401

FILTER, FUEL LINE AND CLAMP KIT
(Superseded to 121-0487)

$45.99

$

In Stock, only 1 left!

0

17

Toro 119-1938

MUFFLER KIT
(Superseded to 133-9822)

$82.99

$

Usually ships in 3-6 days

0

18

Toro 119-1939

GASKET, SEAL AND O-RING KIT

Note: Not illustrated

$82.99

$

Usually ships in 3-6 days

0

19

Toro 119-1940

PINION KIT

$79.99

$

Usually ships in 3-6 days

0

20

Toro 119-1987

GOVERNOR ARM, SPRING, LINK, HARDWARE KIT
(Superseded to 121-0489)

$28.99

$

Usually ships in 3-6 days

0

21

Toro 119-1960

IGNITION KIT
(Superseded to 136-7772)

$84.99

$

In Stock, only 1 left!

0

22

Toro 119-1961

SPARK PLUG
(Superseded to 121-4199)

$4.49

$

In Stock, Qty 20+

0

23

Toro 121-0110

GASKET-COVER, VALVE

$12.99

$

In Stock, only 2 left!

0

24

Toro 121-0466

VALVE COVER ASM

$21.99

$

Usually ships in 3-6 days

0
