383 (190-383-100) - Cub Cadet 3-Point Hitch Hitch Parts Diagram

3-Point Hitch

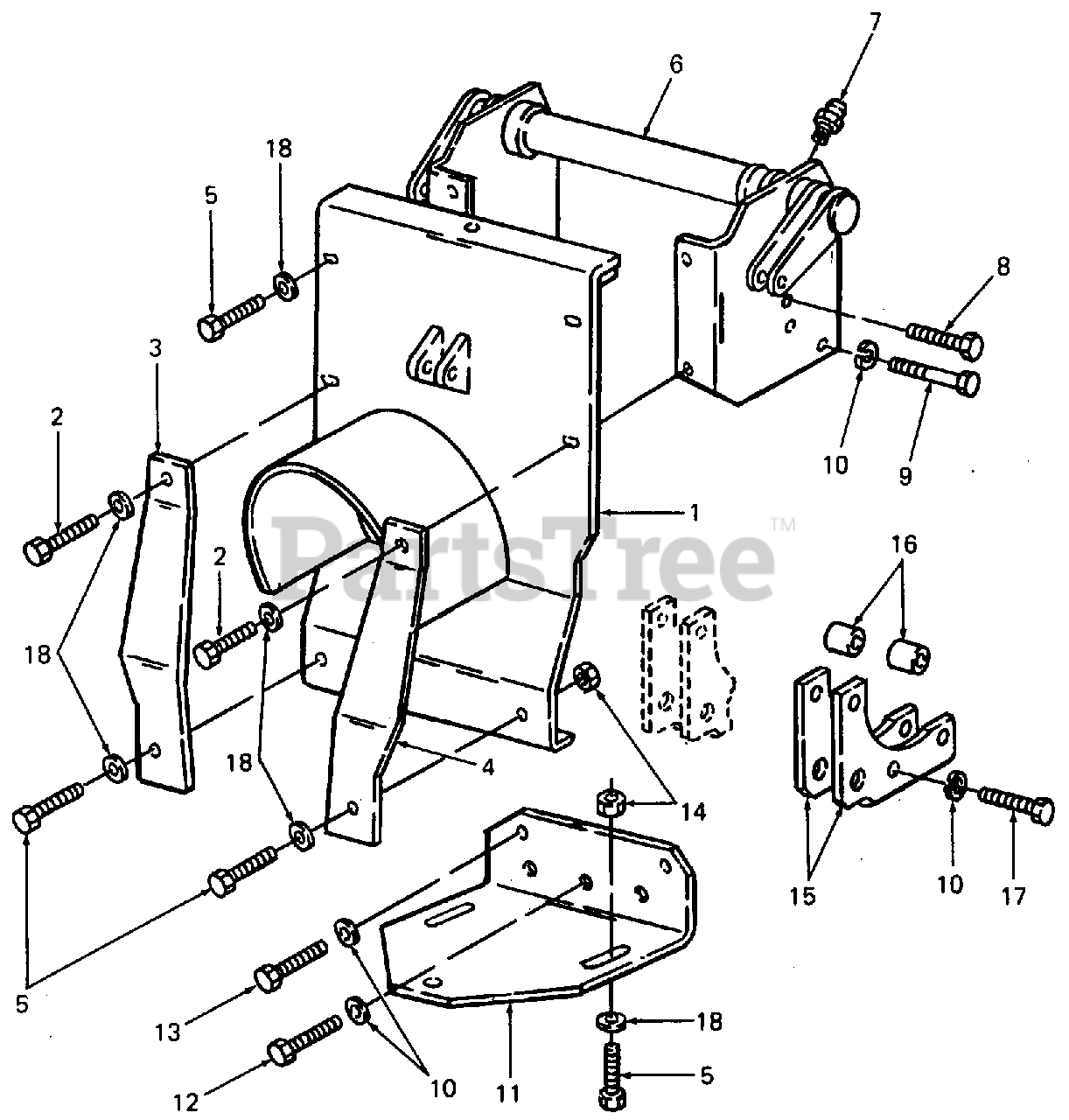

Hitch Parts Diagram

  • Title

1

Cub Cadet 703-0445

Plate Assy, Drawbar Support

$

$

Not available

Cub Cadet 710-3030

Screw, Hex Cap, 7/16-14 X .75 Lg GR5

$

$

Not available

Cub Cadet 712-0290

Nut, Hex Center Lock, 7/16-14

$4.49

$

In Stock, Qty 12

0

2

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 703-0438

Cam, Sway Limiter LH

$

$

Not available

4

Cub Cadet 703-0439

Cam, Sway Limiter RH

$

$

Not available

5

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.00 Lg GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 703-0420

Rockshaft Assy

$

$

Not available

7

Cub Cadet 737-3003

Fitting, Straight Dr Type Lub
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3063

Screw, Hex Cap, 3/8-16 X .75 Lg GR8
(Superseded to 710-3119)

$6.49

$

In Stock, Qty 7

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3121

Bolt, Hex Patch, 3/8-16 X 3.25 Lg GR8

$

$

Not available

10

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet 703-0869

Tow Plate

$

$

Not available

12

Cub Cadet 710-3118

Bolt, Hex Patch, 3/8-16 X 1.00 Lg GR5

$5.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3119

Bolt, Hex Patch, 3/8-16 X .75 Lg GR5

$6.49

$

In Stock, Qty 7

0

14

Cub Cadet 712-3000

Nut, Hex Center Lock

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 703-0437

Plate, Lower Link Support

$

$

Not available

16

Cub Cadet 711-3085

Spacer, Support

$

$

Not available

17

Cub Cadet 710-3127

Bolt, Hex Patch, 3/8-16 X 4.00 Lg GR5

$

$

Not available

18

Cub Cadet 736-3050

Washer, Flat, .406 ID X .810 OD X .051 Thk

$3.99

$

In Stock, Qty 20+

0
