38310 - Lawn-Boy Power Shovel Snow Thrower (SN: 001000001 - 001050100) (1981) HANDLE ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

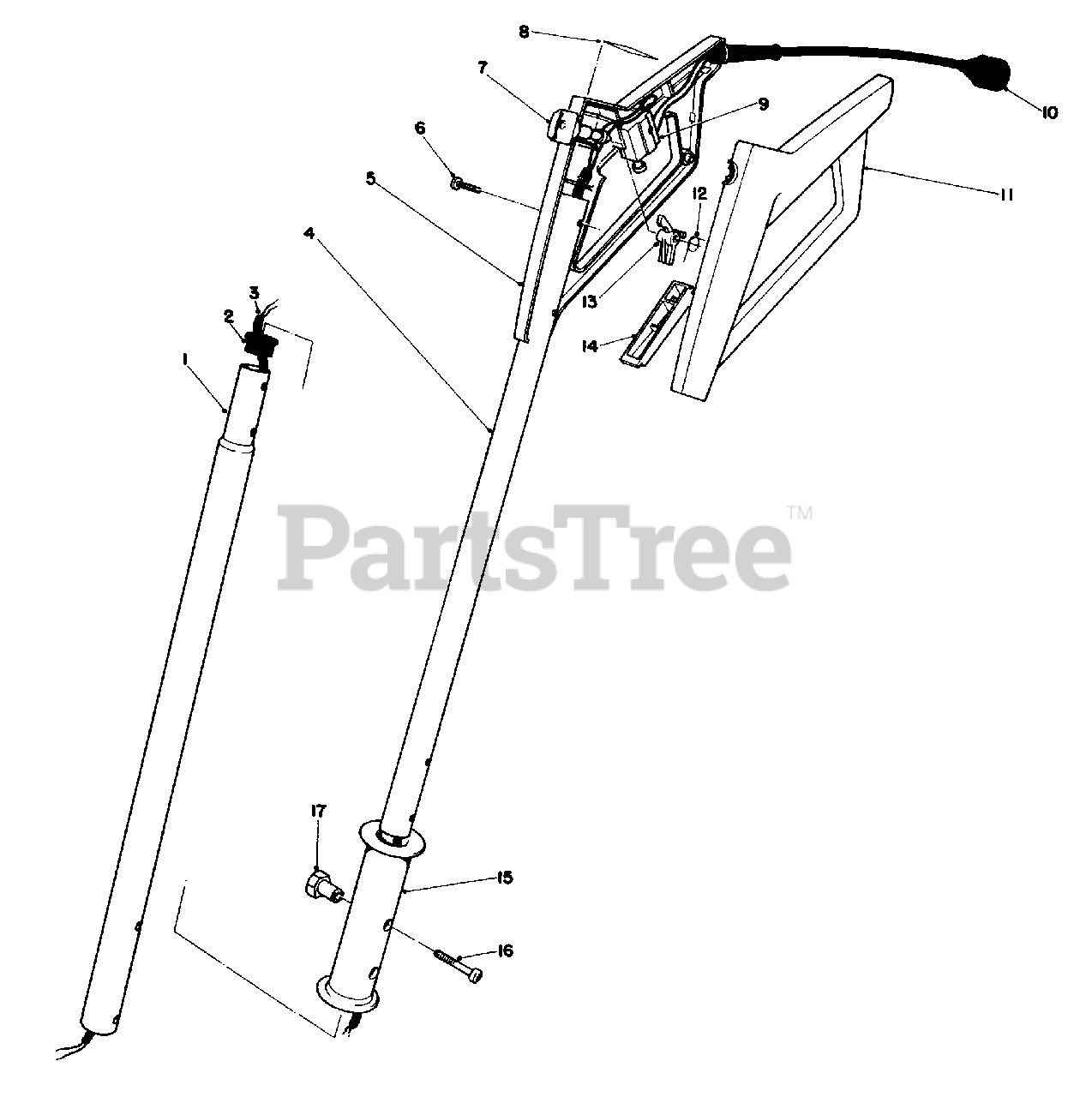

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 38-8290

Tube-Handle, Lower

$

$

Not available

2

Lawn-Boy 240-1

Bushing, Heyco

$

$

Not available

3

Lawn-Boy 38-8320

Wire Harness

$

$

Not available

4

Lawn-Boy 38-8280

Tube-Handle, Upper

$

$

Not available

5

Lawn-Boy 38-8270

Control Grip, R.H.

$

$

Not available

6

Lawn-Boy 32104-118

Plastite Screw

$

$

Not available

7

Lawn-Boy 38-8310

Key

$9.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 38-8340

Decal-Control Grip

$

$

Not available

9

Lawn-Boy 36-8340

Switch

$31.99

$

In Stock, only 3 left!

0

10

Lawn-Boy 38-8390

Cord, Supply
(Superseded to 42-0775)

$

$

Not available

11

Lawn-Boy 38-8260

Control Grip, L.H.

$

$

Not available

12

Lawn-Boy 38-8330

Spring

$

$

Not available

13

Lawn-Boy 38-8400

Lockout

$

$

Not available

14

Lawn-Boy 38-8410

Switch Bar

$

$

Not available

15

Lawn-Boy 38-8480

Handle Grip

$

$

Not available

16

Lawn-Boy 39-3720

Screw, Special

$

$

Not available

17

Lawn-Boy 39-3710

Nut, Hex Special

$

$

Not available
