38310 - Lawn-Boy Power Shovel Snow Thrower (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

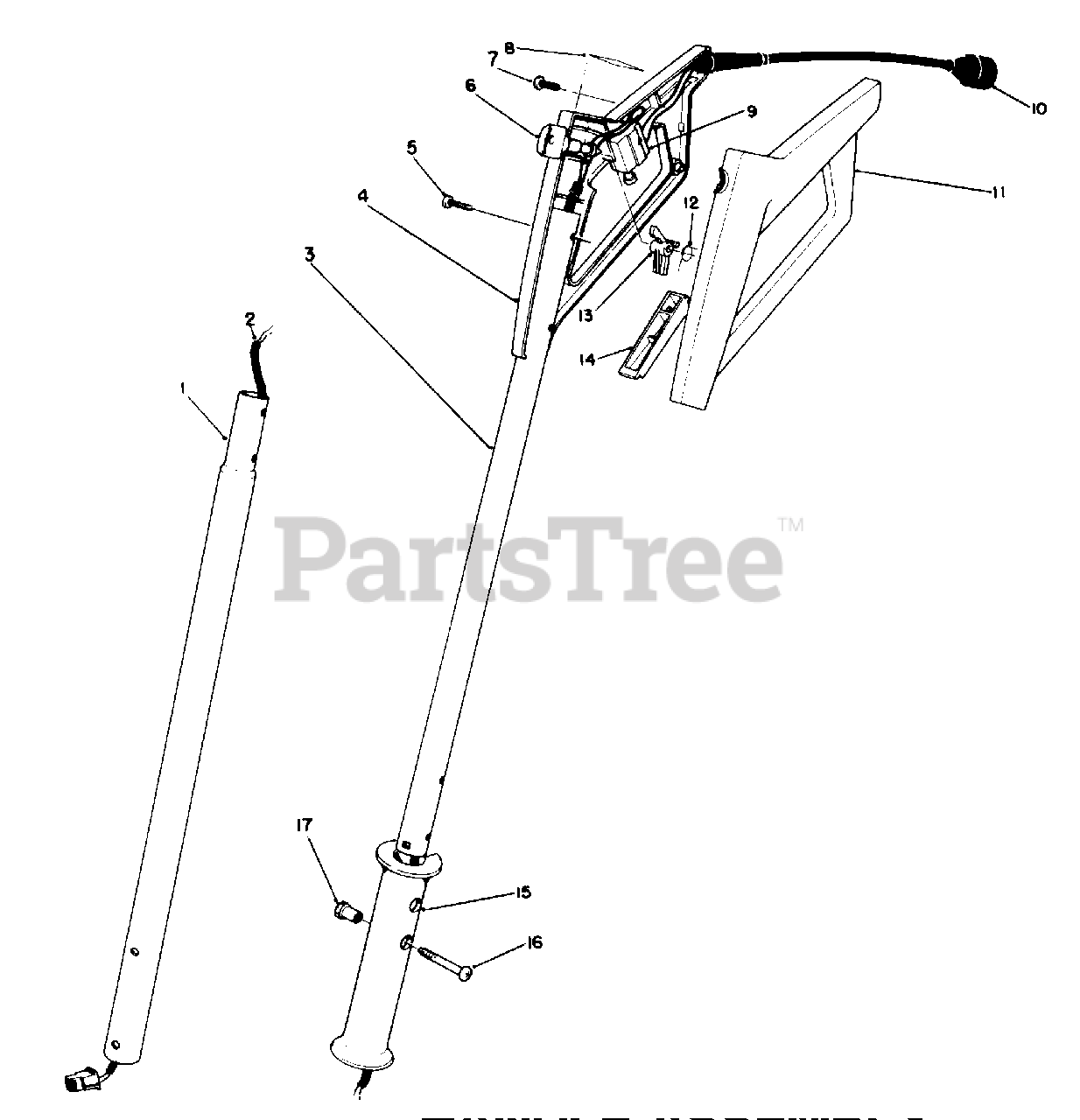

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 41-9850

Tube-Lower Handle

$

$

Not available

2

Lawn-Boy 56-6050

Wire Harness
(Superseded to 64-8800)

$

$

Not available

3

Lawn-Boy 41-9860

Tube-Upper Handle

$

$

Not available

4

Lawn-Boy 42-2830

Grip-Control R.H.
(Superseded to 42-2831)

$

$

Not available

5

Lawn-Boy 32104-121

Screw-Pan Head
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 38-8310

Key

$9.49

$

In Stock, only 1 left!

0

7

Lawn-Boy 32104-118

Screw-Pan Head

$1.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 38-8340

Decal-Control Grip

$

$

Not available

9

Lawn-Boy 36-8340

Switch

$25.99

$

In Stock, Qty 5

0

10

Lawn-Boy 42-0770

Cord-Supply
(Superseded to 42-0775)

$

$

Not available

11

Lawn-Boy 42-2840

Grip-Control L.H.
(Superseded to 42-0040)

$

$

Not available

12

Lawn-Boy 38-8330

Spring

$

$

Not available

13

Lawn-Boy 41-9870

Lockout

$8.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 42-2870

Switch Bar

$

$

Not available

15

Lawn-Boy 41-9880

Grip-Handle

$

$

Not available

16

Lawn-Boy 39-3720

Screw-Pan Head Special

$

$

Not available

17

Lawn-Boy 39-3710

Nut-Hex Special

$

$

Not available

Lawn-Boy 60-9650

Loose Parts

Note: Not Illustrated

$

$

Not available
