38315 - Toro Power Shovel Snow Thrower (SN: 002000001 - 002999999) (1982)

Power Shovel Snow Thrower

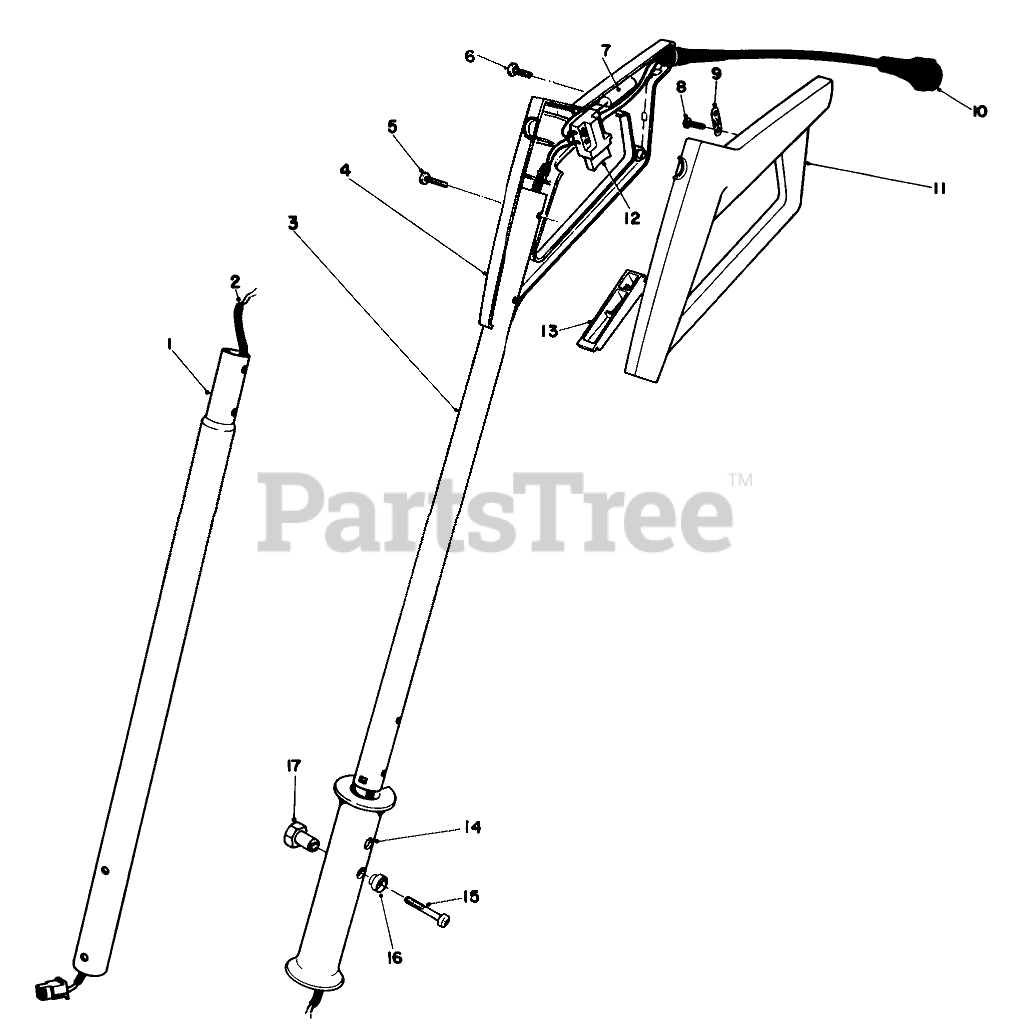

38315 - Toro Power Shovel Snow Thrower (SN: 002000001 - 002999999) (1982) > Parts Diagrams (2) > HANDLE ASSEMBLY

  • Title
41-9850

1

LOWER TUBE, P. SHOVEL

Part# 41-9850

OEM Warranty Repair Part for Toro

Not available

42-2650

2

Wire Harness

Part# 42-2650

OEM Warranty Repair Part for Toro

Not available

41-9860

3

Tube-Upper Handle

Part# 41-9860

OEM Warranty Repair Part for Toro

Not available

43-8570

4

Grip-Control R.H.

Part# 43-8570

OEM Warranty Repair Part for Toro

Not available

32104-121

5

Screw

Part# 32104-121 (Superseded to 94-4496)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

32104-118

6

SCREW-PPH

Part# 32104-118

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.02

42-3500

7

CAPACITOR

Part# 42-3500

OEM Warranty Repair Part for Toro

Not available

32144-33

8

Screw, Pan Head

Part# 32144-33

OEM Warranty Repair Part for Toro

Not available

42-2510

9

Clamp-Power Cord

Part# 42-2510

OEM Warranty Repair Part for Toro

Not available

42-2640

10

Power Cord-Upper Wiring Harness

Part# 42-2640

OEM Warranty Repair Part for Toro

Not available

43-8580

11

LH CONTROL GRIP

Part# 43-8580

OEM Warranty Repair Part for Toro

Not available

43-8560

12

Switch

Part# 43-8560

OEM Warranty Repair Part for Toro

Not available

42-2480

13

Switch Bar

Part# 42-2480

OEM Warranty Repair Part for Toro

Not available

41-9880

14

Grip-Handle

Part# 41-9880

OEM Warranty Repair Part for Toro

Not available

39-3720

15

SPEC PAN HD SCREW

Part# 39-3720

OEM Warranty Repair Part for Toro

Not available

42-4360

16

Bushing-Screw

Part# 42-4360

OEM Warranty Repair Part for Toro

Not available

39-3710

17

SPECIAL HEX NUT

Part# 39-3710

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.49
