38315 - Toro Power Shovel Snow Thrower (SN: 002000001 - 002999999) (1982)

Power Shovel Snow Thrower

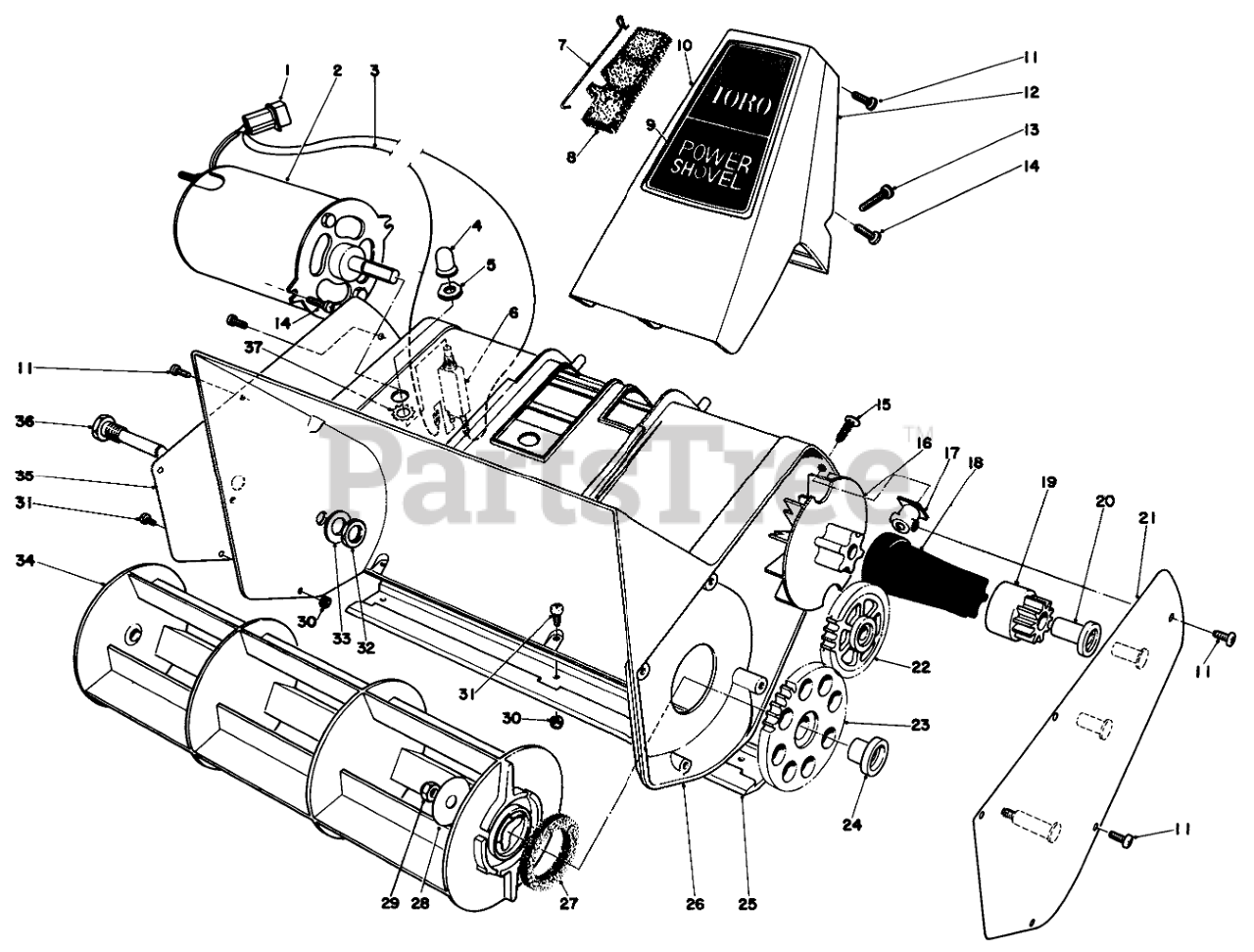

38315 - Toro Power Shovel Snow Thrower (SN: 002000001 - 002999999) (1982) > Parts Diagrams (2) > ROTOR HOUSING ASSEMBLY

  • Title
218-520

1

Pin Housing

Part# 218-520

OEM Warranty Repair Part for Toro

Not available

42-2710

2

Motor

Part# 42-2710

OEM Warranty Repair Part for Toro

Not available

42-2670

3

WIRE ASS'Y

Part# 42-2670

OEM Warranty Repair Part for Toro

Not available

218-518

4

Circuit Breaker Seal

Part# 218-518

OEM Warranty Repair Part for Toro

Not available

218-523

5

Hex Nut

Part# 218-523

OEM Warranty Repair Part for Toro

Not available

42-2660

6

Circuit Breaker (Incl. Ref. #5)

Part# 42-2660

OEM Warranty Repair Part for Toro

Not available

42-2910

7

RETAINER - FILTER

Part# 42-2910

OEM Warranty Repair Part for Toro

Not available

42-0050

8

FOAM FILTER

Part# 42-0050

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.33

41-9840

9

HANDLE SUPT DECAL

Part# 41-9840

OEM Warranty Repair Part for Toro

Not available

42-2850

10

HANDLE SUPPORT, FRONT

Part# 42-2850

OEM Warranty Repair Part for Toro

Not available

32104-118

11

SCREW-PPH

Part# 32104-118

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.02

42-2860

12

Handle Support-Back

Part# 42-2860 (Superseded to 16-9389)

OEM Warranty Repair Part for Toro

Not available

3250-20

13

SCREW-PPH

Part# 3250-20

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.92

32144-36

14

SCREW-PPH

Part# 32144-36

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

42-0250

15

XMAS TREE FASTENER

Part# 42-0250

OEM Warranty Repair Part for Toro

Not available

41-9820

16

FAN, POWER SHOVEL

Part# 41-9820

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $26.73

42-0060

17

MTG BLOCK

Part# 42-0060

OEM Warranty Repair Part for Toro

Not available

38-8570

18

DRIVE COUPLING

Part# 38-8570

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.23

42-0240

19

Drive Gear (Incl. Ref. #20)

Part# 42-0240

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $43.36

42-0010

20

BUSHING, DRIVE GEAR

Part# 42-0010

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $19.98

41-9910

21

Gear Carrier

Part# 41-9910

OEM Warranty Repair Part for Toro

Not available

41-9940

22

Idler Gear

Part# 41-9940

OEM Warranty Repair Part for Toro

Not available

42-0230

23

Rotor Gear (Incl. Ref. #24)

Part# 42-0230

OEM Warranty Repair Part for Toro

Not available

41-9890

24

BUSHING, ROTOR GEAR

Part# 41-9890

OEM Warranty Repair Part for Toro

Not available

41-9830

25

Scraper

Part# 41-9830 (Superseded to 99-5386)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.50

42-2611

26

Housing

Part# 42-2611

OEM Warranty Repair Part for Toro

Not available

38-8580

27

FELT WASHER

Part# 38-8580

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.67

42-0070

28

ROTOR WASHER

Part# 42-0070

OEM Warranty Repair Part for Toro

Not available

3296-13

29

NUT-LOCK, NI

Part# 3296-13

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.01

3296-54

30

NUT-LOCK

Part# 3296-54

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.34

3250-19

31

SCREW-PPH

Part# 3250-19

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.34

32146-21

32

3/8 24 JAM NUT

Part# 32146-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.73

3256-24

33

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.50

38-8170

34

ROTOR

Part# 38-8170

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $67.87

41-9960

35

RT. SIDE COVER (RAW)

Part# 41-9960

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.81

38-8210

36

ROTOR PIN

Part# 38-8210

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.74

3255-16

37

WASHER-LOCK/EXT

Part# 3255-16

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.66

3290-381

TIE-CABLE

Part# 3290-381

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.67
